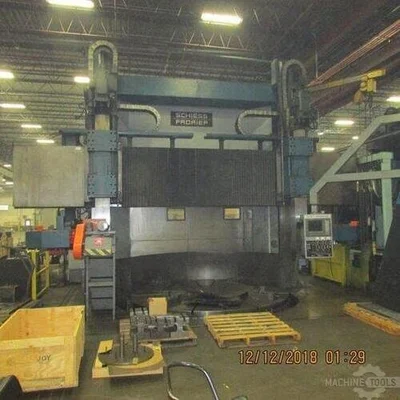

USED SCHIESS 40DS 350/4000

Fanuc 16 TT-B CNC Control
2 Vertical Rams on the Crossrail
Vertical Boring Head
Live Spindle – Table C AxisTable Turn Speed (2 step) 0.9 - 90 rpm
Hydrostatic Faceplate Bearing Assembly

Manufacturer: Schiess
Model: 40DS 350/4000
Condition: Used
Stock Number: 10582
Retrofit: 1997
Table diameter: 3,500 mm
Swing: 4,000 mm
Turning height: 2,500 mm
Table capacity: 40 Ton
Table turn speed: 90 rpm
Live spindle speed: 1,600 rpm
Z axis travel: 1,600 mm
W axis travel: 2,000 mm
X axis travel: 2,660 mm
Table turn speed milling: 0.45 - 1.8 rpm
Table drive: 100 kW
Travel speed: 0.1 - 6,000 mm/min
Table rotary feed: 0.01 - 6,000 mm/min
Rapid traverse of tool holder: 6,000 mm/min
Cross rail speed: 450 mm/min
