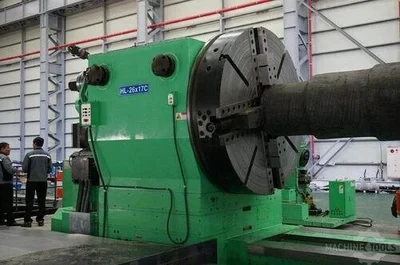

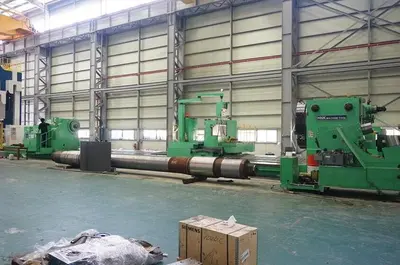

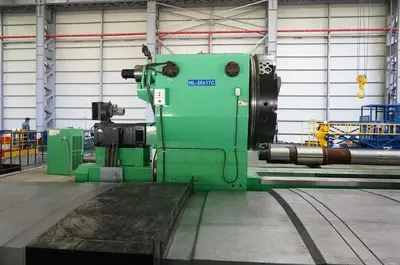

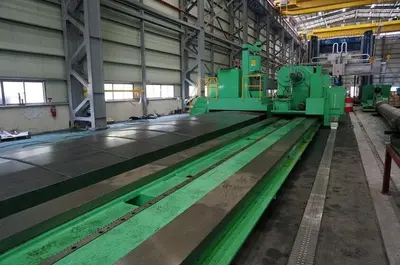

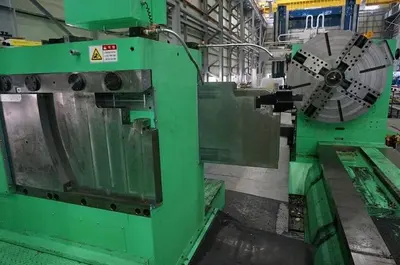

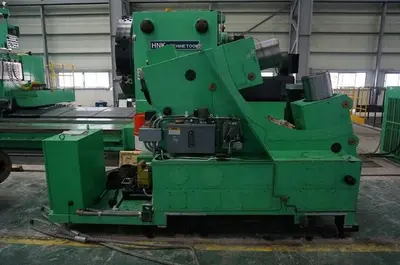

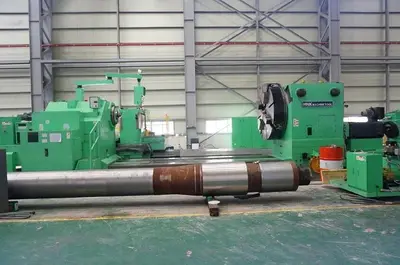

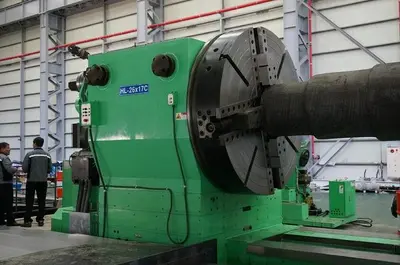

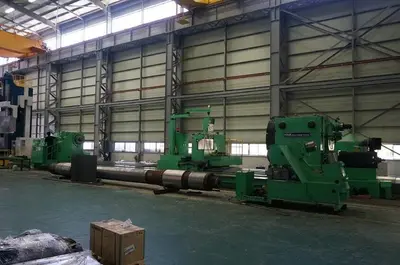

USED 2013 HNK HL 26 X 17C

Fanuc 18iMB CNC Control System
Tail Stock With Live Spindle
Two Carriages
Carriage 1 For Turning
Carriage 11 For Milling with Thru-Spindle Coolant
One Roller Type 2-Point Steady Rest
External Coolant System
Hydraulic Power Unit
Lubrication Unit With Cooler and Heater
Oil Cooler For Headstock and Tailstock

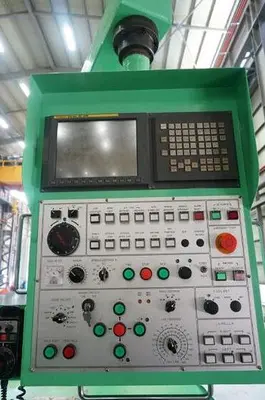

Operation Panel (pendant type)
Work light & Patrol Lamp (3 colors –red/yellow/green)
Telescopic Steel Cover
Chip Conveyor (Hinge Type) & Chip Bucket

Manufacturer: HNK
Model: HL 26 x 17C
Year: 2013
Condition: Used
Stock Number: 10996
Between centers: 17,000 mm
Capacity between centers: 100 Ton
Swing over bed: 2,600 mm
Tailstock diameter: 650 mm
Center height: 1,600 mm
Drive output: AC 171 kW
Main spindle bearing diameter: 630 mm
External clamping range: 400 - 1,650 mm
Outside diameter: 2,000 mm
1st step: 0.5 - 8.9 - 26.8 rpm
2nd step: 2.5 - 46 - 152 rpm
Max torque of faceplate: 200,000 Nm
Angle of flanged center with taper: 1/10 Deg 75 Deg
C-axis drive motor power: 4 kW
Fine adjustment drive for positioning of faceplate (c-axis): 0.002 Degree
Clamping method of faceplate after indexing: Hydraulic Clamping
Number of clamp jaws: 4
Type of power screw: JAKOB MSPD160
Travel of tailstock quill: 150 mm
Rapid traverse speed of quill (high/low): 70 / 35 mm/min
Rapid traverse speed of tailstock on bed (high/low): 2,000 / 1,000 mm/min
