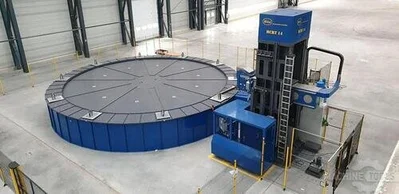

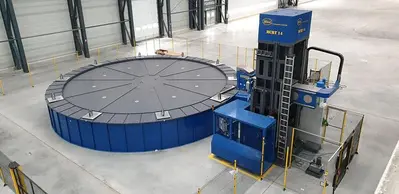

USED 2017 MIBA MCRT 14

Siemens CNC ControlHydraulic UnitCooling UnitLive Spindle

Manufacturer: Miba
Model: MCRT 14
Year: 2017
Condition: Used
Stock Number: 11037
Table diameter: 13,000 mm
Turning height: 4,000 mm
Table capacity: 50 Ton
Table turn speed: 40 rpm
Live spindle speed: 3,000 rpm

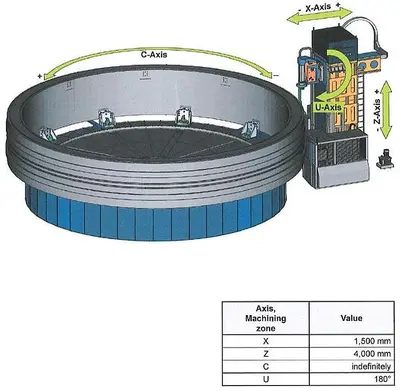

Z axis travel: 4,000 mm
X axis travel: 1,500 mm
U axis: 180°
C axis: Indefinitely
Spindle diameter - milling: 130 mm
Spindle drive motor: 30 kW
Live spindle taper: HSK 100C
Electrics: 3 x 400 VAC, 50 HZ, 315A, 150 kW
Machine dimensions: 13 x 13 x 4.5 m
Machine weight: 101 Ton
