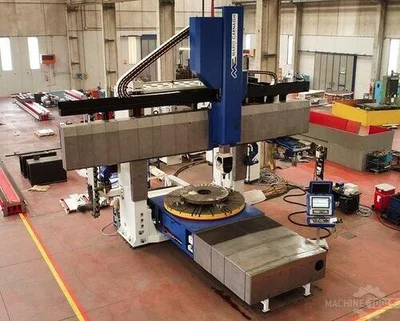

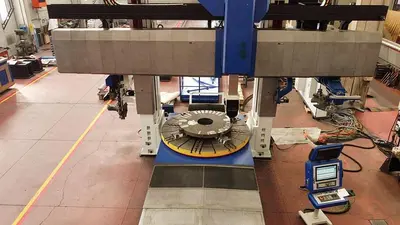

USED 2023 MARIO CARNAGHI TGP 25/3000 HDD
Overview
Description

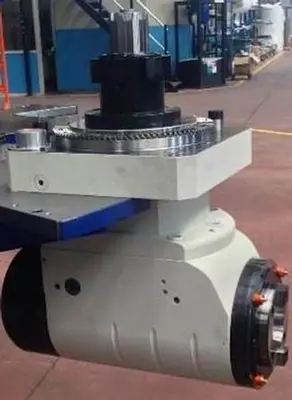

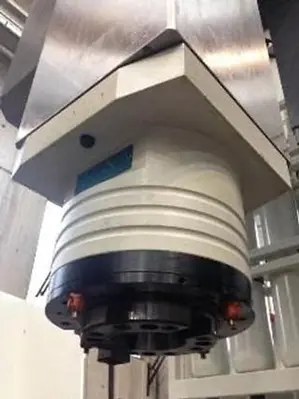

NEW Machine Available ImmediatelySiemens SINUMERIK 840D SL CNC ControlLive Spindle 41 kW 1,752 Nm 2 Ranges 0 - 4,000 rpm40 Position Automatic Tool Changer - SK 506 Position Magazine Head Changer1 Vertical Milling & Drilling Attachment with SK50 Rotating Tools - 4,000 rpm (41 kW - 1,752 Nm)1 Horizontal Milling & Drilling Attachment with SK50 Rotating Tools - 2,500 rpm (41 kW - 1,752 Nm)Chip ConveyorThe frame is composed by the following items: the bed the moving table the columns the movable cross-rail the fix cross rail nr.2 - 2-range gearboxCNC-controlled vertical ram head for turning operations, with 1.500 mm ram head strokeCNC-Numerical Control “SIEMENS SINUMERIK 840D SL” for the control of 4 axes (“X”, “Z”, “Y”, “C” - “A” axis indexed offered as optional)Cross-rail accurate alignment and repeatability deviceSteel telescopic covers on cross-rail, bed and columnsHydraulic ram balancingLubrication and hydraulic systemsTool cooling equipmentProtection guards
Specifications
Manufacturer: Mario Carnaghi
Model: TGP 25/3000 HDD
Year: 2023
Condition: Used
Stock Number: 11038
Table diameter: 2,500 mm
Swing: 3,000 mm
Turning height: 2,000 mm
Table capacity: 35 Ton
Table turn speed: 180 rpm
Live spindle speed: 4,000 rpm
Z axis travel: 1,500 mm
W axis travel: 1,200 mm (Indexing every 200 mm)
X axis travel: -1,500 / +2,000 mm
Live spindle motor: 41 kW
Spindle taper: SK 50
Ram size: 250 x 250 mm
