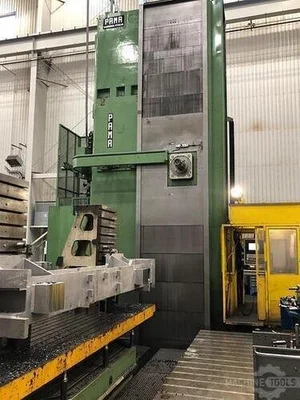

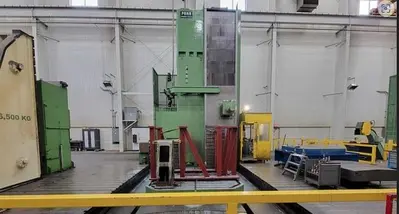

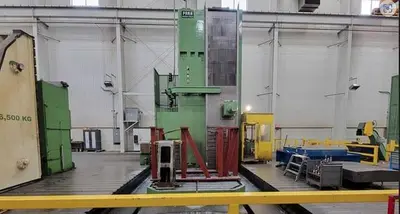

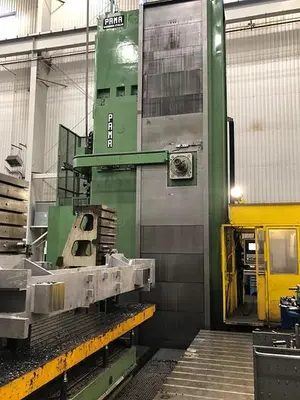

USED PAMA ACC 200/530
Overview
Description

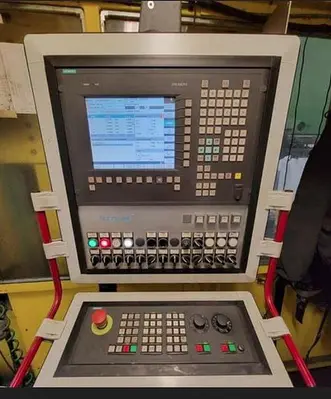

Siemens 840-D SL CNC Control Fully Rebuilt & Retrofitted in 201580 Position Automatic Tool Changer3 Station Automatic Attachment ChangerRight Angle Head With 5-Degree IndexingStraight Nose Speed Multiplier Up To 3000 rpmCoolant Thru SpindleThe Main Head Balance is with Hydraulic cylinder and accumulator The Machine Is All Hydrostatic Axis The Machine has a Totem For Automatic Pick Up Of The Heads One Vertical Milling Head indexableOne D’Andrea CNC Facing Head UT- 5-800-S One Speed Head Multiplayer Ratio 3:1 One Ram Cover with Outside coolant nozzle . U Axis D’Andrea CNC Head UT-5-800S 400 mm /15.748”Q Axis ATC Tool Carriage 20.000 mm / 787.400” Travel Speed Rotary Table 3500 x 3500 mm x 2000 Travel x 100 TonOperator Platform
Specifications
Manufacturer: Pama
Model: ACC 200/530
Condition: Used
Stock Number: 10880
Spindle diameter: 200 mm
Spindle speeds: 1,200 rpm
X axis travel: 13,500 mm
Y axis travel: 6,000 mm
Z axis travel: 1,500 mm
Table dimensions: 3,500 x 3,500 mm
W axis travel: 900 mm
Ram dimension: 530 x 600 mm
Spindle gear change: 4
Spindle diameter - milling: 250 mm
Spindle taper: ISO 50
Spindle motor power: 75 kW
Rapid traverse: 10,000 mm/min
Feeds: 6,000 mm/min
V axis table infeeding travel: 2,000 mm
B axis: 360 Deg. @ 1.5 rpm
Table load capacity - balance on center: 100 Ton
