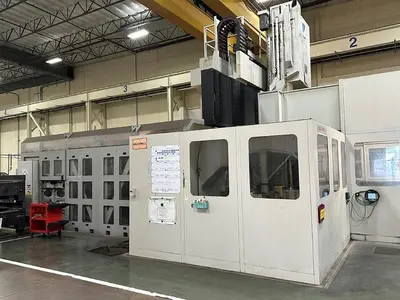

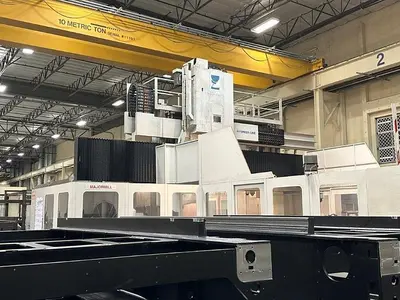

Forest Line MajorMill 350TA CNC Bridge Type Milling Machine with 2 Tables
Overview

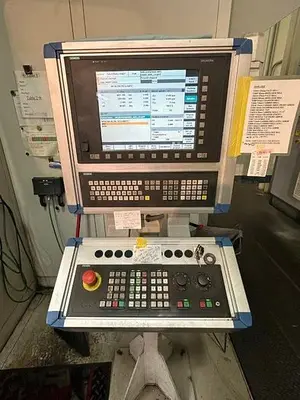

SIEMENS 840D SL CNC CONTROL

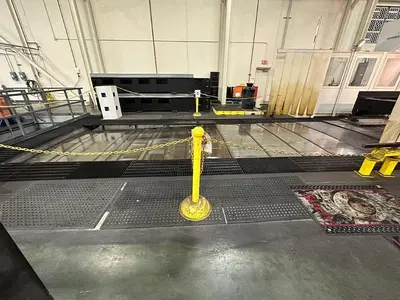

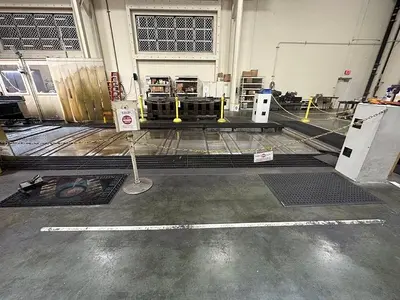

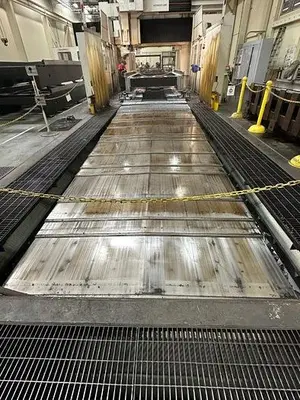

2 CAST IRON TABLES - (each 6,000 x 2,750 mm)
200 POSITION AUTOMATIC TOOL CHANGER

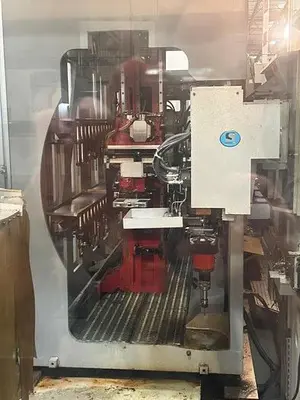

STORAGE OF SPINDLE UNITS (5 STATIONS)
EXTERNAL AND THROUGH SPINDLE COOLANT SYSTEM

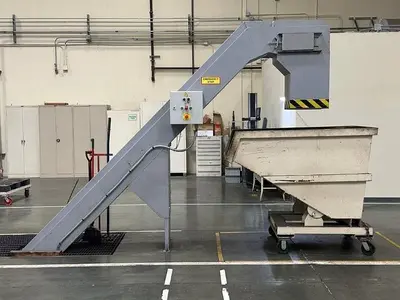

2x CHIP CONVEYORS
ENCLOSURE OF THE WORKING AREA
TOOL MANAGEMENT AND IDENTIFICATION BALUFF
TOOL BREAKAGE CONTROL RENISHAW TS20
TOUCH PROBE RENISHAW RMP60
AUXILIARY PANEL SIEMENS HT8
WIRELESS HANDWHEEL HUBITRON
AUTOMATION OF THE HOUSING BARRIERS
VIDEO SYSTEM WITH 4 CAMERAS
COALESCENT OIL SEPARATOR OPTIONAL EQUIPMENTS
SMOKE EXHAUST DEVICE / CONNECTED ROOF
TOOL CONTROL AND BREAKAGE LASER BEAM BLUM NT
ANTI-COLLISION SYSTEM UNDER CROSS RAIL
DISTANCE UNDER MILLING SPINDLE 2,600 mm
DISTANCE BETWEEN TABLE & UNDER CROSSRAIL 3,000 mm
X-AXIS TRAVEL (DOUBLE TABLE) 13,300 mm
X-AXIS TRAVEL (SINGLE TABLE) 6,500 mm
SPINDLE ATTACHMENTS:
VERTICAL SPINDLE (B8-856-01996B)
TYPE: BV 40
POWER: 40 kW
TORQUE: 1530 NM
MAX. SPINDLE SPEED: 6000 RPM
UNIVERSAL SPINDLE: (B8-856-01997C)
TYPE: RU SPECIAL
POWER: 20 kW
MAX. SPINDLE SPEED: 2000 RPM
POSITIONING INCREMENT: 5 DEGREE
RIGHT ANGLE SPINDLE (B8-856-01995C)
TYPE: RE 40 LONG
POWER: 40 Kw
MAX. SPINDLE SPEED: 6000 RPM
RIGHT ANGLE SPINDLE: (B8-856-01998B)
TYPE: RE 15
POWER: 15 kW
MAX. SPINDLE SPEED: 6000 RPM
Specs
Manufacturer: Forest Line
Year: 2011
Condition: Used
Stock Number: 11082
Between columns: 3,500 mm
Machining height: 2,600 mm
X axis travel: 13,300 mm
Y axis travel: 4,000 mm
Z axis travel: 1,500 mm
Table size (x2): 6,000 x 2,750 mm
Table capacity: 20 Ton (30 Ton with coupled tables)
W axis travel: 1,500 mm (6 Positions - 250 mm each)
Milling head (FA 315 C): 425 x 425 mm
Spindle taper: ISO 50
C axis: N x 360°
A axis: N x 360°
Feed speed X/Z axes: 30 m/min
Feed speed Y axis: 40 m/min
Feed speed W axis: 1 m/min
Machine dimensions: 33.1 x 10.43 x 8.045 m
Machine weight: 155 Ton
