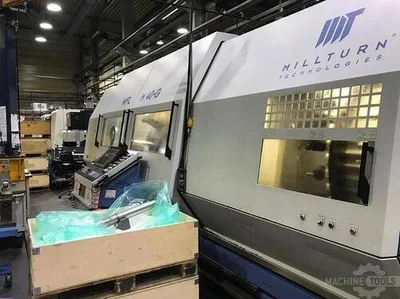

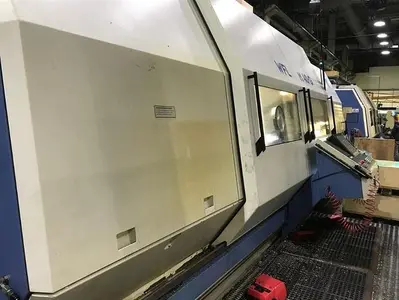

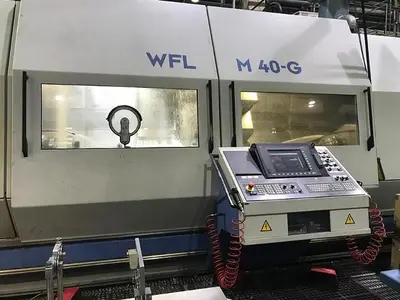

USED 2006 WFL MILLTURN M 40 G X 3000
Overview
Description

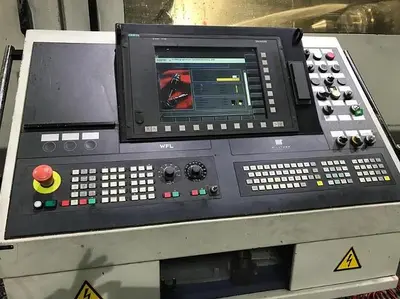

SIEMENS 840 D CNC ControlLeft and Right Spindle with Power Chuck SMW 315 mmSteady Rest SMWBotton Saddle with 12-fold revolverC-axis with 0.001° indexingY-axis -100/+150 mmB-axis -110/+110°100 Position Automatic Tool ChangerWorkpiece Measuring Device M+HCoolant Device with Through Spindle CoolantChip ConveyorSpindle Turning Speed Range 3 - 4,000 rpmMilling Head Speed 1 - 9,000 rpm
Specifications
Manufacturer: WFL
Model: MillTurn M 40 G x 3000
Year: 2006
Condition: Used
Stock Number: 11091
Turning length: 3,000 mm
Turning diameter: 520 / 350 mm
Chuck speed: 4,000 rpm
Milling head speed: 9,000 rpm
Z axis travel: 3,150 mm
X axis travel: 600 mm
Spindle bore: 77 mm
Spindle drive: 33 kW
Milling spindle drive: 27 kW
Tool taper: HSK 63
Rapid traverse longitudinal: 40 m/min
Rapid traverse cross: 30 m/min
Total power requirement: 105 kW
Machine dimensions: 9.3 x 4.15 x 3.25 m
Machine weight: 24 Ton
