USED PARKER-HANNIFIN 120 T
Overview

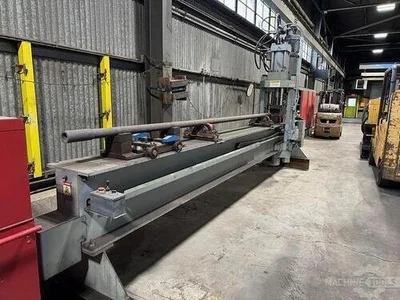

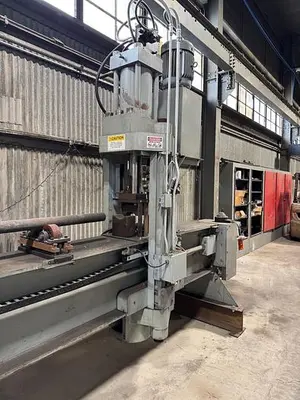

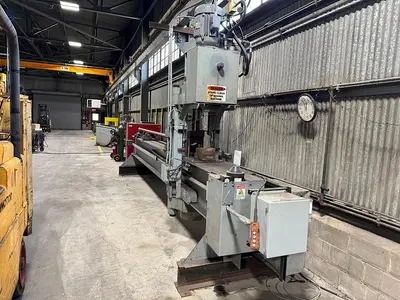

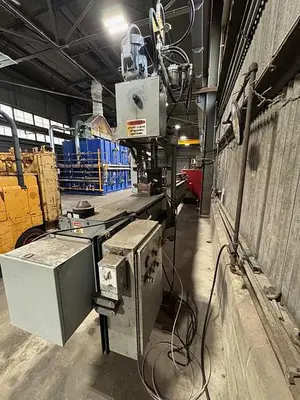

120 Ton HPM / Parker - Hannifin Twin Column Hydraulic Straightening Press
Movable fixturing that can move with the head or disengage from the head has been added
2-Axis Traveling Gantry Type
All Steel Weldment Construction
Complete Hydraulic System with Reservoir
Complete Electrical Controls with Operator Station
Variable Speed Motorized Gantry Travel
Complete 7.5 HP Hydraulic System (Gantry Mounted)
Ram Nose Adapter
Specs
Manufacturer: Parker-Hannifin
Model: 120 T
Condition: Used
Stock Number: 11128
Pressing capacity: 120 Ton @ 3380 PSI
Pressing Zone: 96" Between Supports @ 100% Capacity
Ram stroke: 11"
Ram diameter: 4.5"
Distance between columns: 18"
Column diameters (2): 3.5"
Bed Size: 15" F-b, 240" L-R
Pressing cylinder diameter: 9.5"
X axis gantry travel: 210" L-R
X axis gantry travel speeds: 0 - 430 ipm
Daylight opening (ram nose to bed): 18"
Bed Height: 32"
Ram nose mounting: Removable Clamp Type
Machine dimensions: 3.5' x 20' x 8'
Machine weight: 9,000 lb
Gantry travel: Motorized cable drive
Z axis ram speeds: Advance - 65 ipm, Pressing - 0-9 ipm, Return - 85 ipm
Electrics: 240 / 480 VAC / 3 Ph / 60 Cy
