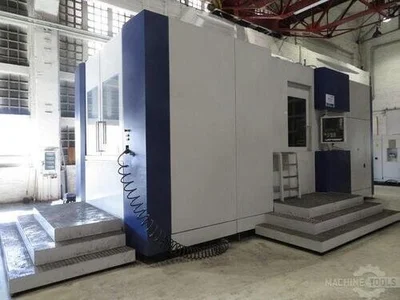

USED 2018 SCHIESS HORIMILL 100
Overview
Siemens 840D CNC Control
60 Position Automatic Tool Changer
NC – Rotary Table With Torque Motor Drive
2 Automatic Pallet Changer
Spindle Oil Cooler
Internal Cooling System
Chip Conveyor
Specs
Manufacturer: Schiess
Model: Horimill 100
Year: 2018
Condition: Used
Stock Number: 10617
X axis travel: 1,700 mm
Y axis travel: 1,400 mm
Z axis travel: 1,500 mm
B axis travel: 50 U/min
Number of pallets: 2
Size of pallet: 1,000 x 1,000 mm
Maximum table load: 3,000 kg
Max workpiece diameter: 1,700 mm
Tool bore: 100 HSK
Spindle speed range: 12,000 rpm
Spindle motor: 48 / 71 kW
Torque: 300 / 452 Nm
Number of tool stations: 60
Tool diameter: 125 / 275 mm
Maximum tool length: 600 mm
Tool weight: 35 kg
Tool changing time: 3.5 sec
Rapid traverse: 40 m/min
Acceleration: 4 m/s²
Total power requirement: 120 kW
Floor space required - machine: 9 x 5 x 4.5 m
Weight of the machine, approximate: 36 Ton
