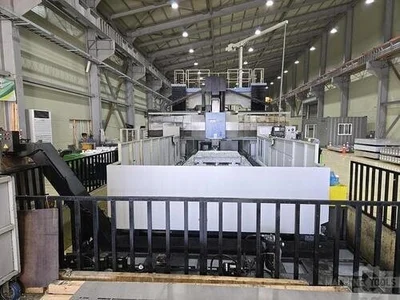

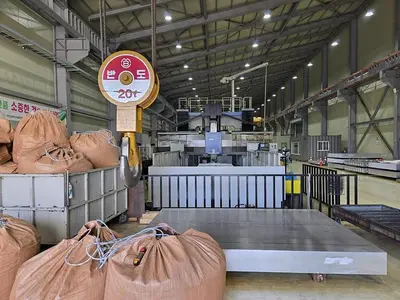

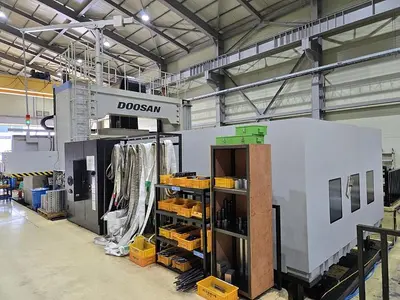

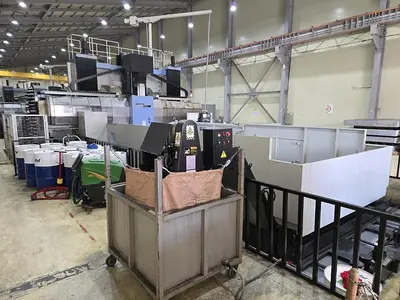

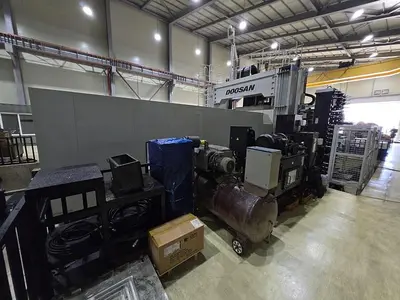

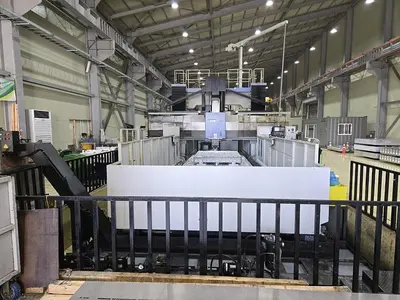

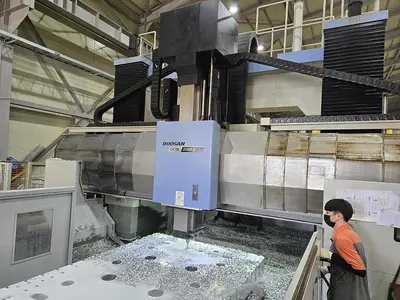

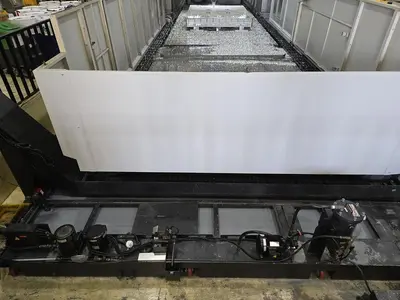

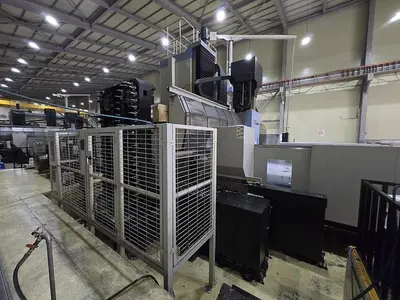

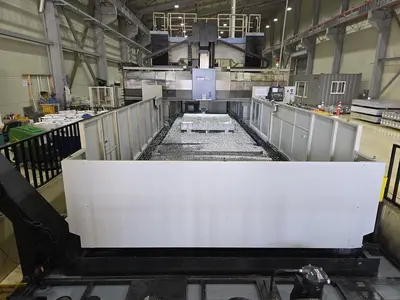

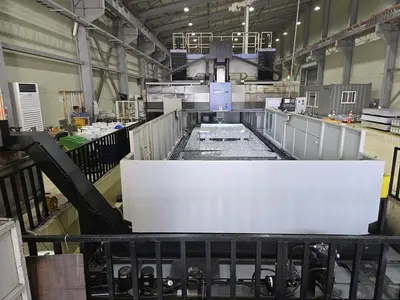

USED 2019 DOOSAN DCM 3780F II
Overview

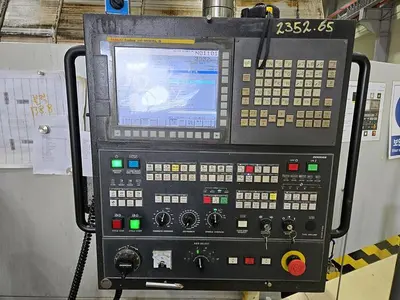

Fanuc 31iB CNC Control

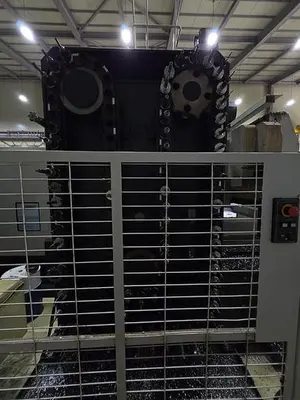

90 Position Automatic Tool Changer
Through Spindle Coolant (TSC) 20 Bar
3 Station Automatic Attachment Changer
90-degree Angle Head
Extension Head 400mm
Linear Scale for X,Y,Z,W-axes
Chip Conveyors. 2 Side
Splash Guard (semi cover + rear top cover)
Auto. Tool Length Measurement
High Column
Specs
Manufacturer: Doosan
Model: DCM 3780F II
Year: 2019
Condition: Used
Stock Number: 11130
Between columns: 3,700 mm
Spindle speeds: 6,000 rpm
Table to spindle nose: 2,350 mm
X axis travel: 8,250 mm
Y axis travel: 4,200 mm
Z axis travel: 1,000 mm
Table size: 3,200 x 8,100 mm
Table capacity: 45 Ton
W axis travel: 1,400 mm
Z + w axis (ram + crossrail): 2,400 mm
Ram size: 380 x 380 mm
Spindle drive motor: 25 / 22 kW
Taper Tool Shank: BT 50 (CAT 50)
Machine Size: 8730 x 19710 mm
Machine height: 6700 mm
Machine Weight approx.: 112,000 kg
