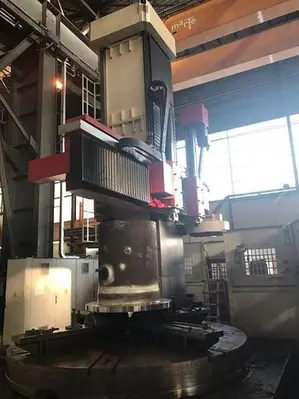

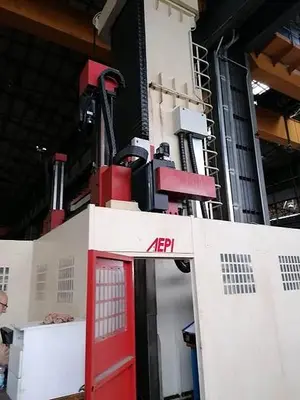

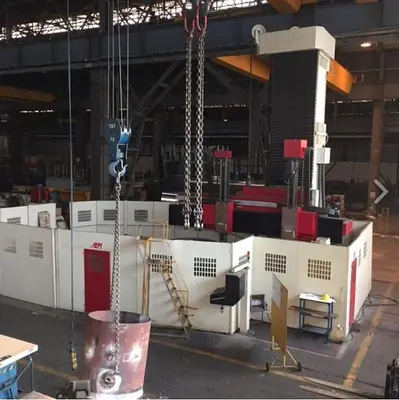

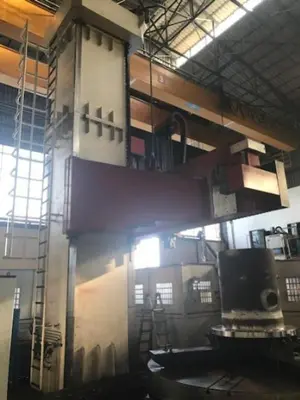

USED 2014 CAMU - AEPI 10 MT

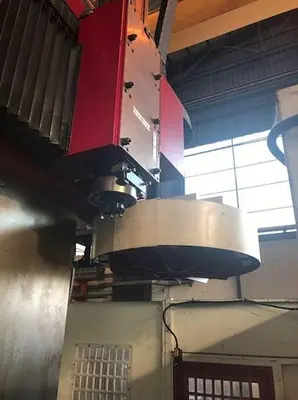

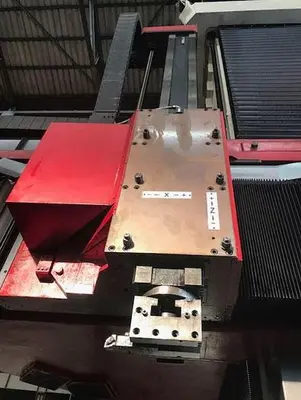

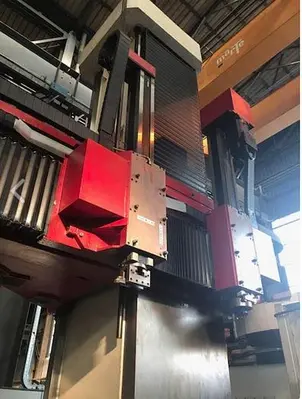

Fagor 8055 CNC ControlChip ConveyorSet of Boring Bar holders and 9 Turning Tool HoldersFAGOR Electronic handwheel for axis movement in manual changeover and touchespackage of 5 motorizations (4 axes and an ISO 50 drilling spindle)SIEMENS vector 100KW AC motor variable speed for platform spindle with 4 ranges up to 30 rpm maxHigh precision spindle center encoder for drilling(2) Two Automatic Tool Changer Carousels with 12 PositionsAutomatic door and air jetfor turning RAM with hydraulic cylinder tool coupling system with standard AEPI attachmentMilling and drilling spindle - tapping inside the second RAM carriage including the automatic ISO 50 tool attachmentFor interlocking in drilling and tapping with a maximum speed of 1500 rpm including precise positioning and locking of the spindle by means of an electro-hydraulic system with sliding jawsThis position includes the application of the 18 KW drilling spindle motor and related power supply and control equipment and the external refrigeration systemOperator protections and accident prevention equipment with 16 safety microswitchesTable Outriggers to support 10,000 mm diameter workpiece

Manufacturer: CAMU - AEPI
Model: 10 MT
Year: 2014
Condition: Used
Stock Number: 11150

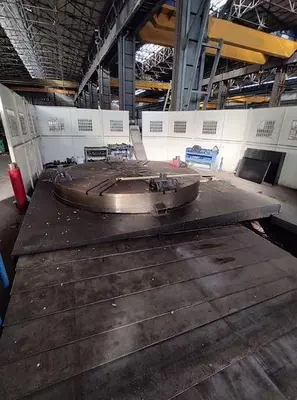

Table diameter: 3,400 mm (Includes Table Outriggers to support 10,000 mm diameter workpiece)
Swing: 10,000 mm
Turning height: 5,000 mm
Table capacity: 50 Ton
Table turn speed: 30 rpm
Dimensions, machine only: 12,800 x 5,800 x 8,000 mm
Motor power: 100 kW
Machine weight: 80 Ton
