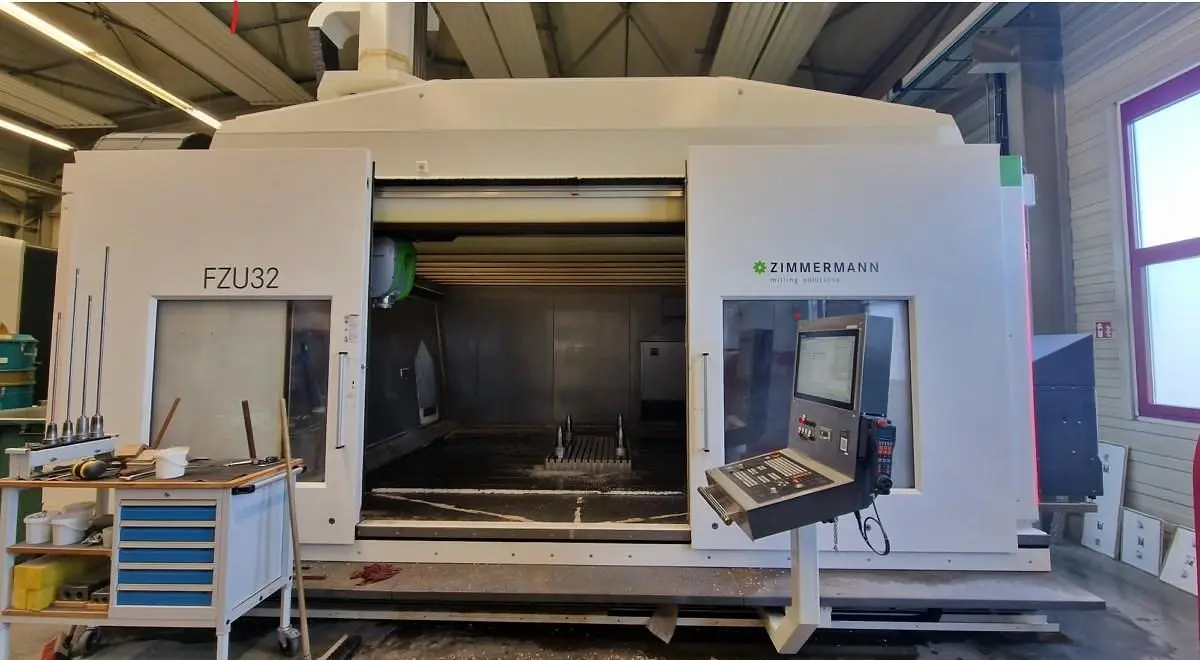

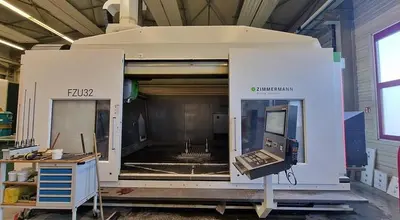

USED 2022 ZIMMERMANN FZU 32
Overview
The FZU32 is a remarkably compact 5-axis portal milling machine for machining aluminum machining of aluminum, fiber composites, plastics, ureol and steel.
steel. Thanks to the particularly rigid, newly developed center-guiding gantry, it can meet the increasing requirements in model, tool and mould making.
This thermo-symmetrical design makes the FZU32 less susceptible to adverse environmental conditions.
Heidenhain TNC CNC Control
5-Axis Machining
60 Position Automatic Tool Changer
Coolant IKZ 70 bar
Specs
Manufacturer: Zimmermann
Model: FZU 32
Year: 2022
Condition: Used
Stock Number: 11153
Spindle speeds: 24,000 rpm
X axis travel: 2,500 mm
Y axis travel: 3,500 mm
Z axis travel: 1,500 mm
Table dimensions: 2,500 x 3,500 mm
Table capacity: 6 Ton/m²
Spindle taper: HSK-A63
C axis: ±360°
Milling head swivable A: ±110°
Milling head swivable B: ±360°
Feed speed: 60 m/min
Spindle motor S6 (40% / 2 min): 41 kW
Spindle motor S1 (100% / 2 min): 34 kW
Spindle torque S6 (40% / 2 min): 49 Nm
Spindle torque S1 (100% / 2 min): 39 Nm
Machine weight: 74 Ton
Machine dimensions: 4 x 7.5 x 5.4 m
