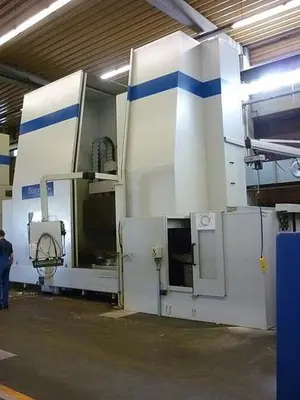

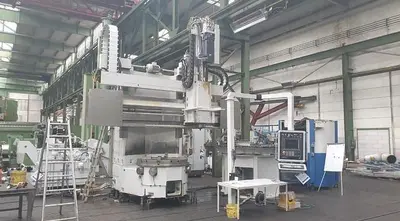

USED 1987 DORRIES VCE 200/140
Overview
Description

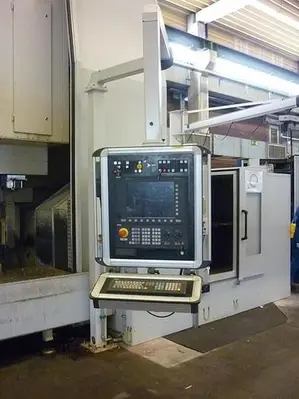

Machine Completely Rebuilt & Retrofitted in 2008Very Few Hours Since RebuildSiemens 840D CNC Control72 Position Automatic Tool ChangerLive Spindle & C-AxisAngular & Straight tool holder head with CAPTO taperTransmit functionComplete Splash HousingCoolant DeviceChip ConveyorDiverse accessories
Specifications
Manufacturer: Dorries
Model: VCE 200/140
Year: 1987
Condition: Used
Stock Number: 11173
Table diameter: 1,400 mm
Swing: 2,000 mm
Turning height: 1,270 mm
Table capacity: 6,000 kg
Table turn speed: 355 rpm
Live spindle speed: 3,000 rpm
Z axis travel ram stroke: 1,250 mm
W axis vertical cross rail adjustment: 800 mm (8 x 100 mm)
Milling motor: 37 kW
Spindle taper: ISO 50
Ram size: 240 x 240 mm
Main drive: 80 kW
Machine weight: 50 Ton
Total power requirement: 133 kVA
Machine dimensions: 11 x 5 x 6.4 m
