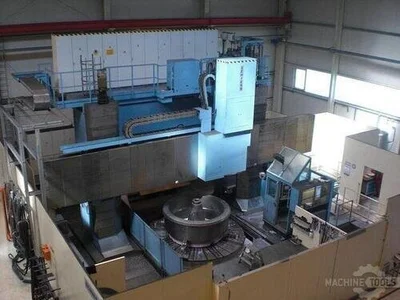

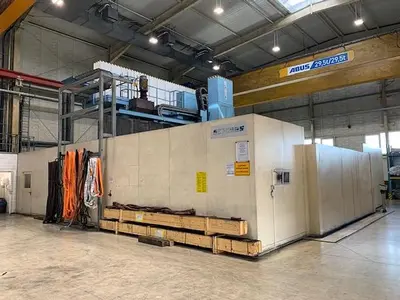

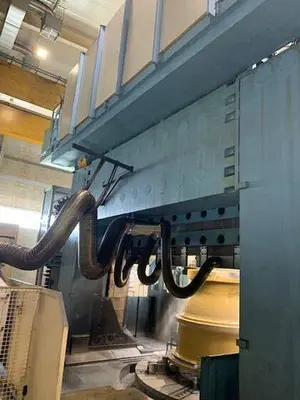

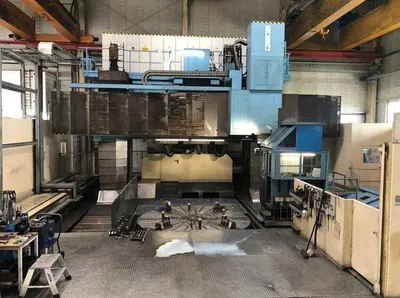

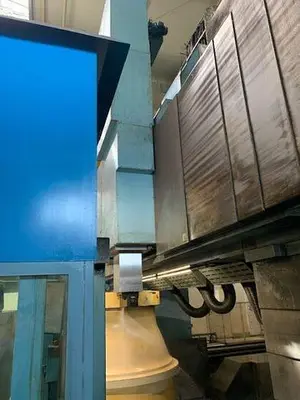

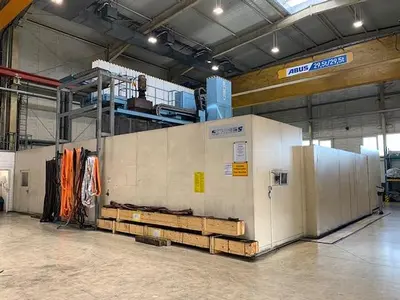

USED 2009 SCHIESS VERTIMASTER VMG 4
Overview

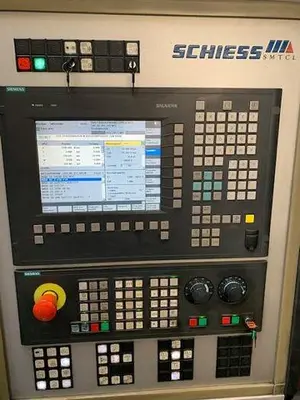

Siemens 840D CNC Control System
Y-Axis Gantry Travel Movable Columns
Live Spindle
C-Axis
80 Position Automatic Tool Changer
(AAC) Automatic Attachment Changer for 6 Milling Heads
Boring And Milling Head (Master Head – Principle
Straight Drilling & Milling Head GB-1B
Renishaw RBP 60 Probing System
Hand Held Terminal
Teleservice
Internal & External Coolant
Operator Control Cabin
Chip Conveyor
Working Area Machining Diameter 5,000 mm
Workpiece Height-Table Spindle Nose of Head 3000mm
Specs
Manufacturer: Schiess
Model: Vertimaster VMG 4
Year: 2009
Condition: Used
Stock Number: 11019
Table diameter: 4,000 mm
Turning diameter: 5,000 mm
Turning height: 3,000 mm Height can be increased when installing the machine
Table capacity: 50 Metric Ton
Table turn speed: 120 rpm
Gantry travel: 5,000 mm
Z axis travel: 2,000 mm
Ram size: 420 x 340 mm
Number of claw boxes: 8 Piece
Clamping force of each case: 12000 N
Table turn speed milling: 0 - 6 rpm
Max torque: 100 KnM
Main drive power: AC 110 kW
Max permissible cutting for turning: 60 kN
X,Z axis rapid traverse: 0 - 16,000 mm/min
Feed speed of the gantry: 0 - 16,000 mm/min
