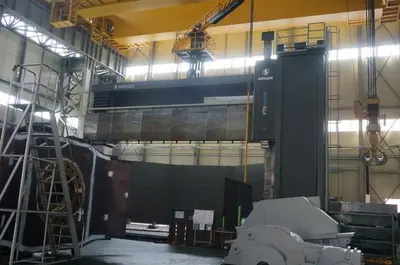

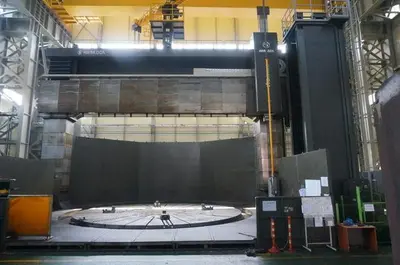

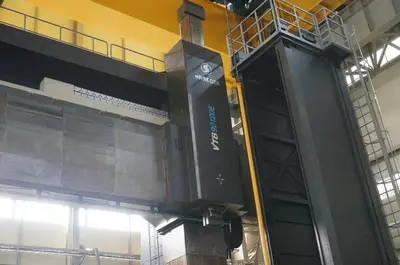

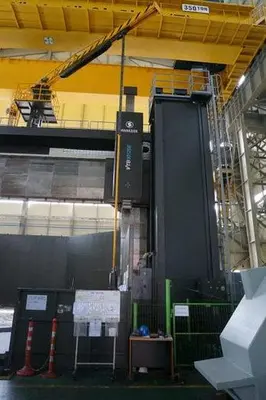

USED 2013 HANKOOK VTB-90/120

Manufacturer: Hankook
Model: VTB 90/120
Year: 2013
Condition: Used
Stock Number: 10447
Table diameter: 9,000 mm
Swing: 12,000 mm
Turning height: 6,000 mm
Table capacity: 400 Ton
Table turn speed: 16 rpm
Z axis travel: 6,915 mm
X axis travel: 3,000 mm
W axis travel: 4,500 mm
Square ram cross section: 500 x 500 mm
Tool shank size: 50 x 50 mm
Main spindle motor: AC 100 kW x 2 Each
Number of table speed range: Auto 2 Step
Maximum torque: 1,200,000 Nm
Maximum cutting force: 16,000 kgf
X,Z axis cutting feed: Max 6,000 mm
X,Z rapid traverse: 6,000 mm/min
W axis rapid traverse: 1,000 mm/min
X axis ac servo: 16 kW
Z axis ac servo: 14 kW
W axis ac servo: 14 kW x 2
Machine height: 17,500 mm
Floor space (w x l): 17,000 x 14,000 mm
Machine weight: 600 ton
