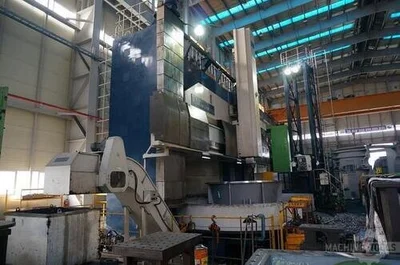

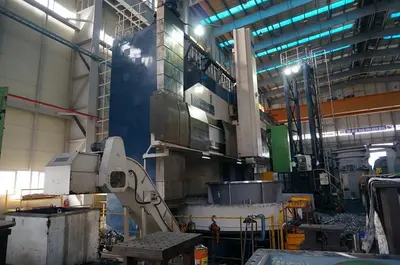

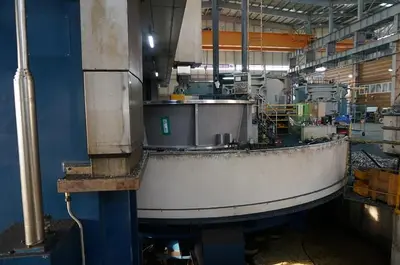

USED 2012 HNK VTC-50/70

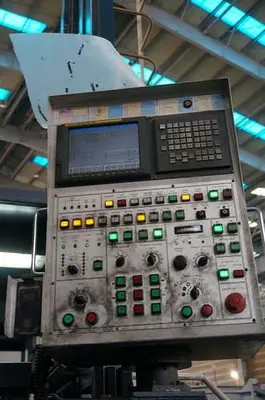

Fanuc 18i TB CNC Control System with 104” TFL LCD-Memory 2,560M, M.P.G. Handle

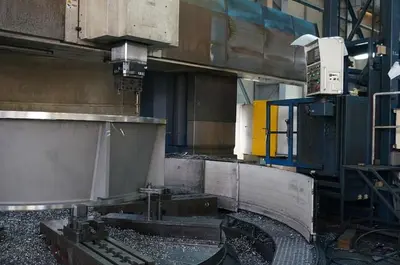

Live Spindle
C Axis Machining – Table Indexing 0.001 deg.Table Turn Speed (2 step) 50 rpm
24 Position Automatic Tool Changer
Grinding Attachment

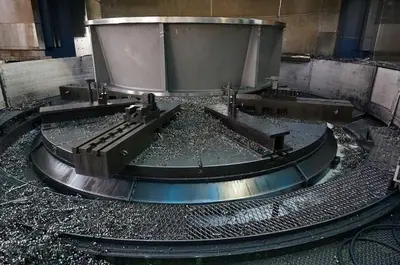

4-Jaw Independent Manual Chuck Jaws
Turning Tool Holders
Linear Scales For X & Z Axis
Cross Rail Steel Covers
Column Steel Way Covers
External Coolant
Table Lubrication Cooling System
Hydraulic Power Unit
Operator Platform
Hinge Type Chip Conveyor
Chip Bucket
Automatic Power Off
Table Extension Beams
Rigid Tapping
Dynamic Graphic Display

Manufacturer: HNK
Model: VTC 50/70
Year: 2012
Condition: Used
Stock Number: 10342

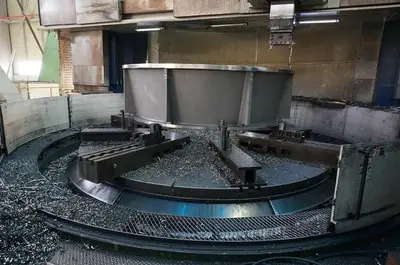

Table diameter: 5,000 mm
Swing: 7,000 mm
Turning height: 5,000 mm
Table capacity: 60 Ton
Table turn speed: 50 rpm
Live spindle speed: 1,000 rpm
Z axis travel: 2,500 mm
X axis travel: 4,000 mm (-200 mm +3,800 mm)
W axis travel: 3,250 mm (250 mm x 13 Steps)
Distance from table top to spindle end: 5,200 mm
Ram size: 400 x 400 mm
Tool shank size: 60 x 60 mm
Table speed for indexing (c axis): 0 - 0.3 rpm
Table indexing control (c axis): 0.001 Deg
Rapid feed of ram head, x,z axis: 6,000 mm/min
Feed rate of ram head, x,z axis: 1 - 3,000 mm/min
Milling spindle taper: ISO 50
Main motor for table drive - dc: 121 kW
Live milling spindle motor - ac: 22/26 kW
