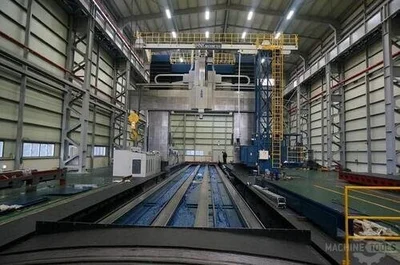

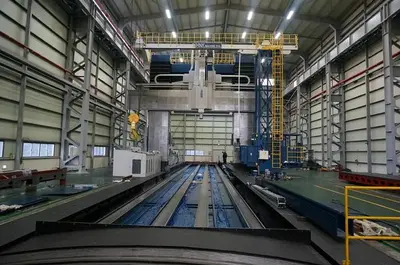

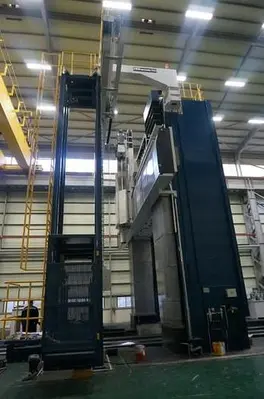

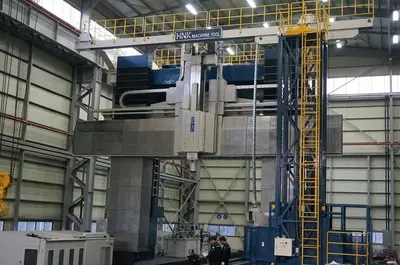

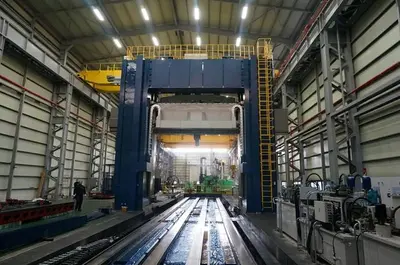

USED 2014 HNK HPM-50L
Overview

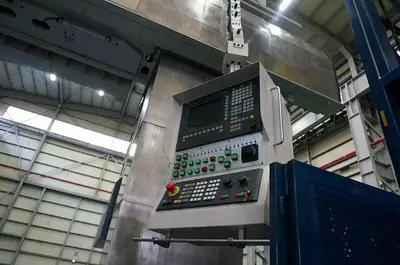

Siemens 840D CNC Control System
Through Spindle Coolant (Pump 30 BAR)
External Coolant system

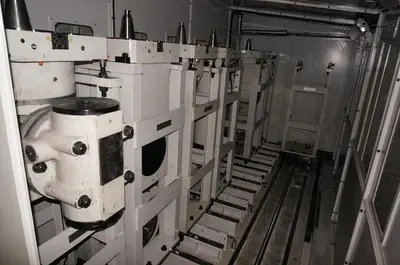

Automatic Attachment Changer – 6 Attachments 1 Cover
Right Angle Attachment – 600 mm 23.6″
Universal Angular Attachment – 700 mm 27.6″
Compact Angular Attachment – 600 mm 23.6″
Compact Angular Attachment – 1,350 mm 53.2″
Extensions Attachment – 1,100 mm 43.3″
Operator Elevator
Heidenhain Linear Scale – X,Y,Z,W-Axis
Hinge Type Chip Conveyor (2 Pieces)

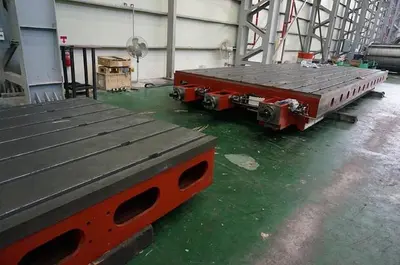

4 Tables
Specs
Manufacturer: HNK
Model: HPM-50L
Year: 2014
Condition: Used
Stock Number: 10025
Between columns: 5,600 mm
Spindle speeds: 1,000 rpm
Machining height: 6,200 mm
X axis travel: 16,000 mm
Y axis travel: 7,000 mm
Z axis travel: 2,200 mm

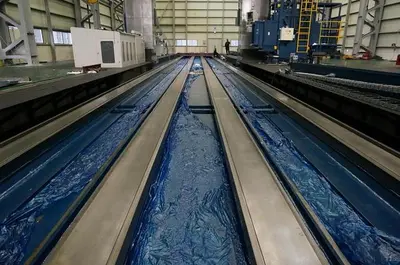

Table dimensions: 5,000 x 16,000 mm
Table capacity: 150 Ton
W axis travel: 4,000 mm
Spindle diameter: 160 mm
Ram size: 500 x 500 mm
Spindle taper: ISO 60/50
Spindle motor: 100 kW
Feed rate - rapid traverse - x,y axis: 8,000 mm/min
Feed rate - rapid traverse - z axis: 6,000 mm/min
Feed rate - rapid traverse - w axis: 2,000 mm/min
Cutting feeds - x,y,z axis: 1 - 3,000 mm/min
Cutting feeds - w axis: 1 - 2,000 mm/min
