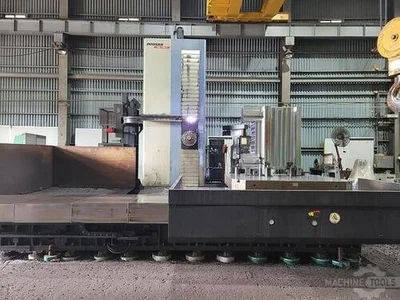

USED 2014 DOOSAN DBC 130L II

Fanuc 31iA CNC Control40 Position Automatic Tool ChangerLinear scale X,Y & Z AxisChip Conveyor

Manufacturer: Doosan
Model: DBC 130 LII
Year: 2014
Condition: Used
Stock Number: 11033
Spindle diameter: 130 mm
Spindle speeds: 2,500 rpm
X axis travel: 4,000 mm
Y axis travel: 2,500 mm
Z axis travel: 2,000 mm
Table dimensions: 1,800 x 2,000 mm
Table capacity: 19 Ton
Quill diameter: 240 mm
W axis travel: 700 mm
Spindle taper: ISO 50
Table indexing: 0.001°
Rapid traverse X/Y/Z: 10 m/min
Rapid traverse W: 6 m/min
Feed speed: 1 - 4,000 mm/min
Motor power: 22 / 26 kW
Electrics: 220 V, 3P, 50/60 HZ
Machine weight: 48 Ton
