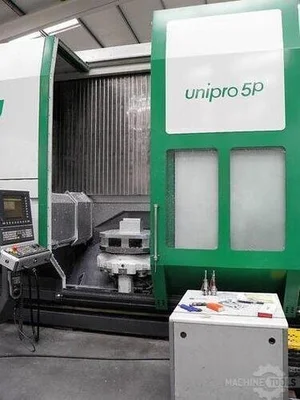

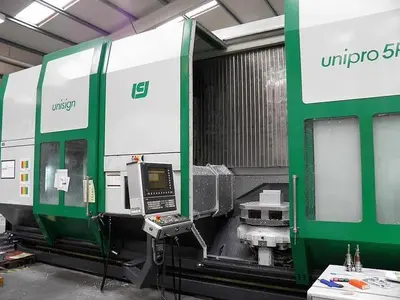

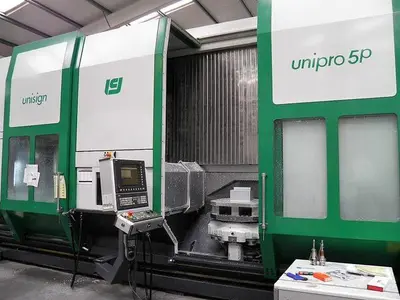

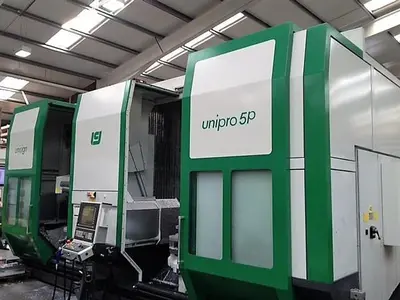

USED 2006 UNISIGN UNIPRO 5P
Overview

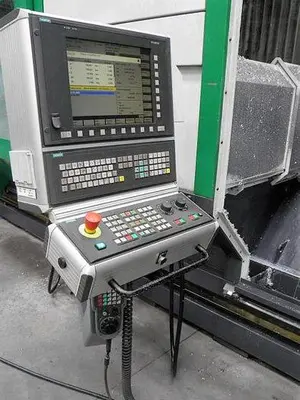

Siemens Sinumerik 840D CNC Control – Numerically Controlled in 4 or more Axes – Optional Up to 30 Axes

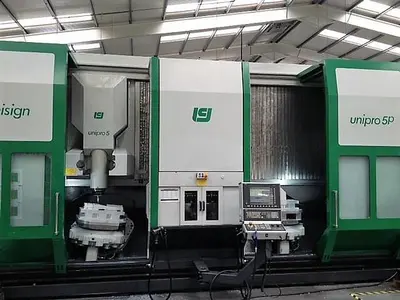

2 Work Zones
Automatic Tool Change – 63 Pocket Magazine
Tool Loading Bay at the Machine Front Face for Tool Loading During Machining
Closed Loop Cooling System with Chilling Unit for Main Drive and the Electrical Cabinet for Increased Thermal Stability

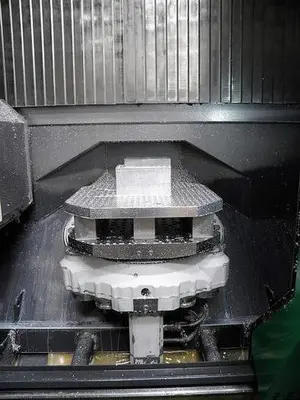

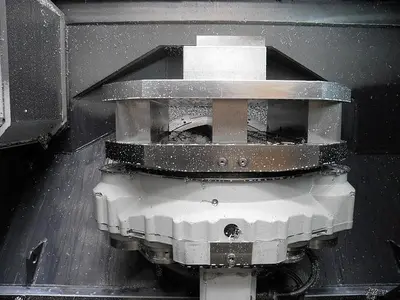

Clamping Table Mounting Face at 45 Degree Inclination for Optimal Chip Removal and Easiest Integration of Various Configuration of Clamping Tables

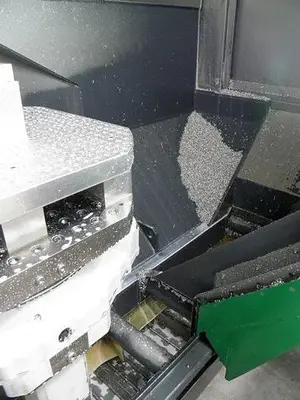

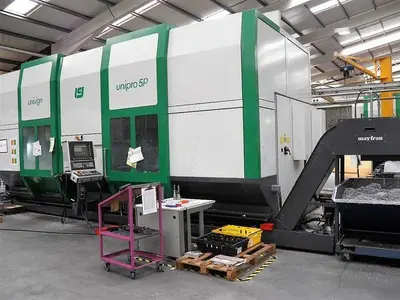

Integrated Chip Conveyor
Coolant Supply Through the Spindle & Tool
Coolant System – 320 L& Pump 40 L/min – 4 bar

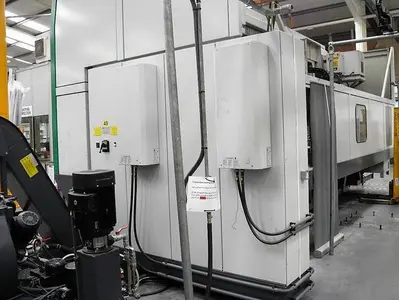

Full Enclosure Guarding Section with Front Sliding Doors and Electronic Safety Door Locks – Integrated Separator for 2 Completely Separated Work Zones
Compressed Air Required 20 L/min – 6 bar
Fume Extraction via 2 Electrostatic Filter Units
Specs
Manufacturer: Unisign
Model: Unipro 5P
Year: 2006
Condition: Used
Stock Number: 10497
Spindle speed: 12,000 rpm
X axis travel: 2x 1,000 mm
Y axis travel: 800 mm
Z axis travel: 500 mm
Table dimensions: 680 x 680 mm
Swing circle: 800 mm
Thrust in x,y axis: 10,000 N
Thrust in z axis: 13,000 N
Rapid traverse of the x,y,z axes: 60 m/min
Feed rate: 5 - 60,000 mm/min
Electrical equipment for power system: 400 V / 3 ph / 50 Hz
Power consumption, approximate: 70 KVA or 100 KVA
Maximum work piece height: 450 mm
Maximum speed of rotation: 32 rpm
Admissible transport load: 750 kg
Maximum torque of rotation: 3,000 Nm
Measuring of position: Direct via Rotary Encoder
Machine dimensions: 8,600 x 3,500 mm
Machine height: 3,700 mm
