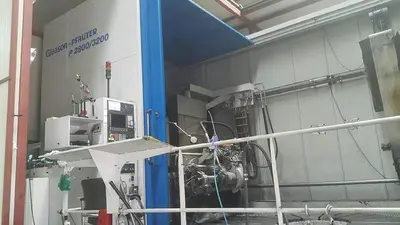

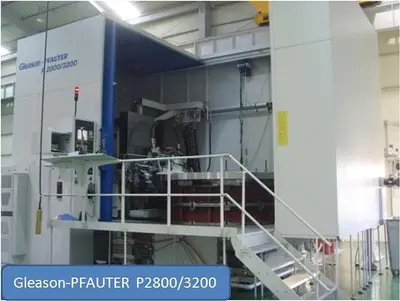

USED 2009 GLEASON PFAUTER P2800/3200

Siemens CNC Control

Manufacturer: Gleason Pfauter
Model: P 2800/3200
Year: 2009
Condition: Used
Stock Number: 10609
Hobbing: 20 mm
Form milling: 30 mm
Max diameter: 3,200 mm
Max length: 386 mm
Diameter: 60 / 80 mm
Max outer diameter: 350 mm
Mounting taper: HSK-B 160
X axis (radial): 1,200 mm
Y axis (tangential): 300 mm
Z axis (axial): 1,000 mm
Direction +a: 30 Degrees
Direction -a: 15 Degrees
Tool: 25 - 150 rpm
Outside diameter: 2,500 mm
Bore: 800 mm
Maximum permissible load: 400 kN
Machine dimensions (l x w x h): 8.8 x 8.41 x 5.35 m
Weight of machine, approx.: 56,000 kg
Operating voltage: 380 V
Supply voltage: 230 V
Control voltage: 24 V
Frequency: 60 Hz
X & y axes: 3,000 mm/min
Z axis: 4,000 mm/min
Worktable: 0 - 4 rpm
