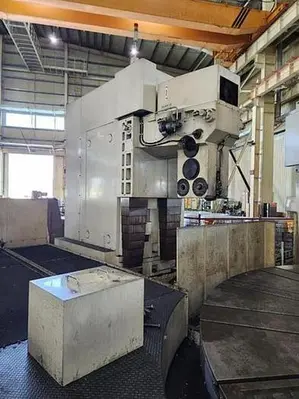

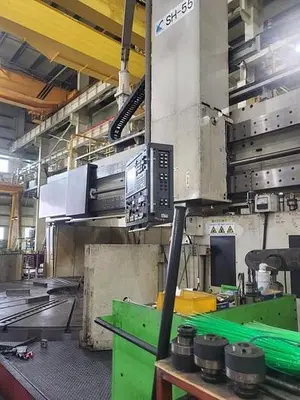

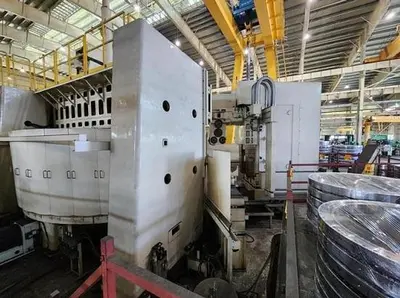

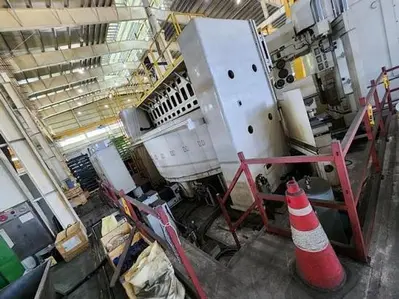

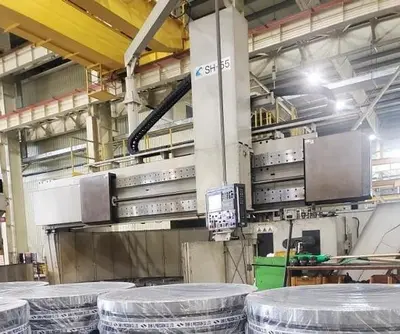

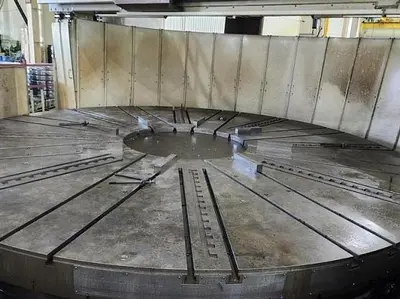

USED 2014 KOHCHIYAMA SH-55
Overview

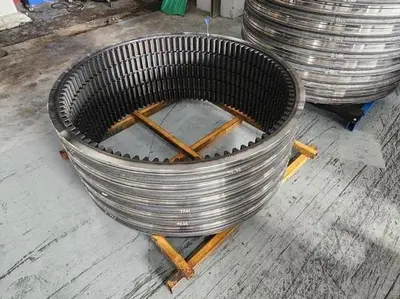

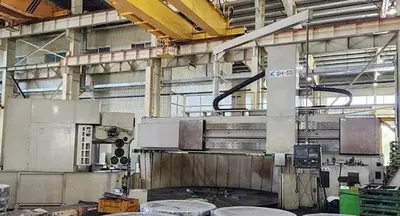

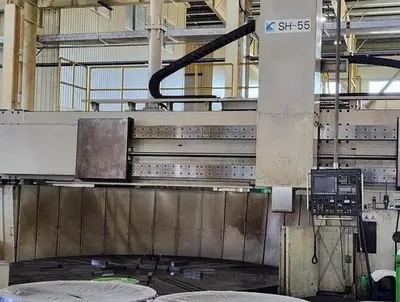

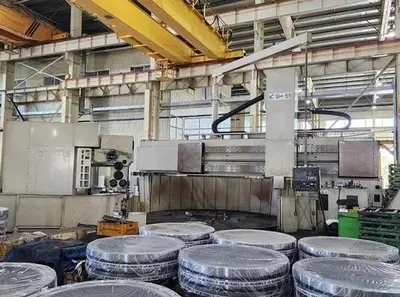

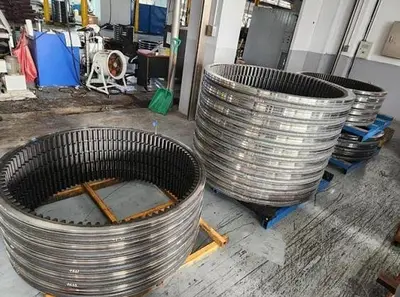

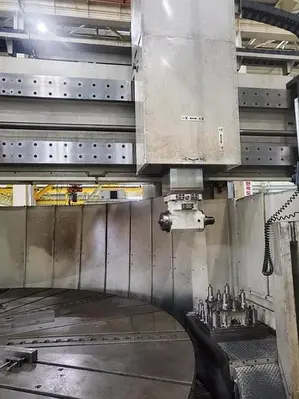

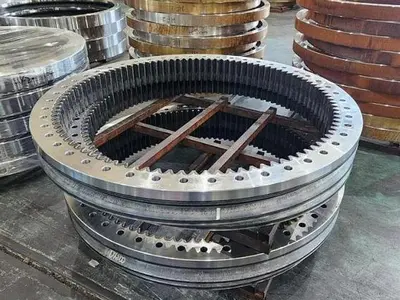

This machine is a combination machine of a single-tooth indexing type fully automatic gear cutting machine and a vertical lathe (with milling) for cutting straight internal and external gears with high efficiency using a carbide milling cutter under numerical control.

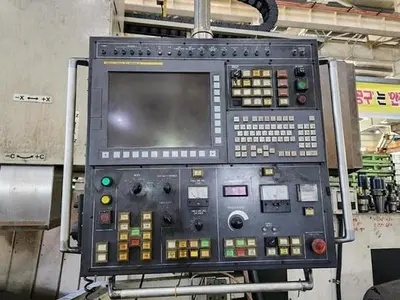

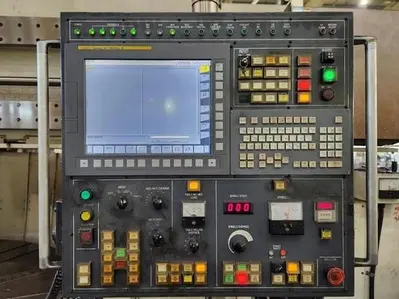

Fanuc FS 31iB CNC Control
Specs
Manufacturer: Kohchiyama
Model: SH-55
Year: 2014
Condition: Used
Stock Number: 11101
Max cutting external gear: 5,500 mm
Max cutting internal gear: 5,500 mm
Max thickness of gear by cutting: 500 mm
Max module of gear by cutting: M32

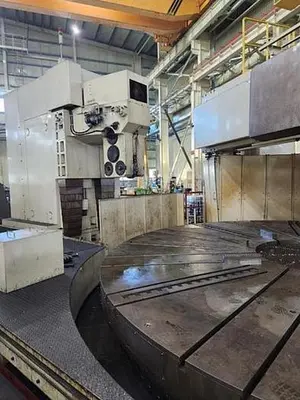

Main table diameter: 3,740 mm
Degree of gear by cutting: 0 Degree
Max workpiece weight on table: 39.4 Ton
Speed of cutter (stepless): 10 - 150 rpm
Max diameter/thickness of cutter: 450 / 110 mm
Max internal diameter of the cutter: 80 mm
Max working diameter: 5,500 mm
Max working height: 1,200 mm
Rotation speed, table: 3 - 15 rpm
Rotation speed, spindle: 15 - 1,500 rpm
Ram size: Square 350 mm
Machine dimensions: 14.67 x 12 m
