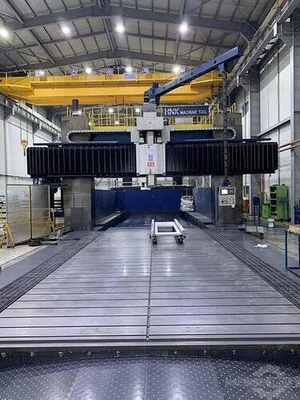

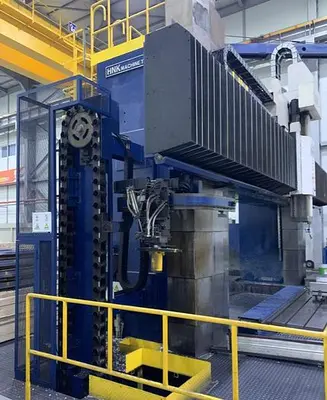

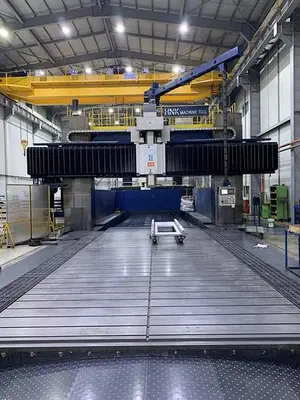

USED 2011 HNK HPM-40H
Description

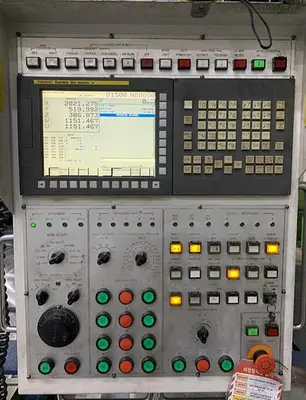

Fanuc 31iA MB CNC Control (10.4″ TFT LCD)
60 Position Automatic Tool Changer
Through Spindle Coolant (TSC) 30 Bar
Automatic Attachment Changer

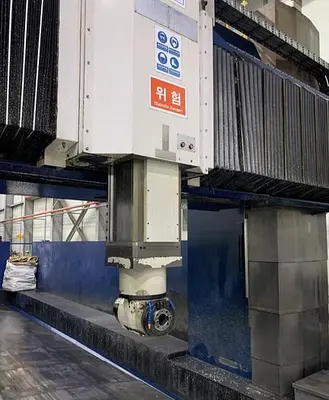

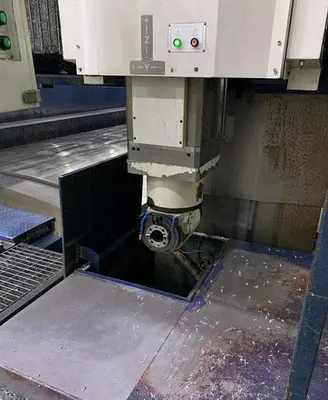

Right Angle Head L=350 mm
Extension Attachment = L=600 mm
Scale Feedback X,Y,Z,W

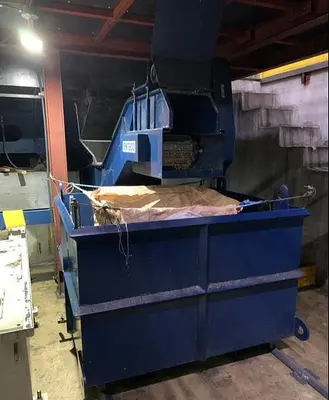

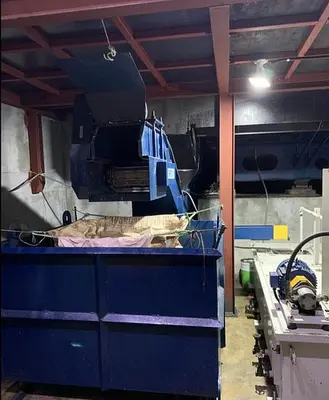

Chip Conveyor
Specifications
Manufacturer: HNK
Model: HPM-40H
Year: 2011
Condition: Used
Stock Number: 11010
Between columns: 5,300 mm
Spindle speeds: 6,000 rpm
Machining height: 2,600 mm
X axis travel: 10,250 mm
Y axis travel: 6,400 mm
Z axis travel: 800 mm

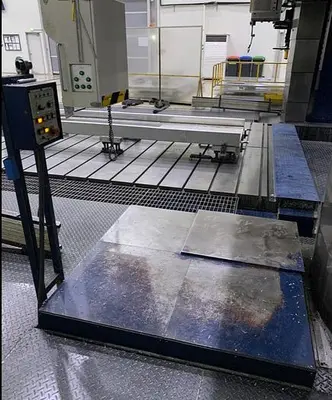

Table dimensions: 4,000 x 10,000 mm
Table capacity: 50 Ton
W axis travel: 2,000 mm

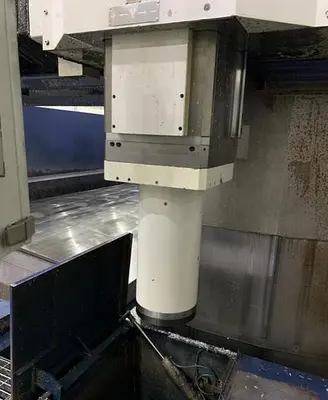

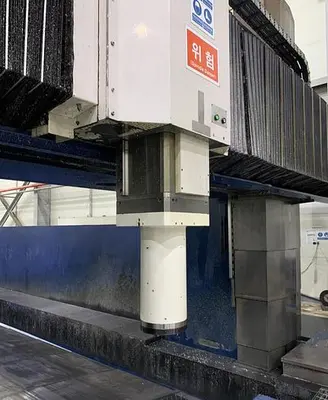

Ram size: 380 x 380 mm
Spindle motor: 22 / 25 kW
Spindle taper: ISO 50
Rapid feed (x,y,z,w): 15 / 15 / 8 / 4 m/min
Cutting feed (x,y): 1 - 10,000 mm/min
Cutting feed (z): 1 - 8,000 mm/min
Cutting feed (w): 1 - 3,000 mm/min
