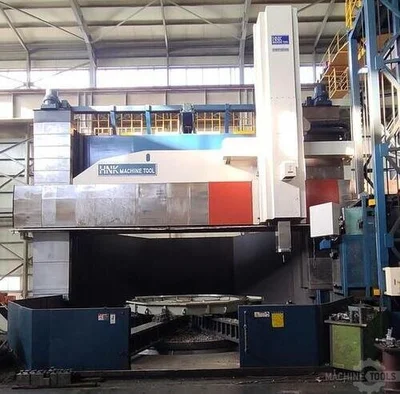

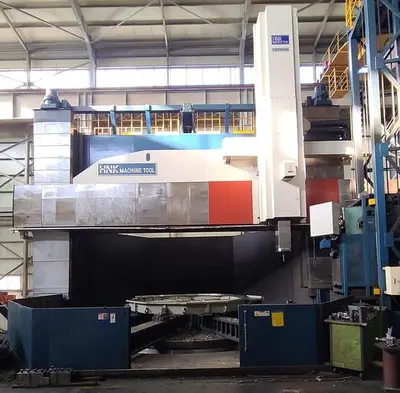

USED 2013 HNK VTC 50/85
Overview
Fanuc 31i CNC Control – 104″ TFL LCD – M.P.G. Handle
Live Spindle
C Axis Machining – Table Indexing 0.001 deg.
Vertical travel of cross rail, W Axis, (250 mm x 13 steps) 3,250 mm
Table Turn Speed (2 step) 50 rpm
Right Angle Attachment
Grinding Attachment
Table Lubrication Cooling System
4-Jaw Independent Manual Chuck Jaws
Hydraulic Power Unit
Turning Tool Holders x2
Linear Scales – X,Z Axis
X Axis Steel Covers
External Coolant
Operator Lift
Chip Conveyor – Hinge Type
Chip Bucket
Specs
Manufacturer: HNK
Model: VTC 50/85
Year: 2013
Condition: Used
Stock Number: 10248
Table diameter: 5,000 mm
Swing: 8,500 mm
Turning height: 5,000 mm
Table capacity: 60 Ton
Table turn speed: 50 rpm
Live milling spindle speed: 1,000 rpm
Z axis travel: 2,500 mm
X axis travel: -200 - +4,500 mm
W axis travel: 3,250 mm
Ram size: 400 x 400 mm
Tool shank size: 60 x 60 mm
Milling spindle taper: ISO 50
Table speed for indexing (c axis): 0 - 0.3 rpm
Table indexing control (c axis): 0.001 degree
Rapid feed ram head - x,z axis: 6,000 mm/min
Feed rate ram head - x,z axis: 0 - 3,000 mm/min
Main motor for table drive (dc): 121 kW
Live milling spindle motor (ac): 22/26 kW
