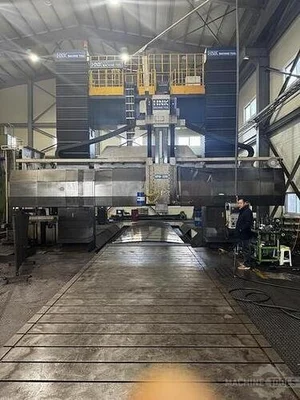

USED 2014 HNK HPM-30M
Description
Fanuc 31iB CNC ControlLinear Scales XYZW90 Position Automatic Tool ChangerAutomatic Attachment Changer(1) 90-degree Angle Head L-350 mm, 5° Indexing(1) Extension Head L= 600 mmSpindle Thru Coolant - 30 barExternal Coolant UnitChip conveyorsHydraulic Pump & Coolant System
Specifications
Manufacturer: HNK
Model: HPM-30M
Year: 2014
Condition: Used
Stock Number: 11137
Between columns: 4,000 mm
Spindle speeds: 2,500 rpm
Table to ram face: 3,550 mm
X axis travel: 10,250 mm
Y axis travel: 5,000 mm
Z axis travel: 1,000 mm
Table size: 3,000 x 10,300 mm
Table capacity: 50 Ton
W axis travel: 2,500 mm
Z + w axis (ram + crossrail): 3,500 mm
Spindle drive motor: 37 kW
Spindle taper: BT 50
Ram size: 400 x 400 mm
Rapid traverse X,Y: 10 m/min
Rapid traverse Z,W: 3 m/min
Feed speed X,Y: 3.6 m/min
Feed speed Z,W: 3 m/min
Machine weight: 172 Ton
