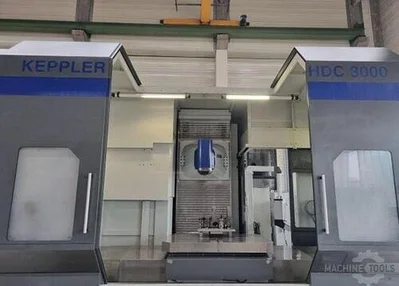

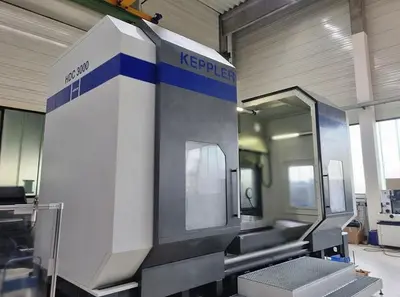

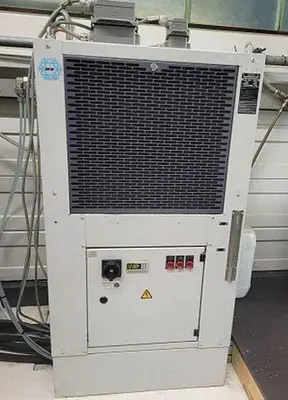

USED 2015 KEPPLER HDC 3000

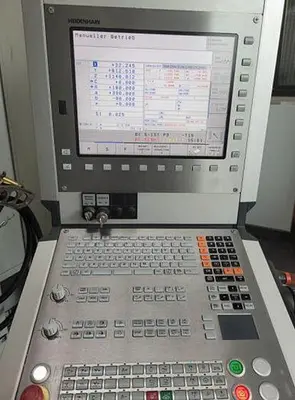

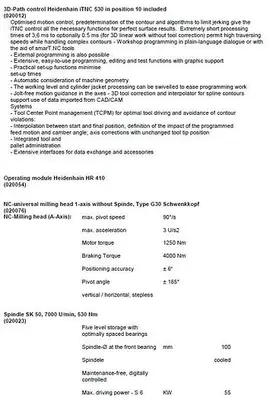

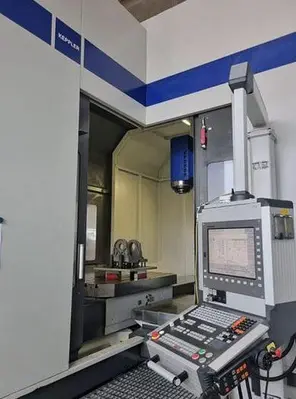

Heidenhain iTNC 530 CNC Control – 3D Path Control in Position 10 Optimised motion control, predetermination of the contour and algorithms to limit jerking give the iTNC control all the necessary functions for perfect surface results. Extremely short processing times of 3,6 ms to optionally 0.5 ms (for 3D linear work without tool correction) permit high traversing speeds while handling complex contours - Workshop programming in plain-language dialogue or with the aid of smarT.NC tools - External programming is also possible - Extensive, easy-to-use programming, editing and test functions with graphic support - Practical set-up functions minimise set-up times - Automatic consideration of machine geometry - The working level and cylinder jacket processing can be swivelled to ease programming work - Jolt-free motion guidance in the axes - 3D tool correction and interpolator for spline contours support use of data imported from CAD/CAM Systems - Tool Center Point management (TCPM) for optimal tool driving and avoidance of contour violations: - Interpolation between start and final position, definition of the impact of the programmed feed motion and camber angle; axis corrections with unchanged tool tip position - Integrated tool and pallet administration - Extensive interfaces for data exchange and accessories
- Heidenhain HR 410 Operating Module

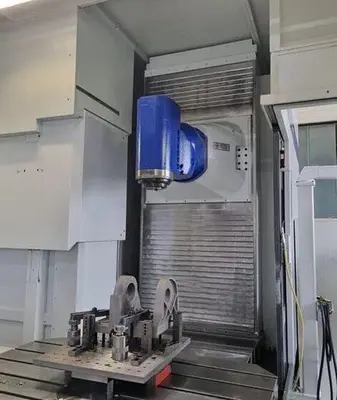

NC Universal Milling Head 1-Axis without Spindle Type
Spindle SK50 7,000 rpm

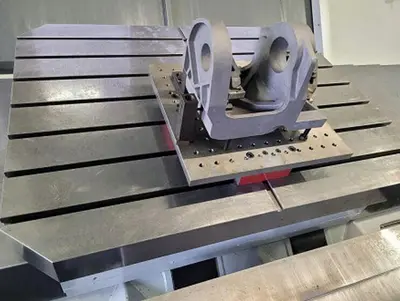

NC Rotary Table 1,250 x 1,600 mm

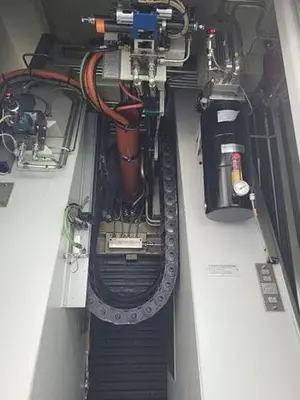

X,Y,Z Axes Linear Roller Guides, Central Lubrication
X,Y,Z Axes Precision Ball Thread Gears

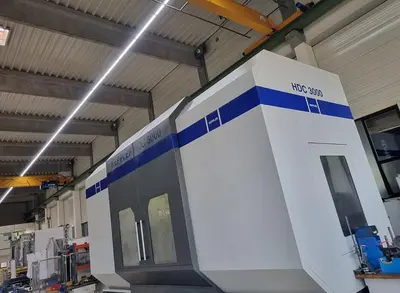

Full EnclosureWorm Gear Drive
40 Position Automatic Tool Changer

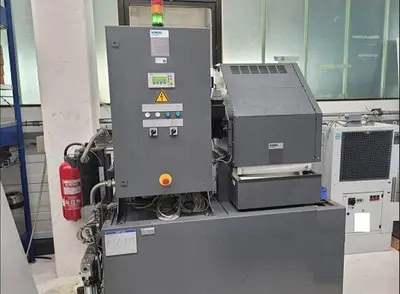

Coolant SupplyHydraulic Tool Clamping - Unclamping
Internal Coolant Supply (IKZ) 60 bar4 Nozzle CoolingExternal Blowing Unit (Air)Internal Blowing Unit (Air)
Wash Gun
3-D Measuring Probe

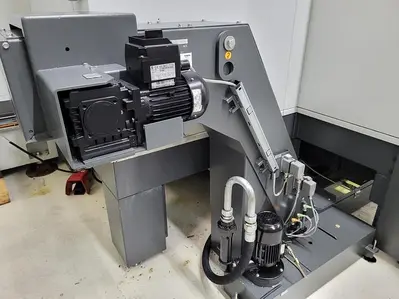

Chip ConveyorKinematics Option
Documentation

Manufacturer: Keppler
Model: HDC 3000
Year: 2015
Condition: Used
Stock Number: 11021
Spindle speeds: 7,000 rpm
X axis travel: 3,000 mm
Y axis travel: 1,500 mm
Z axis travel: 1,400 mm
NC rotary table dimensions: 1,250 x 1,600 mm
X axis from middle of table: ± 1,500 mm
Y axis from middle of table vertical spindle: + 196.5, -1,303.5 mm
Z axis from table surface vertical spindle: -24, +1,376 mm
Rapid traverse x axis: 27,000 mm/min
Rapid traverse y,z axes: 30,000 mm/min
Max pivot speed: 90°/s
Max acceleration: 3 U/s2
Motor torque: 1250 Nm
Braking torque: 4000 Nm
Positioning accuracy: ±6"
Pivot angle: ± 185°
Tool tpaer: SK 50
Spindle torque: 530 Nm
Spindle diameter at front bearing: 100 mm
Max driving power - s6: 55 kW
Max driving power - s1: 40 kW
Table speed: 10 rpm
Max torque: 14000 Nm
Inner diameter of table bearing: 650 mm
Tilting moment: 60000 Nm
Holding torque axis clamping: 26000 Nm
Tangential moment: 40000 Nm
Max permissible weight: 6 M Ton
Electric operating power: 3 x 400V / 50 HZ
Operating voltage: ±10%
Main fuse: 160 A
Nominal load: 120 A
Connected load: 80 KVA
Depth x height: 7,500 x 3,950 mm
Breadth & coolant plant: 7,720 mm
Machine weight: 34 M Ton
