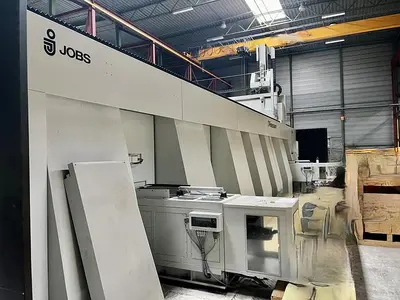

USED 2015 JOBS GRAND SPEEDER
Overview
Heidenhain iTNC 530 CNC Control

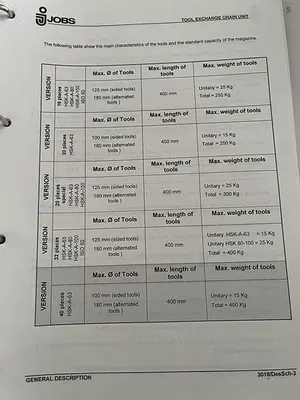

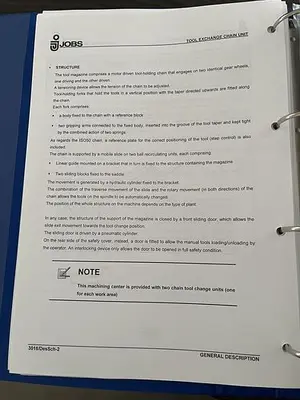

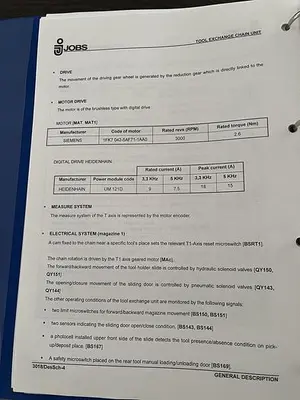

40 Position Two Chain Magazine Automatic Tool Changer (HSK A63)
Tool external diameter 170 mm
Total length 533 mm

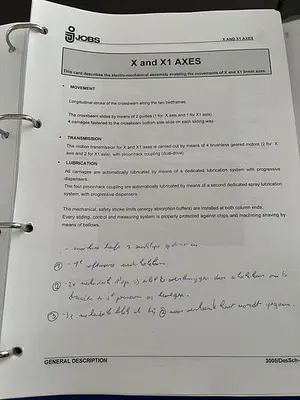

X, X1 Axes
Longitudinal stroke of the crossbeam along the 2 bedframes
The crossbeam slides by means of 2 guides (1 for X axis and 1 for X1 Axis)
Motion transmission carried out by 4 brushless geared motors with pinion/rack coupling

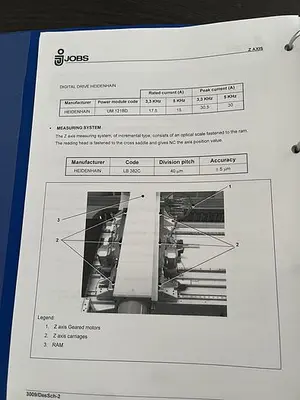

Heidenhain optical scales measuring system
Coolant Through Spindle - 50 bar
Renishaw RMP60 Digital Probe - Workpiece Measure Cycles

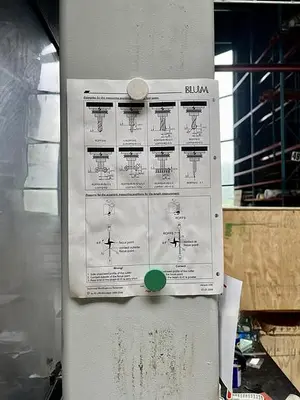

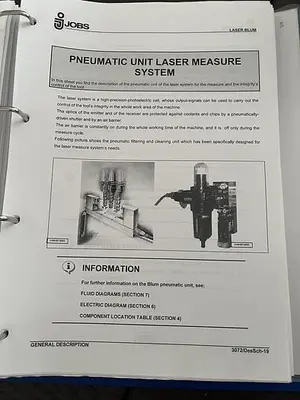

BLUM Two Tool Presetting System for Calibration, Measurements, & Cutting-Edge Control Cycles

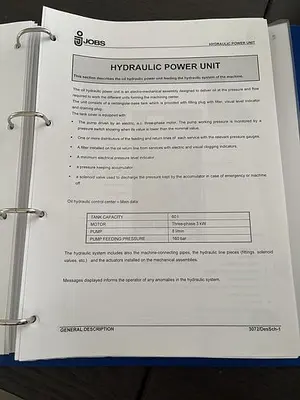

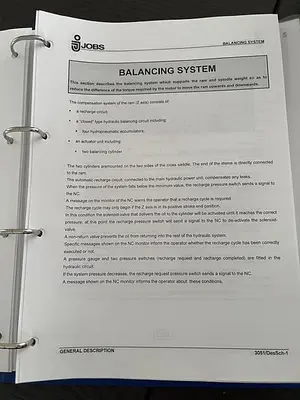

Hydraulic Oil Power Unit - 60 L - 3 Phase 3 kW - 8 L/min Pump - 160 bar

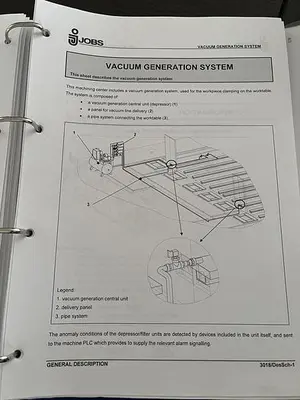

Vacuum System with 1,000 L Tank
BRANKAMP System

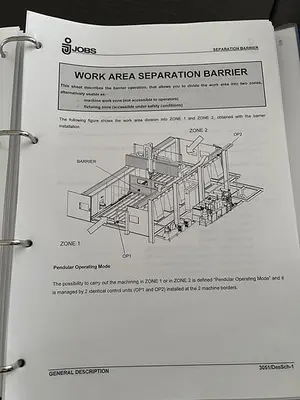

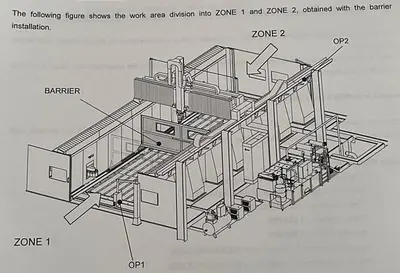

Operating Area Separation Barrier

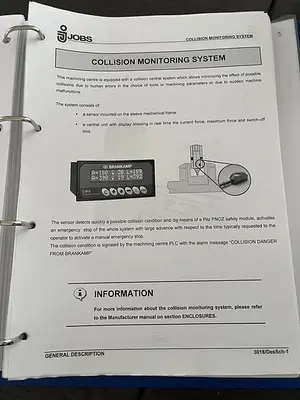

Collision Monitoring System
Specs
Manufacturer: Jobs
Model: Grand Speeder
Year: 2015
Condition: Used
Stock Number: 11105
Spindle speeds: 24,000 rpm
X axis travel: 14,000 mm
Y axis travel: 5,000 mm
Z axis travel: 2,500 mm

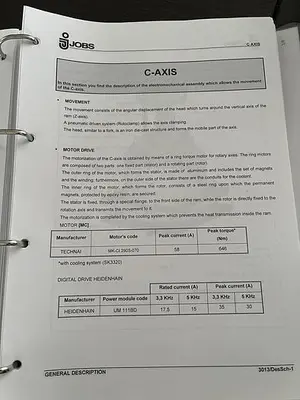

C axis: 400° (±200°)

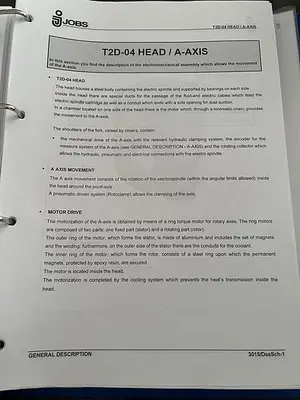

A axis: 220° (±110°)

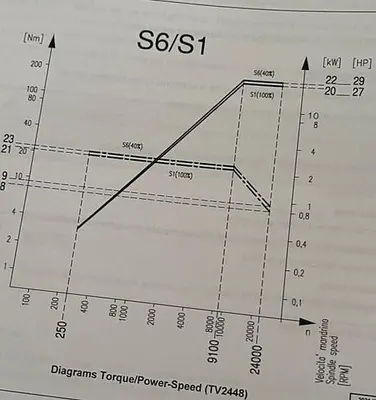

Spindle power (S1/S6 40%): 20/22 kW
Spindle torque (S1/S6 40%): 21/23 Nm
Table dimensions: 13 x 2.5 x 0.25 m
Table capacity: 1,000 kg/m²
Spindle taper: HSK 63A
Machine weight: 70.83 Ton
Working voltage: 400V
Frequency: 50 Hz
Auxiliary Voltage: 24 Vdc
Rated current: 150A
Power supply: TN net: 3PH + PE
