USED 2013 HERMLE C30U
Overview

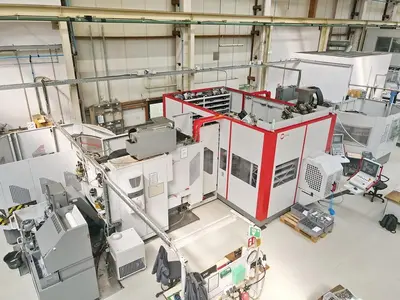

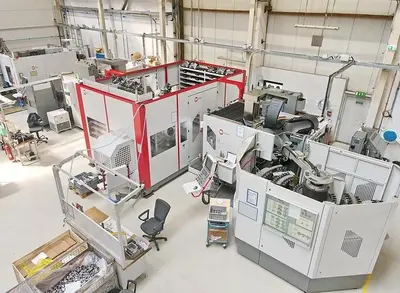

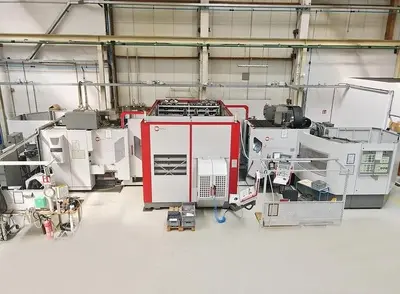

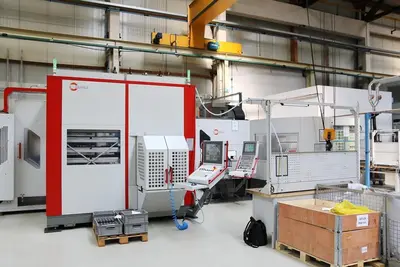

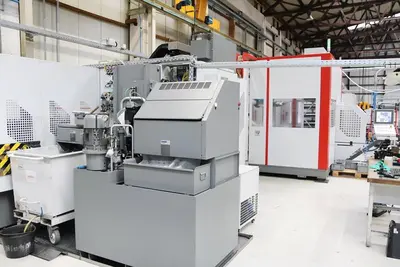

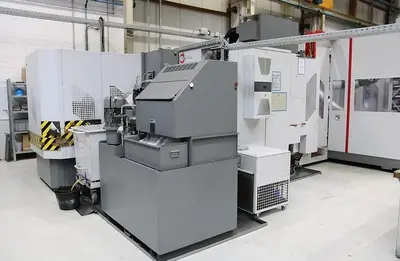

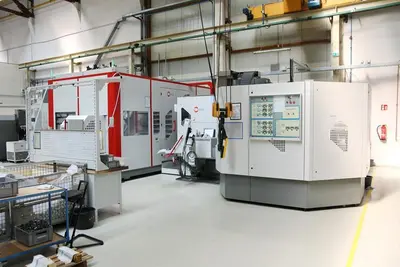

Includes 2x Hermle C30 U Machines + 1x Kuka KR 180R2900 Prime Pallet Changer

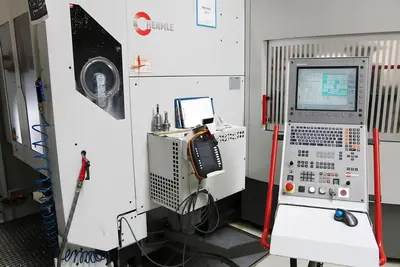

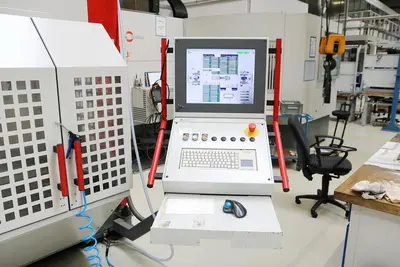

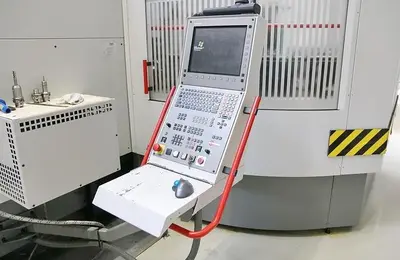

Heidenhain iTNC 530 CNC Control
5 Axis - CNC Machining Center Universal

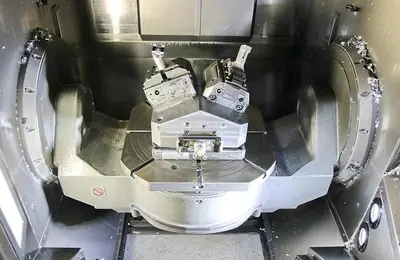

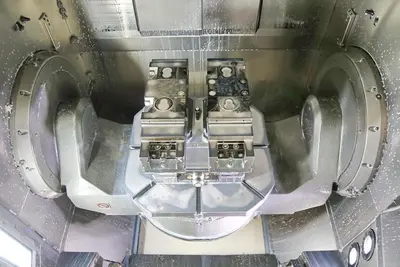

NC-Rotary Swiveling Table

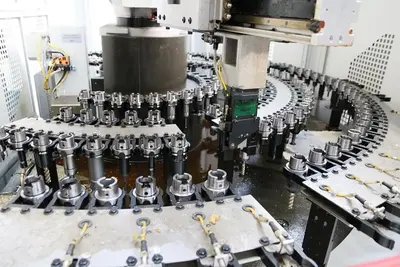

Automatic Tool Changer 32 pos. + 157 pos. extern
Coolant System
Through spindle coolant
High pressure coolant 80 bar

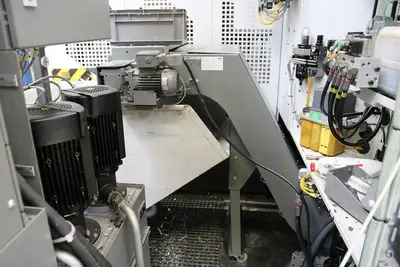

Chip conveyor
Oil mist extraction
Signal-Light
Paper band filter
Spindle oil cooler

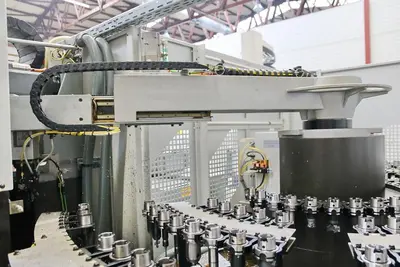

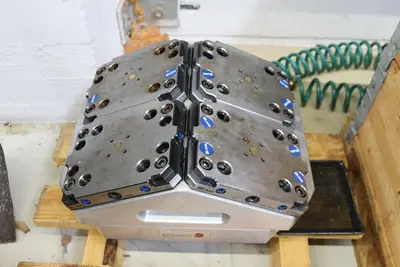

Pallet changer 66 pos.
Tool setting
Test probe Renishaw OMP 40-2LS
Test probe Heidenhain TS 440
Electronic hand wheel (Kuka)

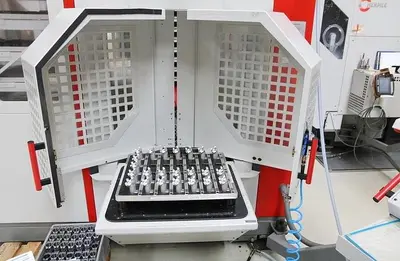

Tool Presetter 32 Position - HSK A63
Max Tool Diameter 80 mm
Max Tool Diameter with free Tool Box 125 mm
Max Tool Length 300 mm
Max Tool Weight 8 kg

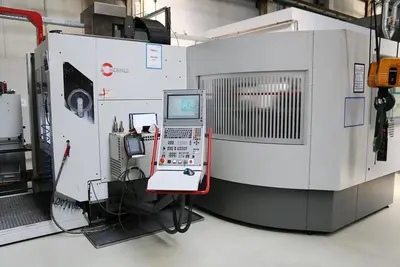

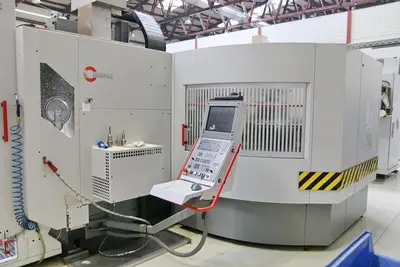

HERMLE - C 30 U

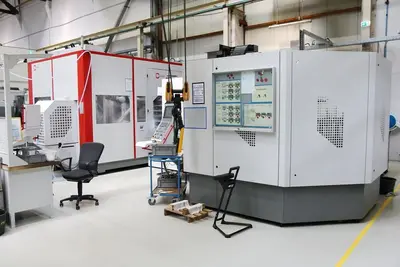

2x Hermle C 30 U
Linear axes dynamic version
6-fold rotary union
Blown air through the center of the spindle
Automatic cabin door
Rotating transparent window

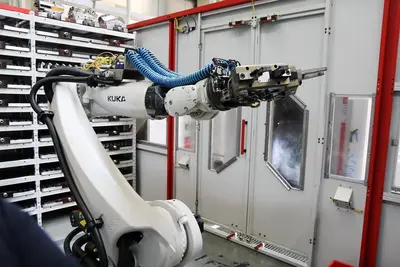

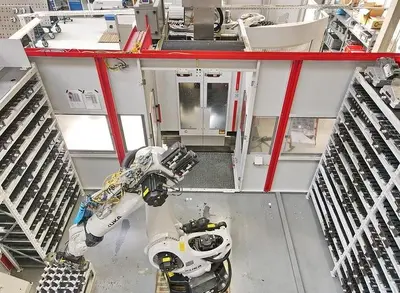

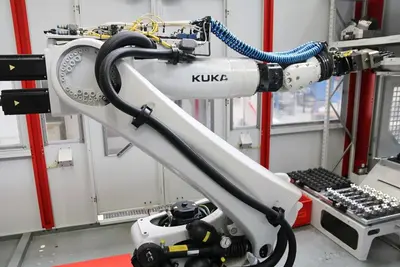

1x Kuka KR 180 R2900 prime
6 axes
Load capacity: 180 kg
Reach: 2,896 mm

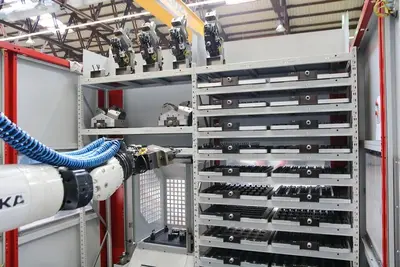

66x spaces for workpiece pallets
2x changing places
1x turning station
8x gripper spaces

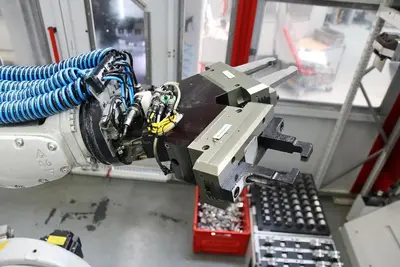

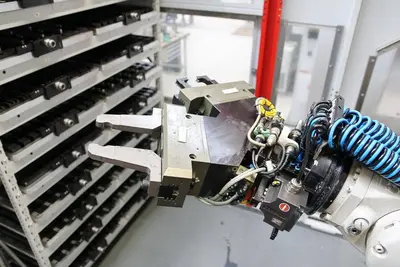

1x Schunk gripper

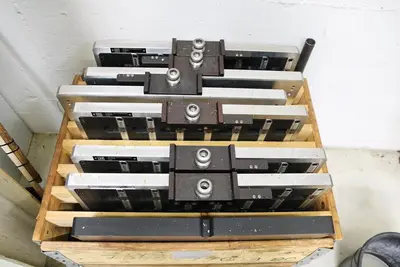

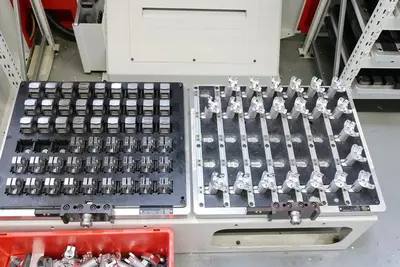

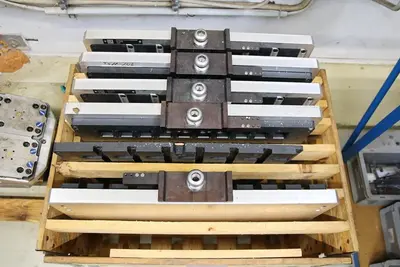

66x workpiece pallets

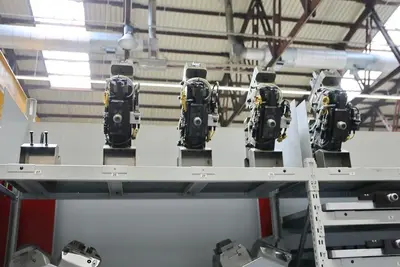

64x HSK 63 holders
20x collets
2x chip trolley
Specs
Manufacturer: Hermle
Model: C 30 U
Year: 2013
Condition: Used
Stock Number: 11167
Machine weight: 9.5 Ton
Total power requirement: 43 kVA
Feed power: 8,500 N
Acceleration: 10 m/s²
Rapid traverse X/Y/Z: 60 m/min
Table load: 1,000 kg
Table c axis rotation: 360°
Table swivel range: A +30° / -115°
Table center bore: 32 H7
Swiveling rotary table diameter: 630 mm
Tool taper: HSK A 63
Spindle power: 10 / 15 kW
Z axis travel: 500 mm
Y axis travel: 600 mm
X axis travel: 650 mm
Spindle speeds: 18,000 rpm
Machine dimensions: 15 x 7.5 x 3.5 m
