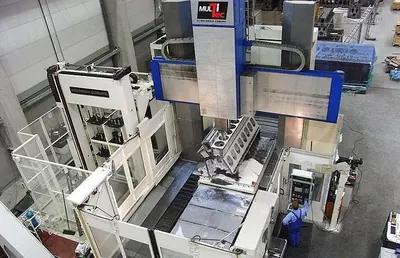

USED 2002 WALDRICH COBURG MULTITEC 2500 AP
Overview
Description

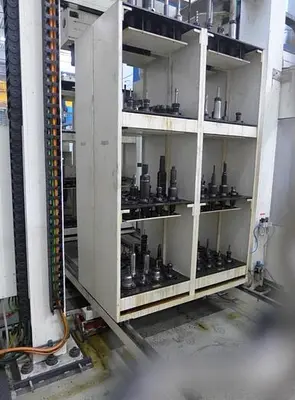

Siemens 840D CNC ControlAngle Milling Head200 Position Automatic Tool Change Unit Tool length max - 400 mm Tool diameter - 135/250 mm Weight of tools max - 50 kgBall ScrewsGuideway CoverCoolant System High-Pressure Cooling System (Internal Cooling)Full Work Area PanelingSpindle Turning Speed Range 5-6000 rpm Transmission Ratio 2
Specifications
Manufacturer: Waldrich Coburg
Model: Multitec 2500 AP
Year: 2002
Condition: Used
Stock Number: 11180
Column daylight: 2,500 mm
Spindle speeds: 6,000 rpm
X axis travel: 4,000 mm
Y axis travel: 3,500 mm
Z axis travel: 1,500 mm
Table size: 3,000 x 2,000 mm
Workpiece weight: 10,000 kg
W axis travel: 1,500 mm
Z + w axis (ram + crossrail): 3,000 mm
Spindle drive motor: 45 kW
Spindle torque: 1,250 Nm
Spindle taper: ISO SK-50
