| Swing | 15.75" | 400.05 mm |
| Machining Length | 17.32" | 439.93 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8 mm | 0.315" |
| Bar Capacity | 2.56 mm | 0.1008" |
| Power | 20 W | 0 hp |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 13.8 mm | 0.5433" |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |

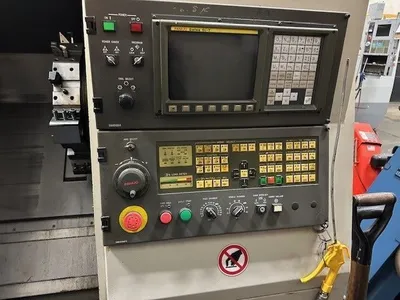

| Control | CNC | CNC |
| Dimensions | 110” x 70” x 70” | 110” x 70” x 70” |
| Weight | 7500 LBS | 7500 LBS |
Specifications (subject to buyer verification):
Max Turning Diameter: 350 mm (13.8 inches)
Max Turning Length: 270 mm (10.6 inches)
Swing Over Bed: 550 mm (21.7 inches)

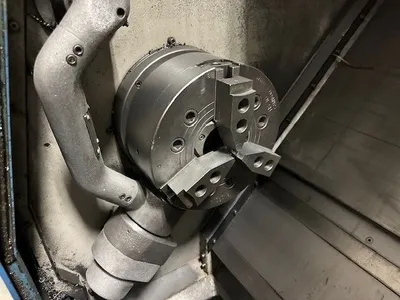

Chuck Size: 8 inches (standard)
Bar Capacity: 65 mm (approx. 2.56 inches)
Spindle Speed: 4,000 RPM
Spindle Motor Power: 11/15 kW (approx. 14.75/20 HP)
Spindle Torque: 92/167 N.m (67.85 / 123 ft.lb)
Spindle Nose: A2-6
X-axis Travel: 210 mm (8.3 inches)
Z-axis Travel: 330 mm (13 inches)
Rapid Traverse (X/Z): 36 m/min (1,417 in/min)
Slide Type: Linear Motion (LM) Guideways

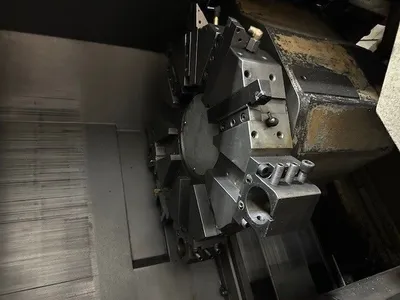

Number of Tools: 12 Stations
Tool Size (OD/ID): 25mm / 40mm (1" / 1.5")
Dimensions L x W x H: 110” x 70” x 70”
Weight: 7500 LBS
