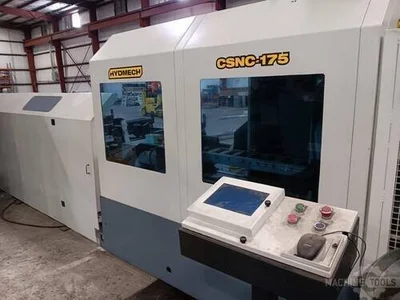

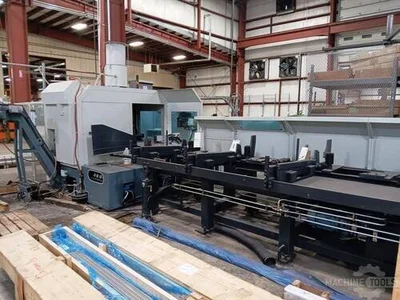

7” Capacity Cold Saw with Mitsubishi PLC Controller, Job Monitoring (Cycle Time, Job Duration, Part Count and AMP Load Setting), Material Library with US Steel Grades, Bar Feeder with Roller Bed & Material Grip Feed Carriage, Mist Exhaust System and Chip Conveyor.
7” Capacity Cold Saw with Mitsubishi PLC Controller, Job Monitoring (Cycle Time, Job Duration, Part Count and AMP Load Setting), Material Library with US Steel Grades, Bar Feeder with Roller Bed & Material Grip Feed Carriage, Mist Exhaust System and Chip Conveyor. GENERAL SPECIFICATIONS Capacity: 90°Round Min - Max: 1.96” - 7” Square Min - Max: 1.96” - 7”Blade Size (Carbide / Cermet Tipped): 260mm X 2.5mm Blade Speed: 45 - 165 MPMRement Length: 3.15” + Cut Length + Cutter ThicknessBar Stock Length: 10’ - 20’Cutting Axis: 20° Slant TypeProgrammable Trim Cut: 0.8” - 3.9”Multi Index Single Stroke: 39”Approx Dimensions: 146” X 102” X 83”Approx Weight: 12,100 Lbs
INCLUDES: Mitsubishi PLC Controller, Job Monitoring (Cycle Time, Job Duration, Part Count and AMP Load Setting), Material Library with US Steel Grades, Bar Feeder with Roller Bed & Material Grip Feed Carriage, Mist Exhaust System and Chip Conveyor.
