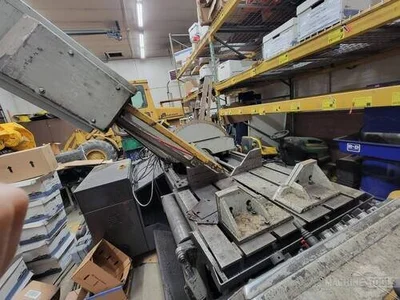

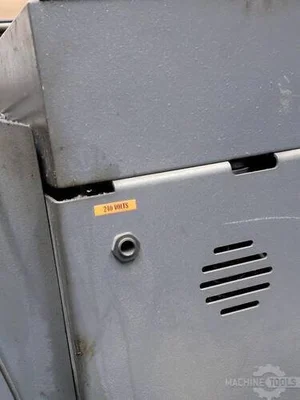

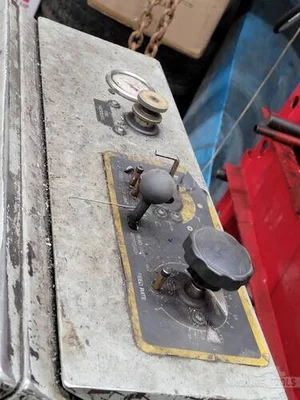

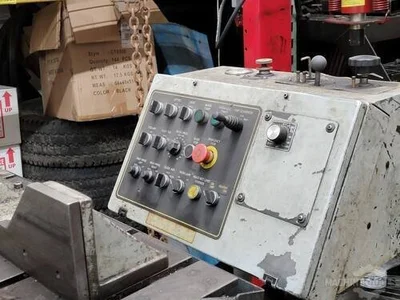

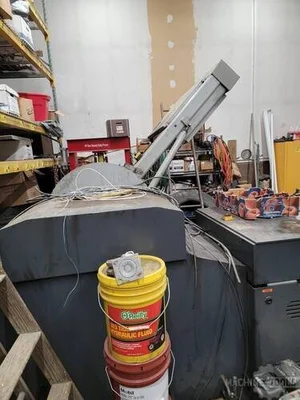

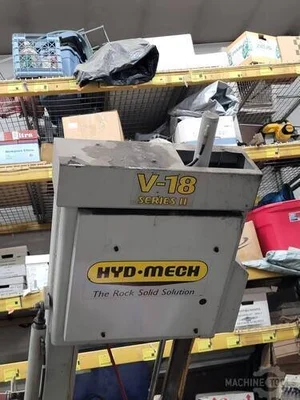

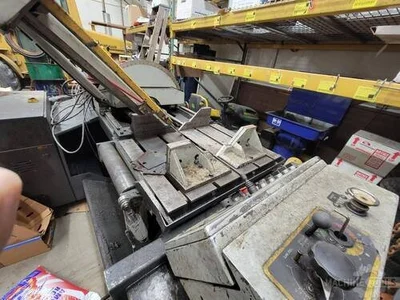

USED 2008 HYD-MECH V-18

Florida, United States
Overview
Vertical Band Saws

18” X 20” Vertical Bandsaw with Hydraulically Actuated Head Tilt to 45° Either Direction, Hydraulically Actuated Blade Tension, Hydraulically Actuated Guide Arm Positioning, Left & Right Full Stroke Hydraulic Vises, Hardened and Replaceable Wear Strips, Variable Frequency Drive and Powered Blade Brush.

Specs
Throat
18"
457.2 mm
Work Height
20"
508 mm
Power
5 hp
3.7 kW
Blade Width
1.25"
31.75 mm
Blade Length
179"
4,546.6 mm
FPM
65-385
65-385

18” X 20” Vertical Bandsaw with Hydraulically Actuated Head Tilt to 45° Either Direction, Hydraulically Actuated Blade Tension, Hydraulically Actuated Guide Arm Positioning, Left & Right Full Stroke Hydraulic Vises, Hardened and Replaceable Wear Strips, Variable Frequency Drive and Powered Blade Brush.GENERAL SPECIFICATIONS Capacity at 90° Rectangles:                18” X 20”Capacity at 90° Rounds:                    17.5” Capacity at 45° Rectangles:                18” X 13”Capacity at 45° Rounds:                    13”Blade Length:                        14’ 11”Blade Width:                            1-¼”Blade Thickness:                        0.035”Blade Speed:                            75 - 400 SFMBlade Wheel Diameter:                    19”Table Height:                            38”INCLUDES: Hydraulically Actuated Head Tilt to 45° Either Direction, Hydraulically Actuated Blade Tension, Hydraulically Actuated Guide Arm Positioning, Left & Right Full Stroke Hydraulic Vises, Hardened and Replaceable Wear Strips, Variable Frequency Drive and Powered Blade Brush.
