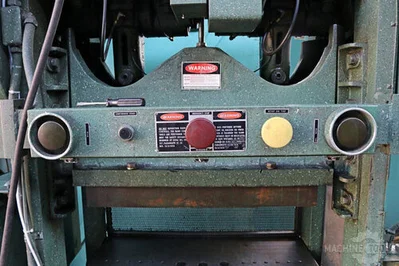

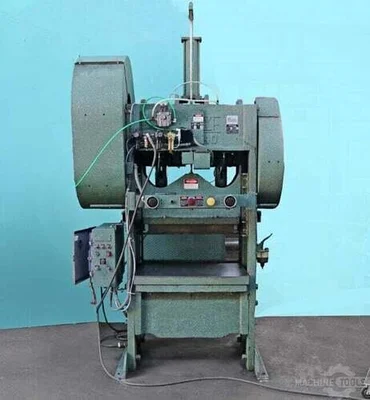

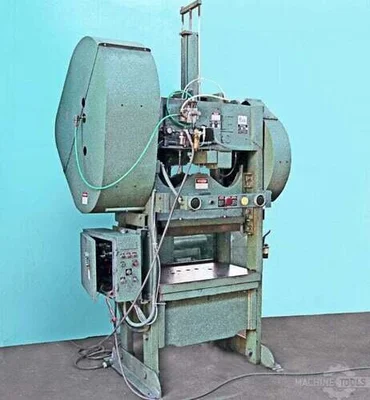

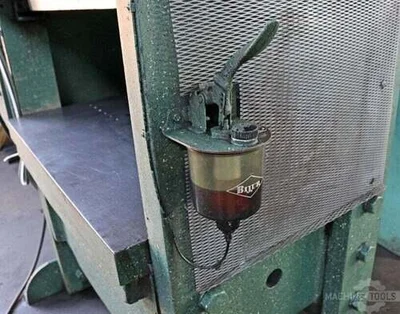

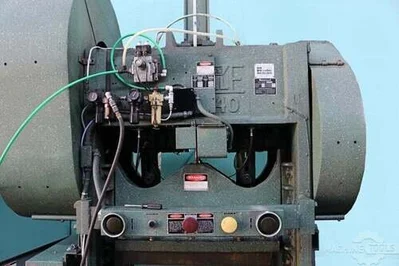

80 Ton Straight Side Press with Operator Work Station with Palm Button Control, Geared Air Clutch, 3” Bolster Plate, One Shot Lube, Air Counter Balance, Brake Monitor, Forward & Reverse Feature and Stroke Counter.
| Tonnage | 80 T | 72.575 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 19.25" | 488.95 mm |
| SPM | 75 strokes/min. | 75 strokes/min. |
| Vari Speed (Yes/No) | No | No |

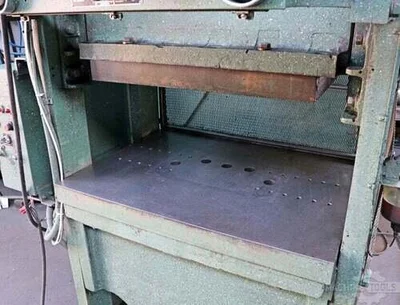

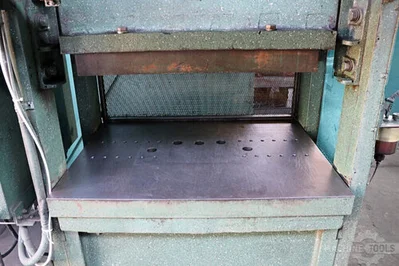

| Bed W | 40" | 1,016 mm |
| Bed L | 30" | 762 mm |
| Air Clutch (Yes/No) | Yes | Yes |
80 Ton Straight Side Press with Operator Work Station with Palm Button Control, Geared Air Clutch, 3” Bolster Plate, One Shot Lube, Air Counter Balance, Brake Monitor, Forward & Reverse Feature and Stroke Counter.GENERAL SPECIFICATIONS Capacity: 80 TonsBed Area Between Post: 40” X 30”Ram Area: 39” X 20”Stroke: 2” Stroke Speed: 75 /MinShut Height: 19-¼”Ram Adjustment: 4”Openings Between Uprights: 40” X 14”Motor Power: 7-½ HPVoltage: 230 / 3 / 60Dimensions: 56” X 38” X 125”Weight: 9,000 LbsINCLUDES: Operator Work Station with Palm Button Control, Geared Air Clutch, 3” Bolster Plate, One Shot Lube, Air Counter Balance, Brake Monitor, Forward & Reverse Feature and Stroke Counter.
