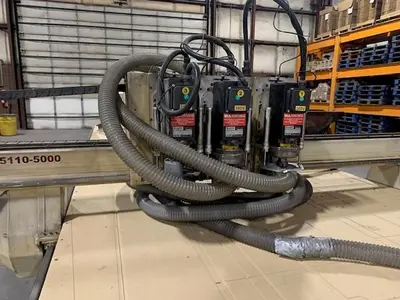

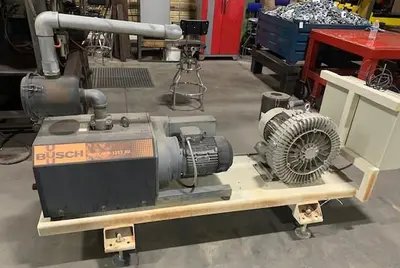

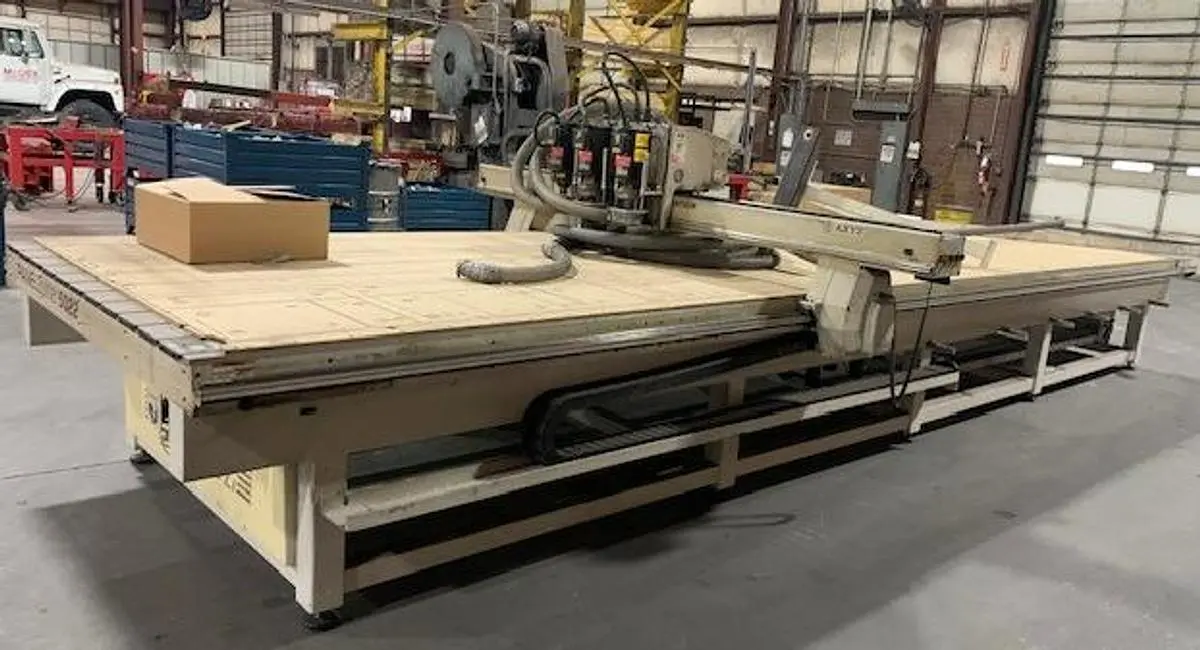

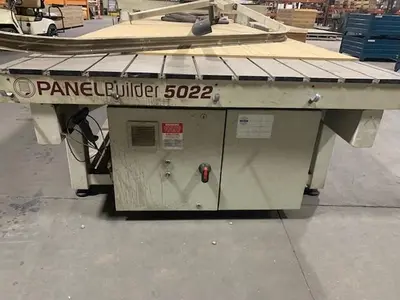

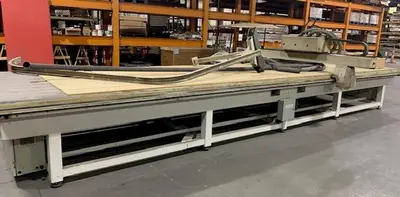

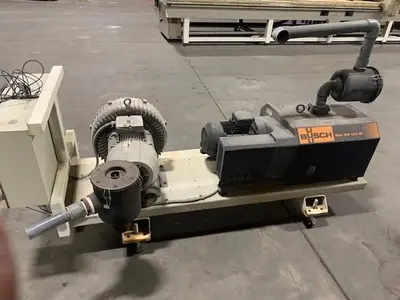

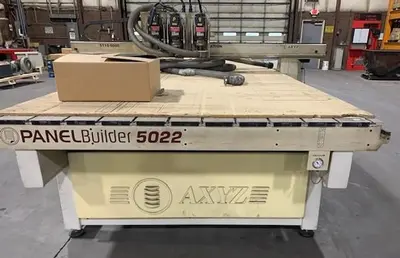

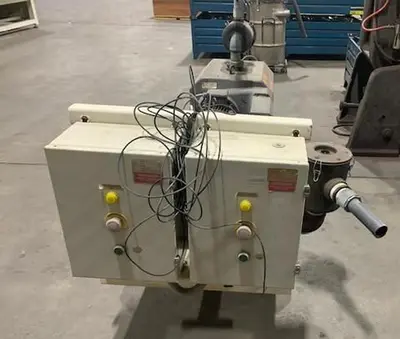

2014 AXYZ PanelBuilder 5022 CNC RouterThe Ultimate High-Volume Cladding & ACM Fabrication SolutionThis AXYZ 5022 PanelBuilder is a heavy-duty, industrial-grade CNC router specifically engineered for the high-speed processing of Aluminum Composite Materials (ACM), MCM, and large-format architectural panels. With a massive 22-foot process area, this machine is built for "Pendulum Processing"—allowing your team to load and unload one end of the table while the machine continues to cut on the other, ensuring maximum spindle uptime and unmatched productivity.Technical SpecificationsProcess Area: 60" x 264" (5' x 22')Table Type: High-capacity multi-zone vacuum bedSpindle Configuration: Triple-head carriage (3 5HP Elte/HSD spindles)Spindle Speed: Up to 24,000 RPMDrive System: Precision helical rack & pinion (X & Y axes)Traverse Speed: Up to 2,000 IPMGantry Clearance: 6" (150mm)Power: 240V or 480V / 3-PhaseKey Features & Production AdvantagesIntegrated PANELBuilder Software: Streamline your entire workflow from CAD/CAM nesting to automated label printing and panel tracking.Pendulum Processing Capability: Dual-zone vacuum controls and pneumatic material locating pins allow for continuous, non-stop production.Precision Depth Control: Features a specialized floating head nose rider system, essential for consistent V-grooving and folding of ACM without core damage.Rapid Material Alignment: Equipped with heavy-duty pneumatic pop-up pins for fast and repeatable sheet positioning.Versatile Material Processing: While optimized for ACM, this 5022 series excels with aluminum, wood, plastics, and high-pressure laminates.
* Table Type: High-capacity multi-zone vacuum bed
* Spindle Speed: Up to 24,000 RPM
* Traverse Speed: Up to 2,000 IPM
* Gantry Clearance: 6" (150mm)
