USED 1992 BARNES PE-25

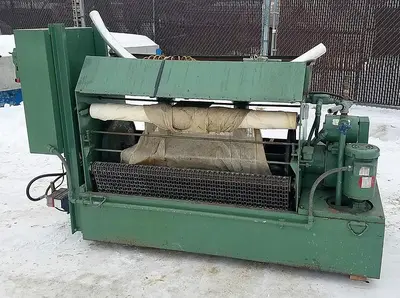

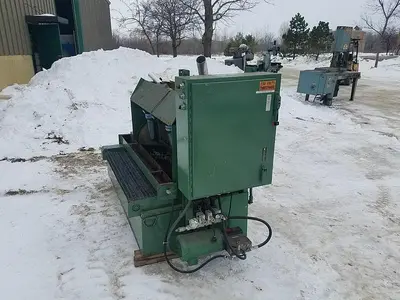

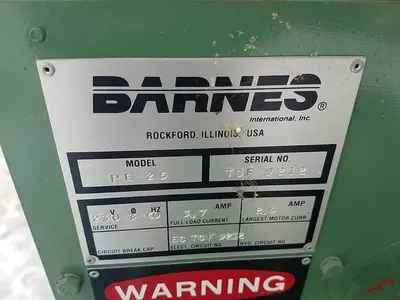

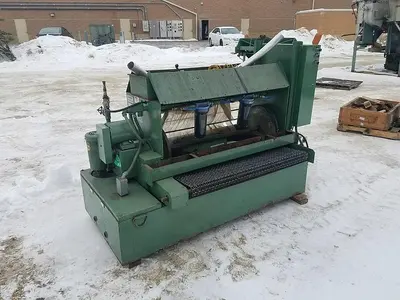

Barnes PE-25 Gravity Fabric Filtration System | 28 GPM | 1992The Barnes PE-25 is a high-efficiency "Deep Bed" gravity filter designed for the continuous removal of metallic and non-metallic contaminants from machine tool coolants. By utilizing a continuous roll of filter media, the PE-25 ensures that your grinding, honing, or milling operations are always supplied with clean, debris-free fluid. This not only extends the life of your coolant but also significantly improves workpiece surface finish and protects expensive machine tool spindles and ways.Manufactured in 1992 (S/N TCF-9212), this unit is built with the industrial-grade durability that made Barnes the industry leader in coolant management. The system features an automatic float-controlled indexing drive that advances fresh filter paper only as needed, ensuring maximum media efficiency and minimal operator intervention.Technical SpecificationsManufacturer: Barnes International, Inc.Model: PE-25Serial Number: TCF-9212Year of Manufacture: 1992 (December)Flow Rate (Water Soluble): 28 GPMFlow Rate (Straight Oil): 10 GPMMedia Width: 48"Indexing Drive: Automatic Float-Switch ControlledElectrical: 115V or 230/460V (typically configured for machine tool integration)Construction: Heavy-Gauge Carbon SteelKey FeaturesAutomatic Media Management: The float-switch-activated indexing system automatically advances the filter paper and discharges spent swarf into a waste bin, allowing for "lights-out" operation.Positive Seal Design: Engineered with heavy-duty side seals to prevent coolant bypass, ensuring 100% of the fluid passes through the filter media.Versatile Application: Ideally suited for surface grinders, cylindrical grinders, and honing machines where fine particulate removal is critical.Low Maintenance: Simple mechanical design with easily accessible components ensures decades of reliable service.

Item type: Fluid Filtration System
Steel Filtration Rate: 28 GPM
Cast Iron Filtration: 14 GPM
50 SSU Oil: 10.5 GPM
* Media Width: 48"
* Indexing Drive: Automatic Float-Switch Controlled
* Construction: Heavy-Gauge Carbon Steel
* Automatic Media Management: The float-switch-activated indexing system
