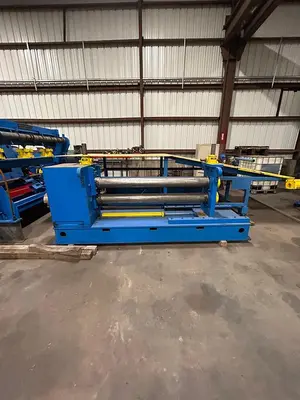

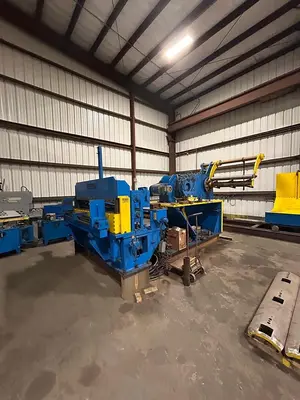

72" x .135" x 40,000 Lb. Bradbury Slitting Line

General Specifications:
Width Capacity: 72"
Gauge Range: .018" - .135"
Min/Max ID: 20" - 24"
Max OD: 72"
Weight Capacity: 40,000 Lbs.
Line Direction : Right to Left
Line Includes:
Coil Car, 53" Wide Bed

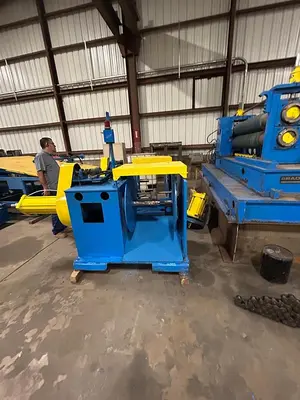

Uncoiler
70" Wide x 40,000 Lbs.
Attached Holddown
AC Feed Up Air Clutch
Slide Base
14" Shaft
20/24" Hydraulic Drum

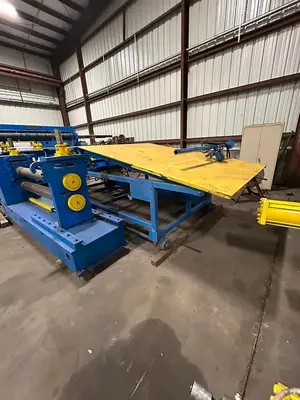

Peeler Table
Pinch Roll/Side Guide,
Top Roll Driven
Twin Screw Hydraulic Adjust
Approximately 7" Diameter Pinch Rolls Top Driven
Shear, Hydraulic Upcut, 84" Wide Blade

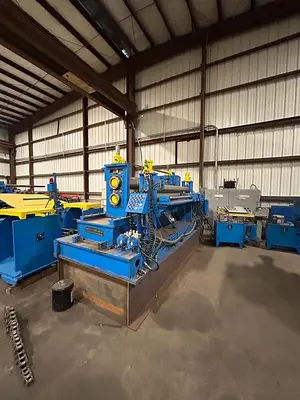

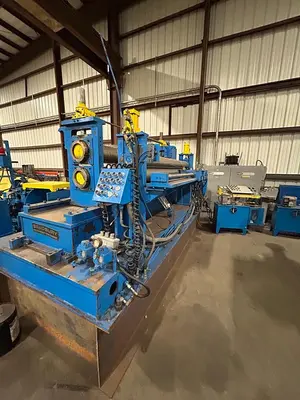

Slitter
With Entry Side guises and Pinch Rolls
With Overriding Outboard
Width Minimum 48"
15 HP AC Feed Up Thru Gearbox and Dog Clutch
Loop Pit Carry Over Table (In & Out on Wheels)

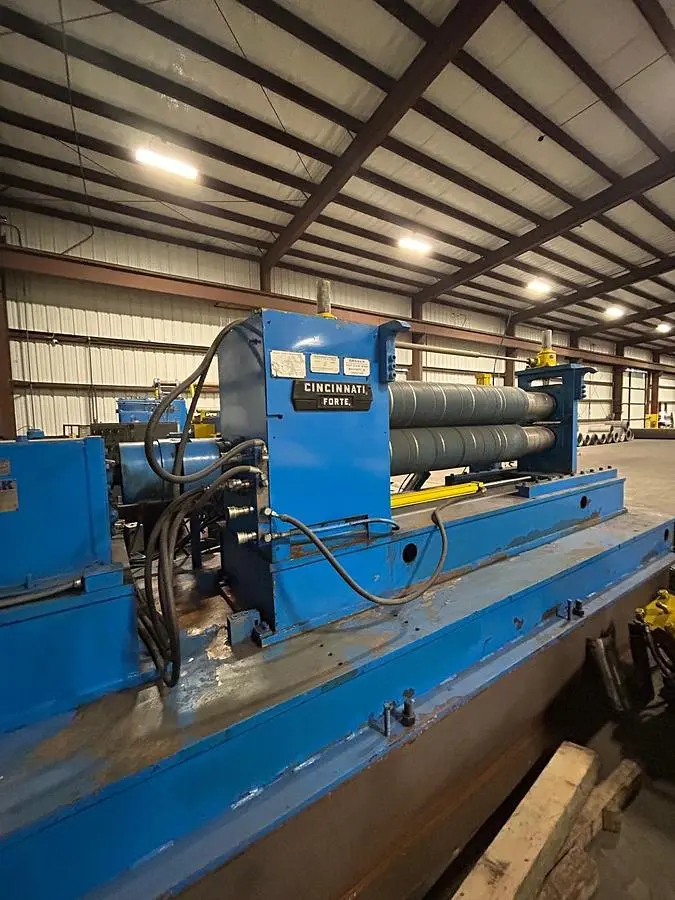

Tension Stand, Pad Type

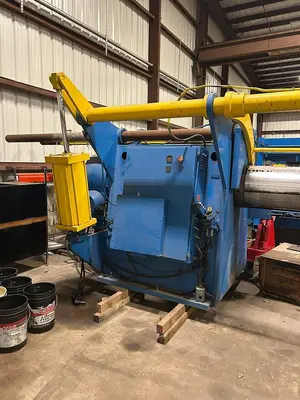

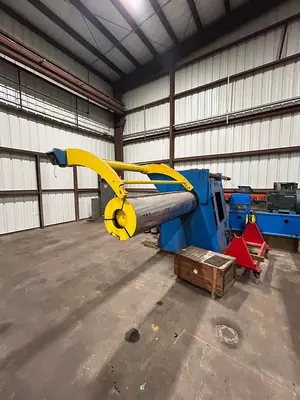

Recoiler
80" Wide x 20" Diameter Hydraulic Drum with Hydraulic Gripper
Model #13343
Attached Overarm Separator
Hydraulic Push Off
150 HP, 1790/2685 RPM, 460V Baldor Motor
Gearbox, 3 Speed 3.454:1; 1.750 & 1:1 Ratios
Thru Main Gearbox Right Angle
Scrap Winders (2), Hydraulic Self Dump
