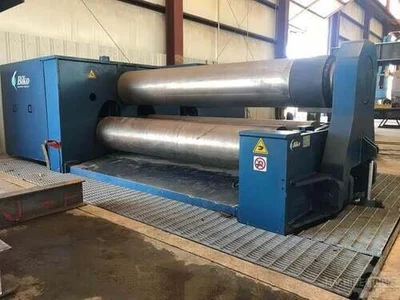

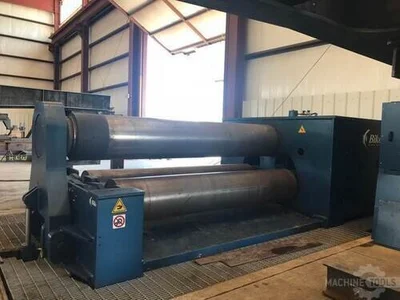

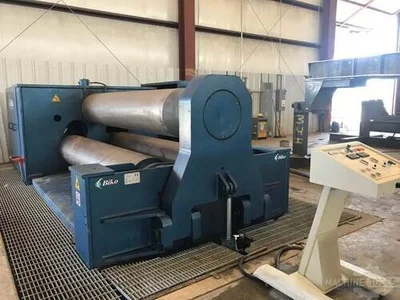

USED 2014 FACCIN B3-3158
Overview
Description
2.36” X 120” Hydraulic 3-Roll Plate Roll with Hydraulic Drop End, Independently Powered Hydraulic Rolls, Variable Rolling Speeds, Hydraulic Roll Adjustment, Induction Hardened Rolls, Cone Rolling Package and Digital Display
Specifications
| Length of Rolls | 10' | 3 m |
|---|---|---|
| (Init/Dbl Pinch or Pyramid) | PYRAMID | PYRAMID |
| Max Thickness | 2.36" | 59.944 mm |
| # Rolls | 3 | 3 |
| Hyd/Mech | Hyd | Hyd |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 75 hp | 55.9 kW |
| Roll Diameter | 22.83" | 579.88 mm |
2.36” X 120” Hydraulic 3-Roll Plate Roll with Hydraulic Drop End, Independently Powered Hydraulic Rolls, Variable Rolling Speeds, Hydraulic Roll Adjustment, Induction Hardened Rolls, Cone Rolling Package and Digital Display
GENERAL SPECIFICATIONS Bending Capacity: 2.36” X 10’Pre-Bend Capacity At 5 X Top Roll Diameter: 1.96 X 10”Pre-Bend Capacity At 1.3 X Top Roll Diameter: 1.57 X 10’ Diameter Of Top Roll: 22.83”Diameter Bottom Rolls: 21.25”Main Motor: 75 HPApproximate Weight: 92,600 LBS
INCLUDES: Hydraulic Drop End, Independently Powered Hydraulic Rolls, Variable Rolling Speeds, Hydraulic Roll Adjustment, Induction Hardened Rolls, Cone RollingPackage and Digital Display
