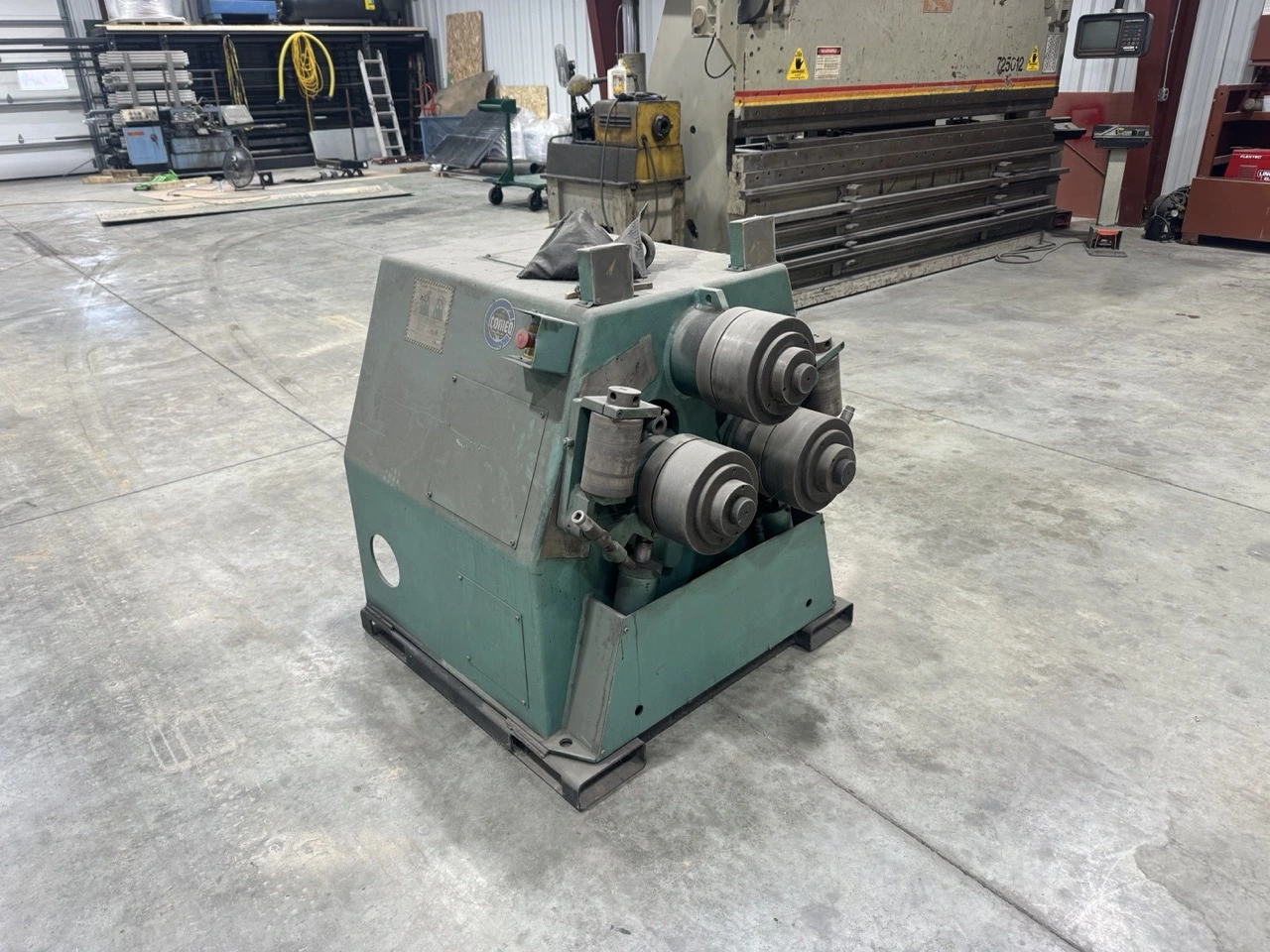

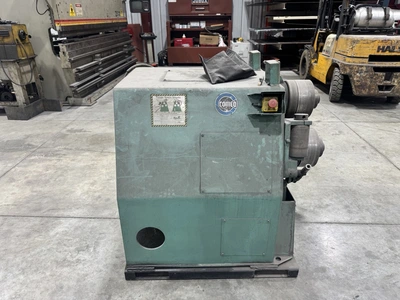

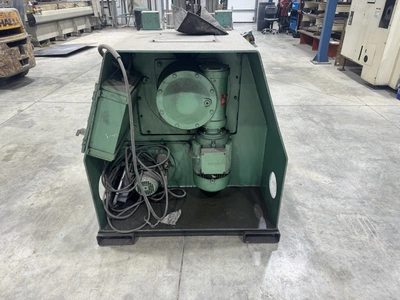

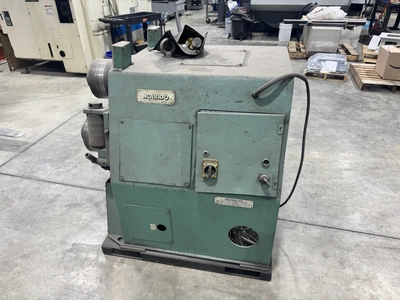

USED 1988 ROUNDO R-3

Capacity: 3” x 3” x 0.277“

Angles (Leg Out): 3″ x 3″ x 5/16″
Angles (Leg In): 2-1/2″ x 2-1/2″ x 5/16″
Flat Bar (on Flat): 3/4″ x 8″
Flat Bar (on Edge): 5/8″ x 3″
Pipe Capacity: 2-1/2″ diameter (Standard Schedule 40 pipe up to 2″)
Square Bar: Up to 1-3/4″ (45 mm)
Round Bar: Up to 2″ (50 mm)
Roll Diameter: 9″ (225 mm)
Shaft Diameter: 3″ (approx. 75 mm)
Bending Speed: Approximately 23 FPM (7 m/min)
Motor Power: 5 HP to 5.5 HP (4 kW)
Approx. Weight: 4,000 lbs
Approx. Dimensions: 41″ x 45″ x 41″
