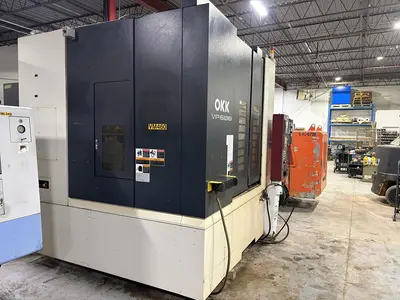

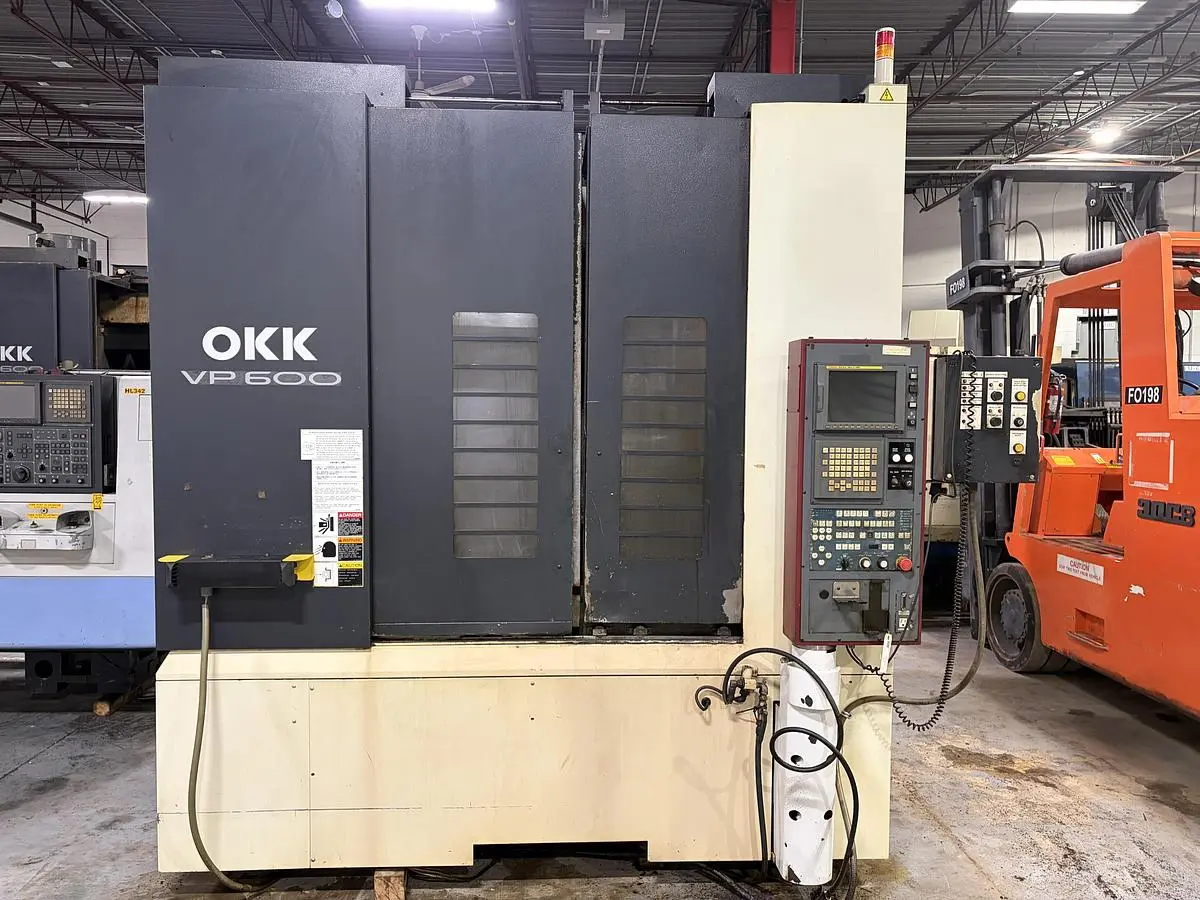

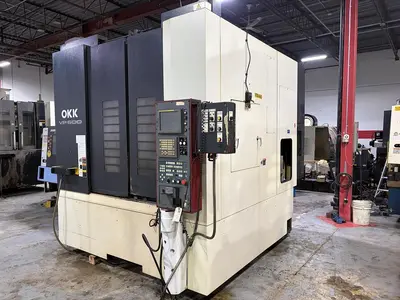

The OKK VP600 is a reliable CNC vertical machining center built for precision milling and consistent production performance. Featuring travels of 24" (X), 16" (Y), and 18" (Z) with a 28.7" × 16.5" table, this machine provides excellent rigidity for small to medium-sized parts. Equipped with a 10,000 RPM HSK-63 spindle, 20 HP spindle motor, and 20-tool automatic tool changer, the VP600 delivers high-speed machining capability and efficient tool changes. Controlled by Fanuc Series 180iS-MB and complete with coolant system and full enclosure, it is ideal for job shops and precision manufacturing environments.
X-Axis Travel: 24"
Y-Axis Travel: 16"
Z-Axis Travel: 18"

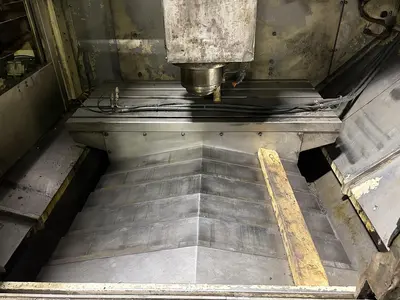

Table Size: 28.7" × 16.5"
Table Load Capacity: 1,320 LBS

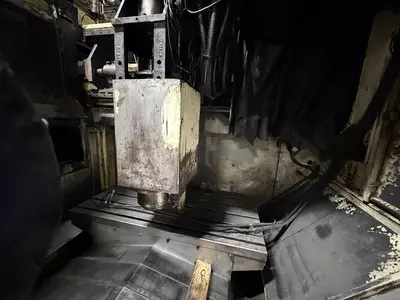

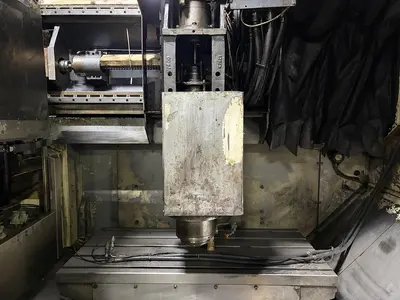

Spindle Speed: 10,000 RPM
Spindle Taper: HSK-63
Spindle Motor: 20 HP
Rapid Traverse X/Y: 1,181 IPM
Rapid Traverse Z: 945 IPM
Automatic Tool Changer: 20 ATC
Max Tool Diameter: 3.5"
Max Tool Length: 11.8"
Max Tool Weight: 13 LBS
Approx Machine Weight: ~11,000 LBS

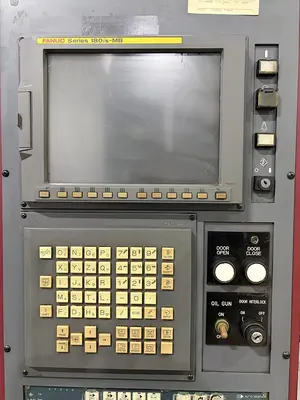

Fanuc Series 180iS-MB CNC Control

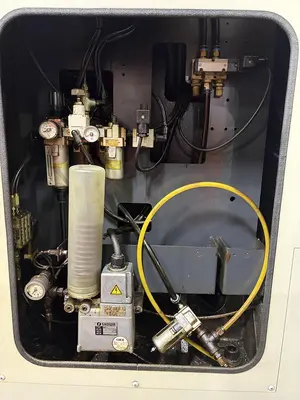

High pressure through spindle coolant
Chip Conveyor
Coolant Tank
