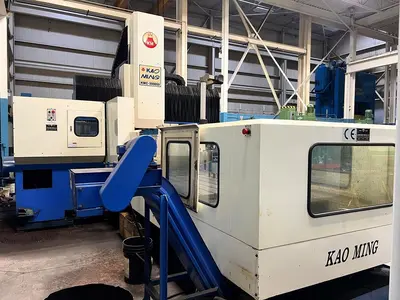

USED 1998 KAO MING KMC-3000 SD

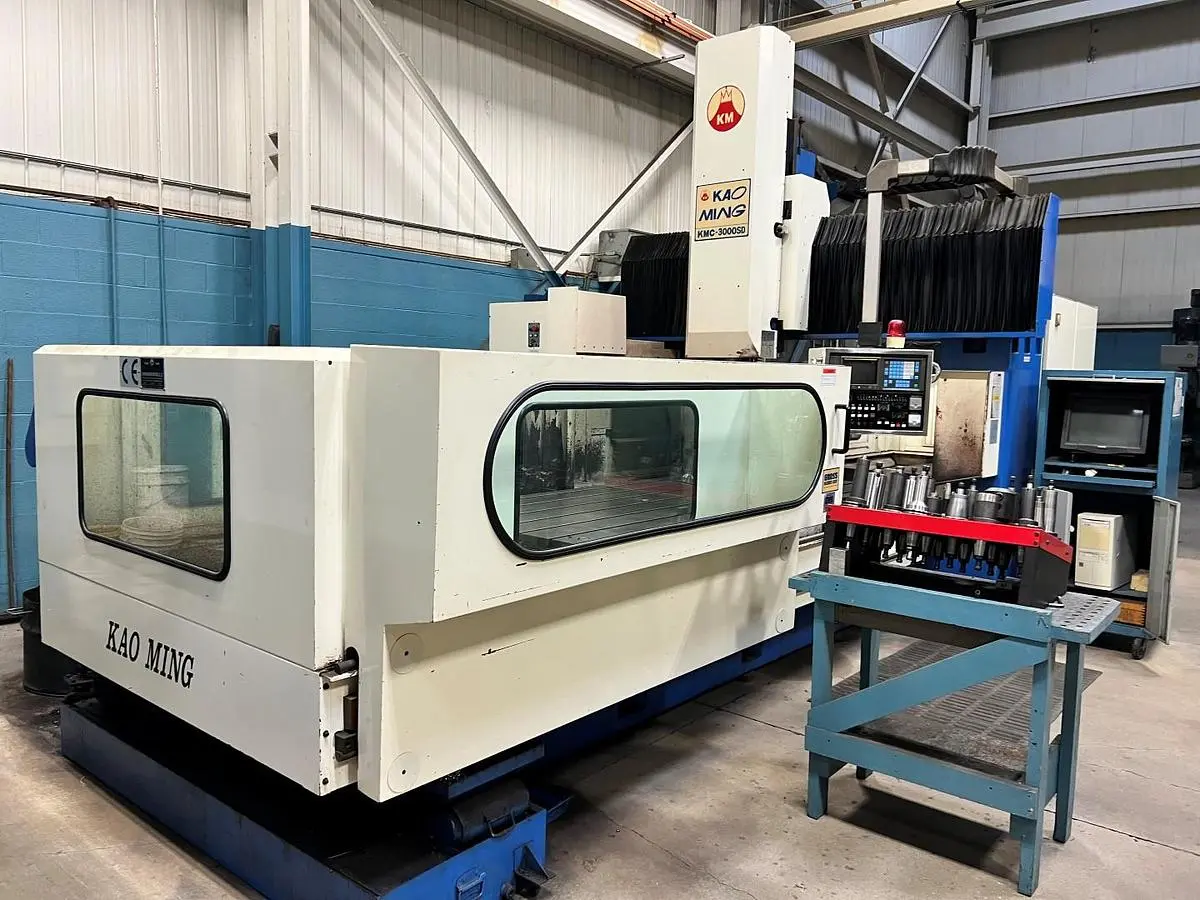

The Kao Ming KMC-3000SD is a heavy-duty double column vertical machining center built for large-part and high-rigidity machining. Featuring a massive 118" × 49" table, 7,000 kg load capacity, and travels of 98.4" (X), 63" (Y), and 27.6" (Z), this machine is ideal for mold work, aerospace, and heavy fabrication. Equipped with a CAT50 spindle, up to 3,200 RPM, and a high-capacity automatic tool changer, the KMC-3000SD delivers strong torque and precision. Controlled by Fanuc, and complete with coolant system and chip conveyor, it is a reliable solution for demanding large-scale machining applications.

X Axis Travel: 2500 mm (98.4")
Y Axis Travel: 1600 mm (63.0")
Z Axis Travel: 700 mm (27.6")

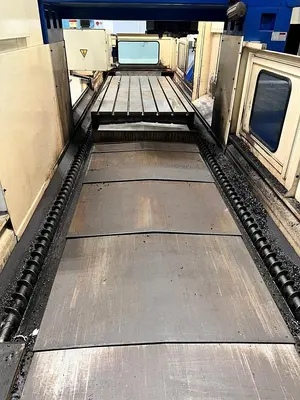

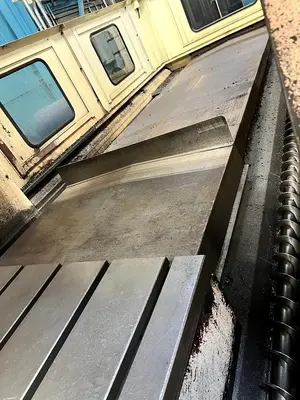

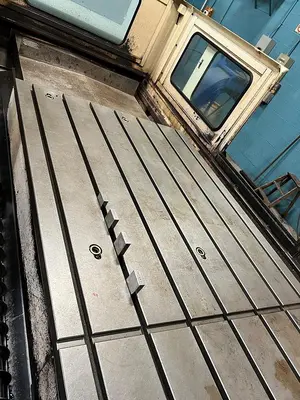

Table Size: 3000 mm x 1250 mm (118.1" x 49.2")
Table Load Capacity: 7000 kg (15432.0 lb)
Distance Between Columns: 1600 mm (63.0")
Spindle Speed: 20 - 3200 RPM
Spindle Taper: ISO 50 / CAT 50
Spindle Motor: 20 HP / 25 HP
Tool Changer Capacity: 30 ATC
Rapid Traverse Rate: 12000 mm/min (472.4 in/min)
Cutting Feed Rate: 1 - 5000 mm/min (1 - 196.9 in/min)
Repeatability: 0.003 mm (0.0001")
Machine Height: 4250 mm (167.3")
Machine Weight Approx.: 27000 kg ( 59525 lb)

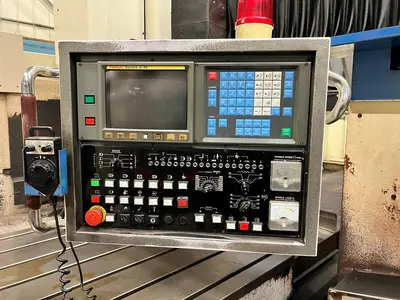

Fanuc Series 18-M CNC Control (Typical)

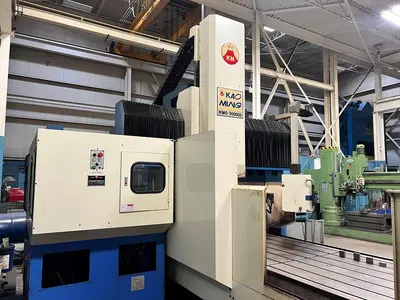

Double Column Bridge Construction

CAT 50 Spindle

Automatic Tool Changer

Coolant System

Chip Conveyor (if equipped)
