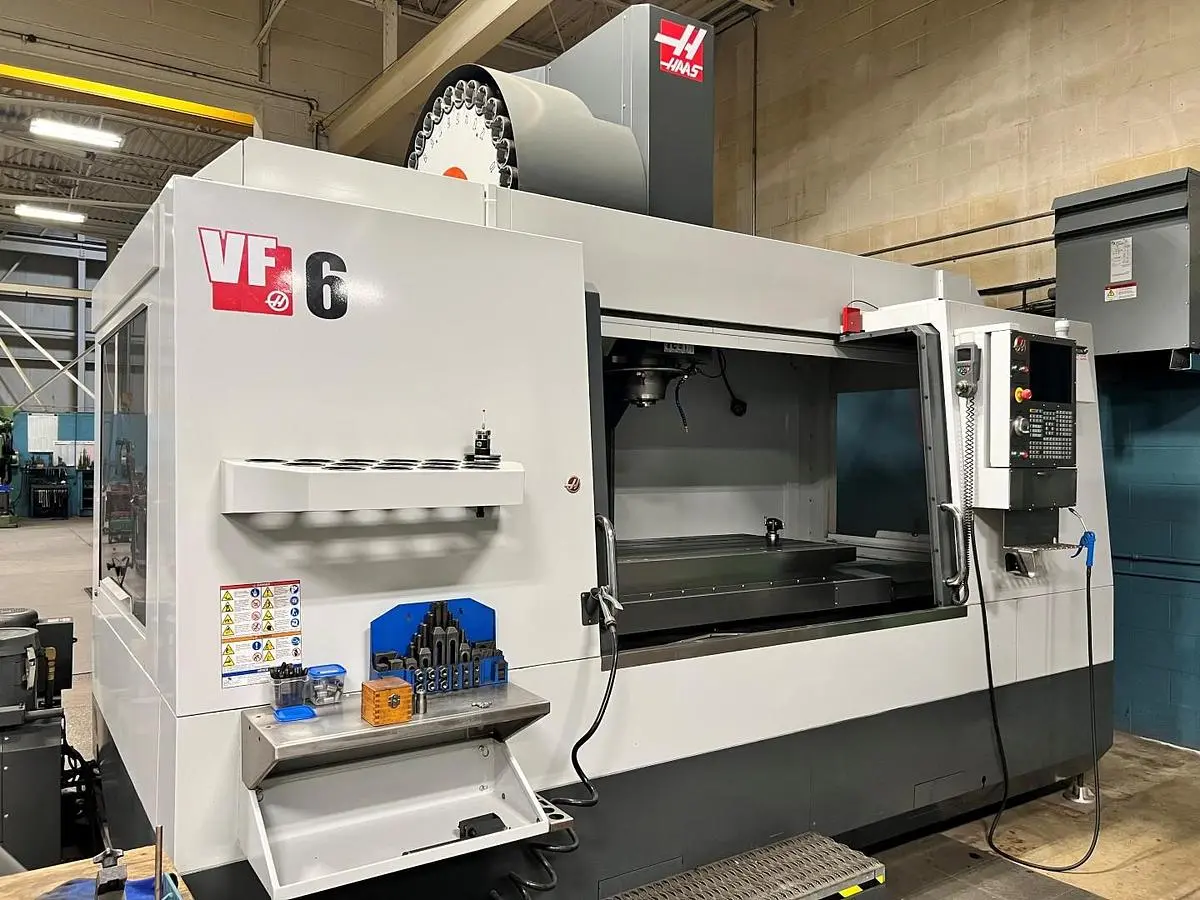

The Haas Automation VF-6/50 is a powerful CNC vertical machining center built for large-part machining and heavy-duty cutting. This 2015 machine features 64" (X), 32" (Y), and 30" (Z) travels with a large 72" × 28" table and 4,000 lb load capacity. Equipped with a CAT50 spindle, 7,500 RPM, and a 30 HP motor, it delivers strong torque for demanding applications. With a 24-tool changer, through spindle coolant, and fast rapids, the VF-6/50 is ideal for production machining, mold work, and heavy milling operations. Controlled by Haas CNC and complete with chip conveyor and coolant system.
X Axis Travel: 1626 mm (64.0")
Y Axis Travel: 813 mm (32.0")
Z Axis Travel: 762 mm (30.0")

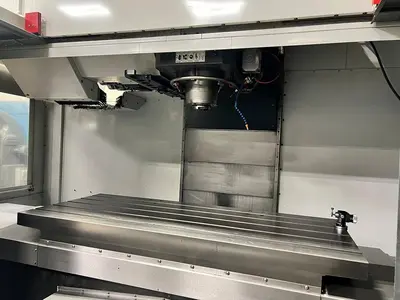

Table Size: 1829 mm x 711 mm (72.0" x 28.0")
Table Load Capacity: 1814 kg (4000.0 lb)
Spindle Speed: 7500 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Tool Changer Capacity: 24
Rapid Traverse Rate: 15240 mm/min (600.0 in/min)
Cutting Feed Rate: 10160 mm/min (400.0 in/min)
Machine Weight Approx.: 10433 kg (23000.0 lb)

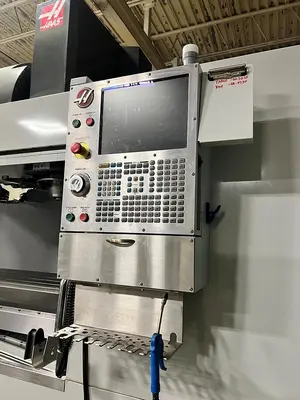

Haas CNC Control
CAT 50 Spindle
Through Spindle Coolant
Chip Conveyor

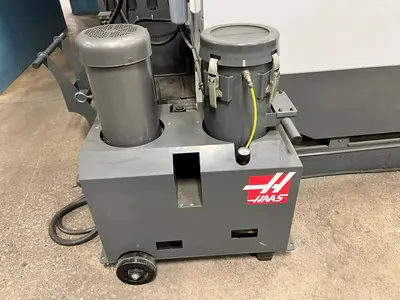

Coolant Tank
