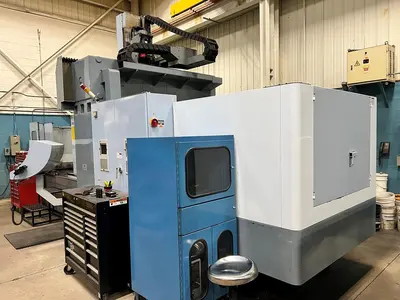

USED 2001 KAO MING KMC-3000SV
Overview
Description

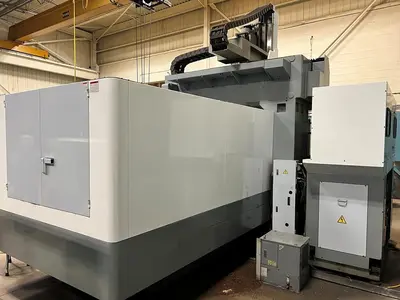

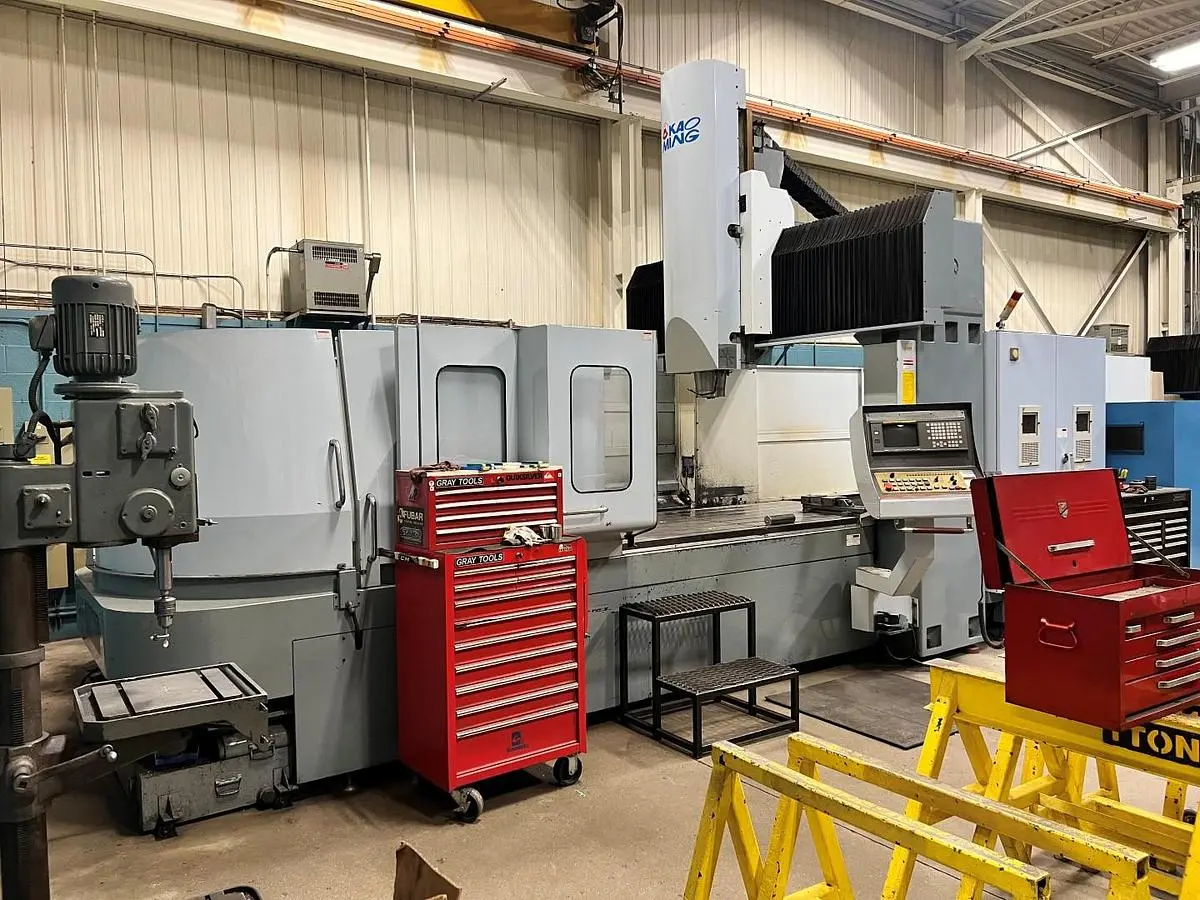

The Kao Ming KMC-3000SV is a heavy-duty double column machining center built for large-part, high-precision milling. Featuring extended travels of 118" (X), 63" (Y), and 33.5" (Z) with a massive 118" × 49" table and 7,000 kg load capacity, this machine is ideal for mold making, aerospace, and heavy fabrication. Equipped with a CAT50 spindle, up to 3,200 RPM, and a 30-tool automatic tool changer, the KMC-3000SV delivers strong cutting performance and stability. Controlled by Fanuc Series 18-M and complete with coolant system and chip conveyor, it is a reliable solution for demanding large-scale machining applications.
Specifications
X Axis Travel: 3000 mm (118.1")
Y Axis Travel: 1600 mm (63.0")
Z Axis Travel: 850 mm (33.5")

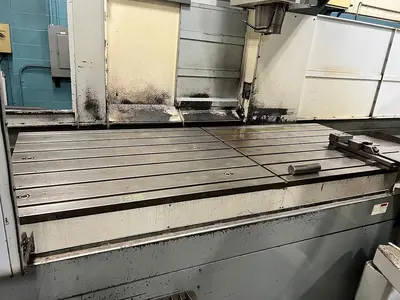

Table Size: 3000 mm x 1250 mm (118.1" x 49.2")
Table Load Capacity: 7000 kg (15432.0 lb)
Distance Between Columns: 1600 mm (63.0")
Spindle Speed: 20 - 3200 RPM
Spindle Taper: ISO 50 / CAT 50
Spindle Motor: 20 HP / 25 HP
Tool Changer Capacity: 30 ATC
Rapid Traverse Rate: 12000 mm/min (472.4 in/min)
Cutting Feed Rate: 1 - 5000 mm/min (1 - 196.9 in/min)
Positioning Accuracy: 0.005 / 300 mm (0.0002")
Repeatability: 0.003 mm (0.0001")
Machine Height: 4250 mm (167.3")
Machine Weight Approx.: 29000 kg (63934 lb)
Equipped With

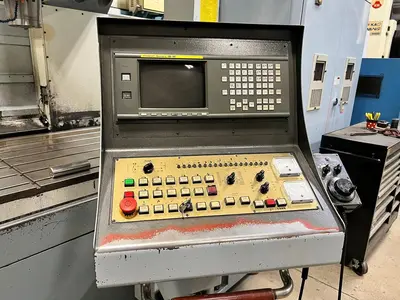

Fanuc Series 18-M CNC Control

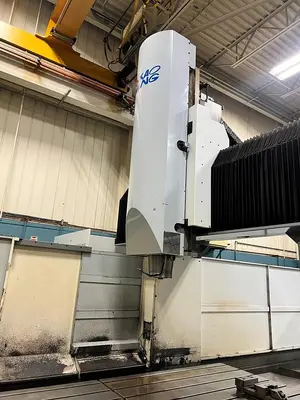

Double Column Bridge Construction
CAT 50 Spindle
Automatic Tool Changer
Coolant System

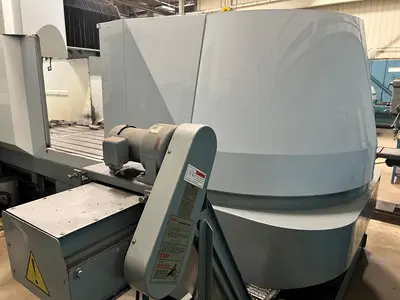

Chip Conveyor
