USED 1995 DAH LIH MCV-1500
Overview

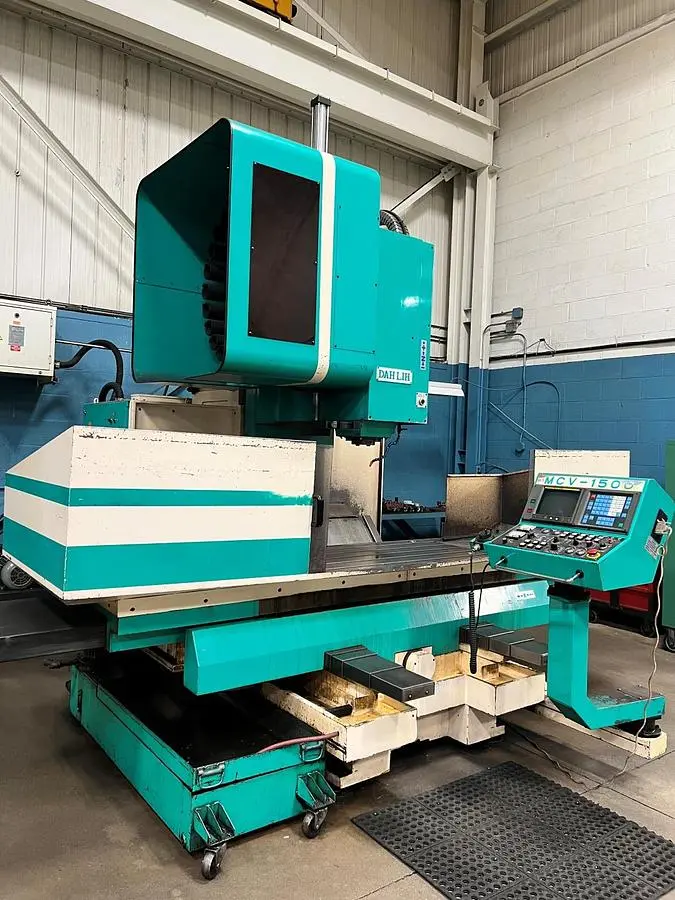

The Dah Lih MCV-1500 is a heavy-duty CNC vertical machining center designed for large-part milling and reliable production work. Featuring 59.1" (X), 24.8" (Y), and 27.6" (Z) travels with a 66.9" × 26.6" table and 3,300 lb load capacity, this machine offers excellent rigidity and capacity. Equipped with a CAT50 spindle, 4,500 RPM, and a 24-tool automatic tool changer, the MCV-1500 delivers solid cutting performance for demanding applications. Controlled by Fanuc Series 0-M and complete with coolant tank, spindle chiller, and hydraulic system, it is ideal for job shops and heavy machining environments.
Specs
X Axis Travel: 1500 mm (59.1")
Y Axis Travel: 630 mm (24.8")
Z Axis Travel: 700 mm (27.6")
Table Size: 1700 mm x 675 mm (66.9" x 26.6")
Table Load Capacity: 1500 kg (3306.9 lb)
Spindle Speed: 4500 RPM
Spindle Taper: ISO 50 / CAT 50
Tool Changer Capacity: 24
Rapid Traverse Rate: 20000 mm/min (787.4 in/min)
Cutting Feed Rate: 10000 mm/min (393.7 in/min)
Equipped With

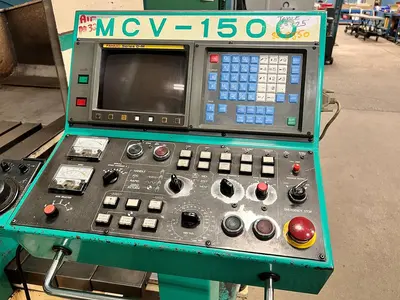

Fanuc Series 0-M CNC Control

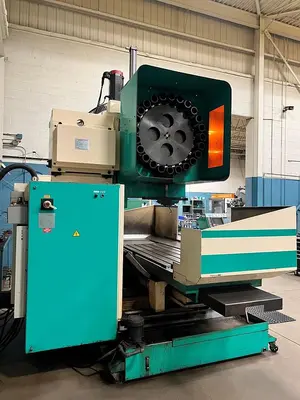

24 Position Automatic Tool Changer
Coolant Tank

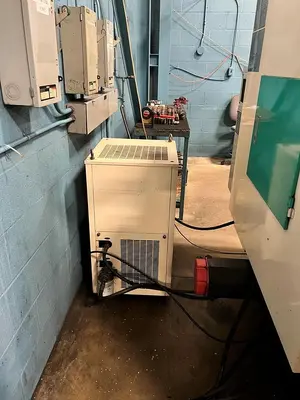

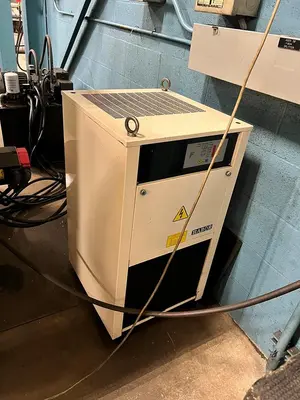

Spindle Chiller

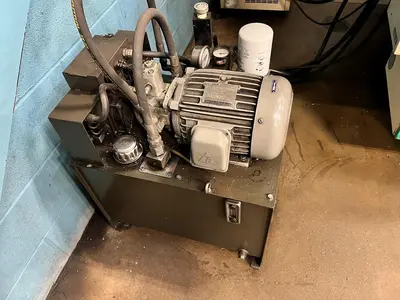

Hydraulic Tank
