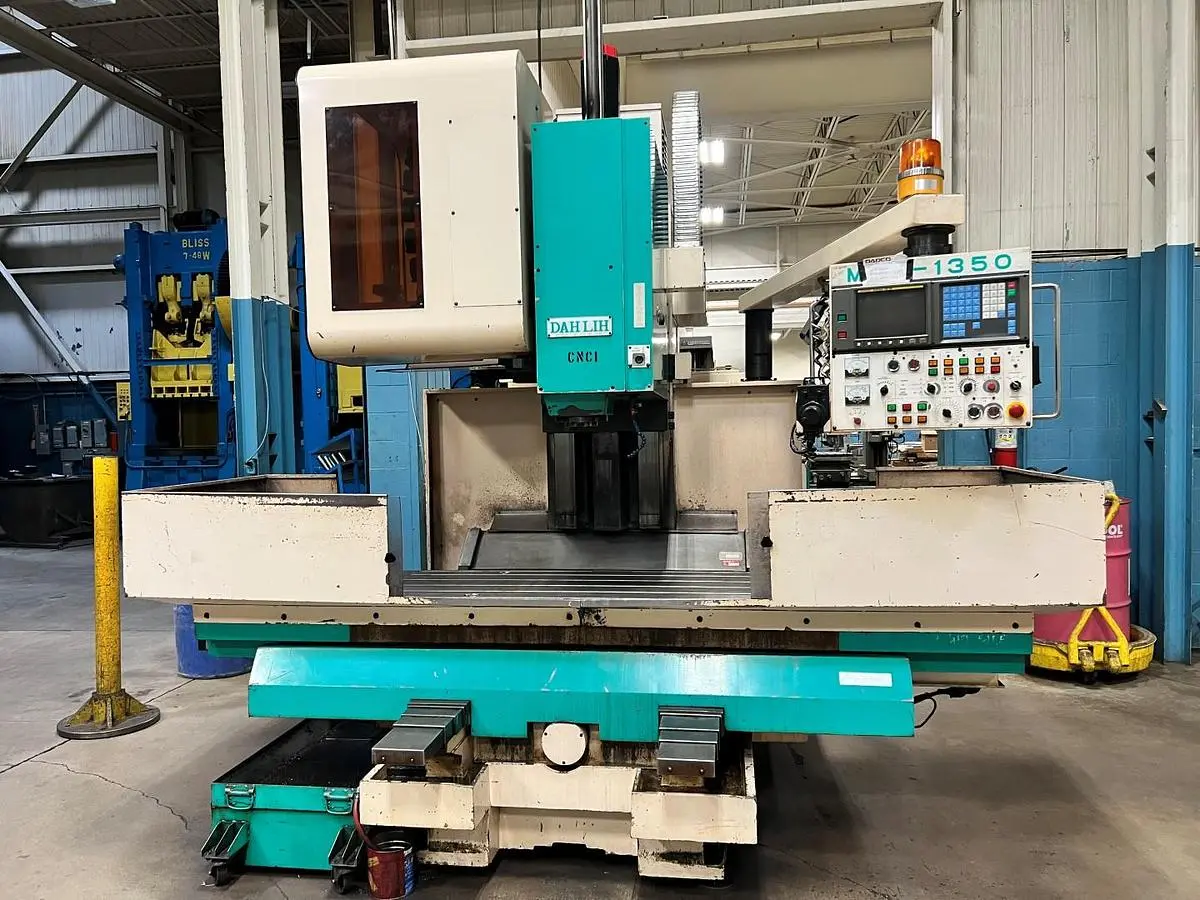

USED 1993 DAH LIH DL-MCV1350
Overview
The Dah Lih DL-MCV1350 is a heavy-duty CNC vertical machining center designed for large-part milling and reliable production machining. Featuring travels of 53.1" (X), 25.6" (Y), and 25.6" (Z) with a 59" × 23.6" table and 2,645 lb load capacity, this machine offers excellent rigidity and workspace. Equipped with a CAT50 spindle, 6,000 RPM, and a 24-tool automatic tool changer, the DL-MCV1350 delivers strong cutting performance for demanding applications. Controlled by Fanuc Series 15-M and complete with coolant system, it is ideal for job shops and heavy machining environments.
Specs
X Axis Travel: 1350 mm (53.1")
Y Axis Travel: 650 mm (25.6")
Z Axis Travel: 650 mm (25.6")

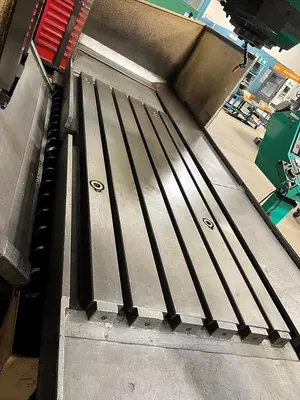

Table Size: 1500 mm x 600 mm (59.1" x 23.6")
Table Load Capacity: 1200 kg (2645.5 lb)
Spindle Speed: 6000 RPM
Spindle Taper: ISO 50 / CAT 50
Tool Changer Capacity: 24
Rapid Traverse Rate: 18000 mm/min (708.7 in/min)
Cutting Feed Rate: 8000 mm/min (315.0 in/min)
Machine Weight Approx.: 14000 kg (30864.7 lb)
Equipped With

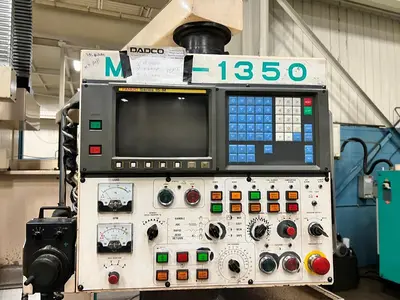

Fanuc Series 15-M CNC Control

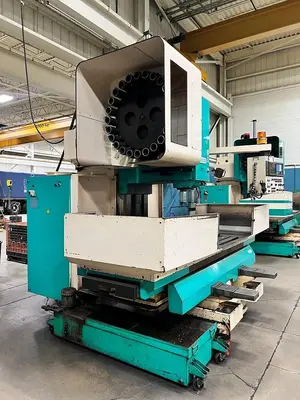

24 Position Automatic Tool Changer
Coolant System
