Tank, 15,000 Gallon, Vertical, 304L Stainless Steel, ASME, #5991729

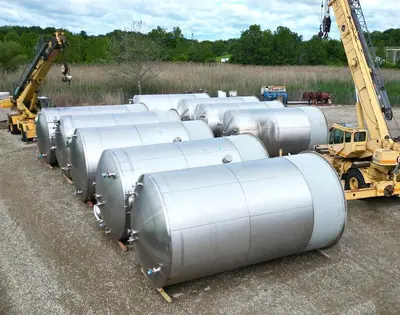

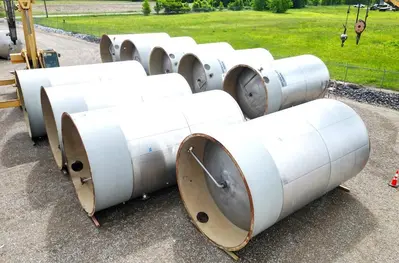

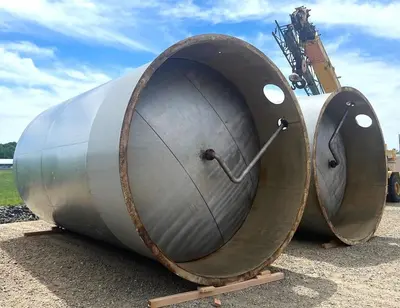

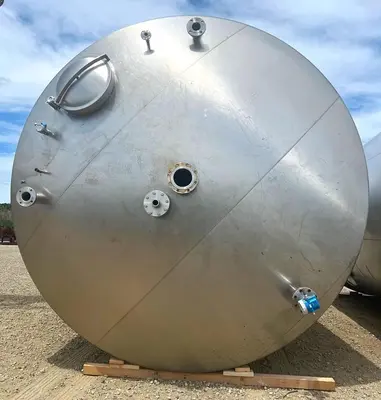

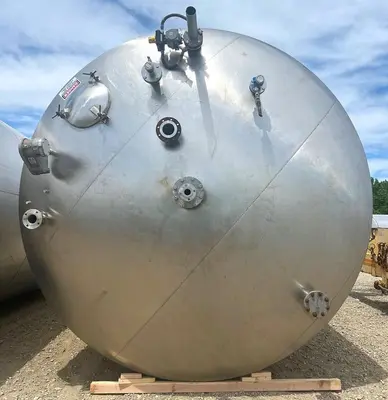

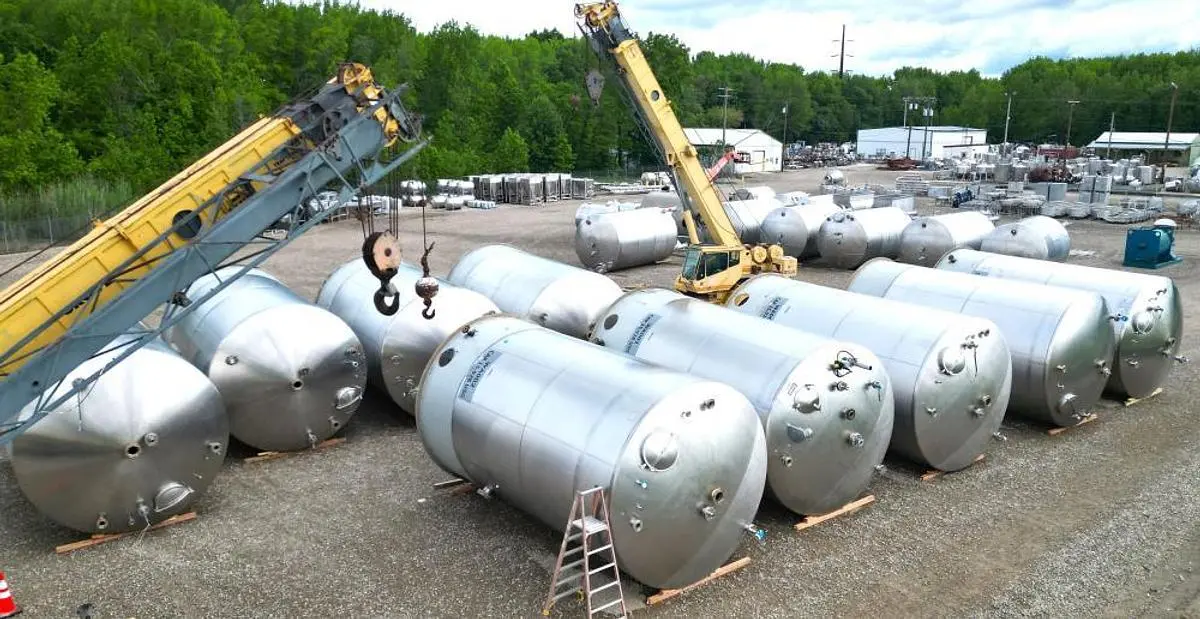

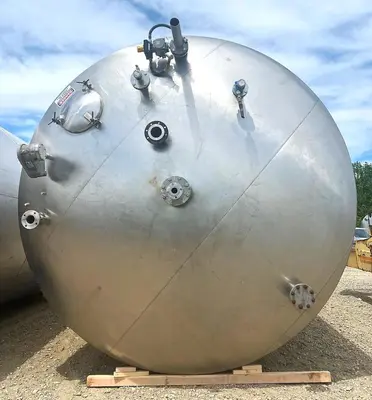

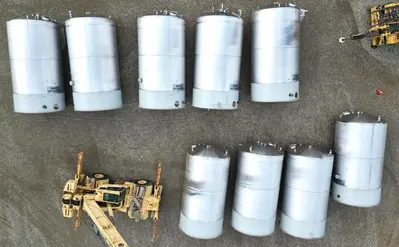

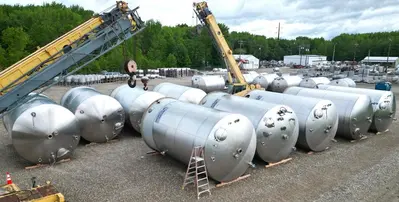

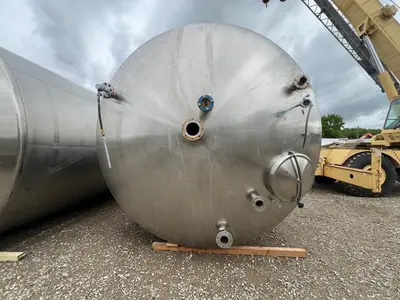

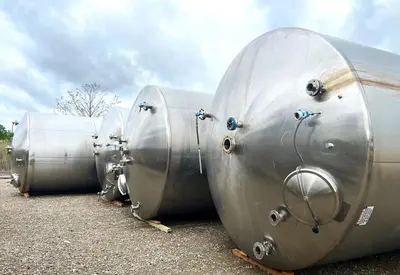

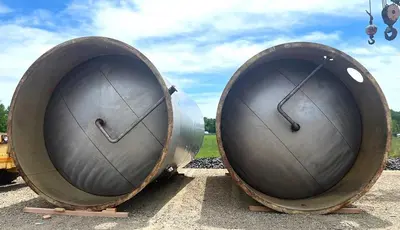

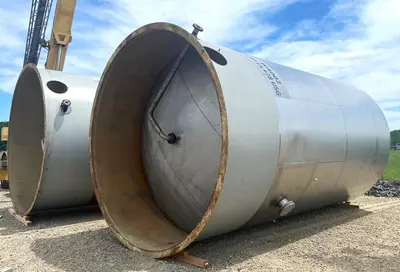

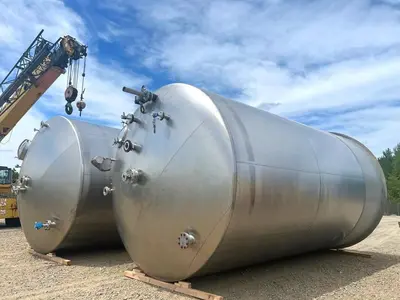

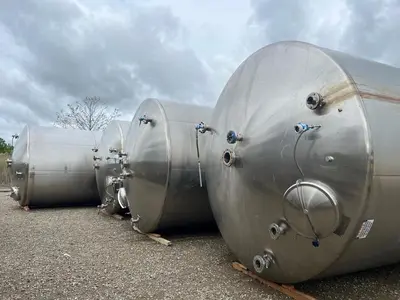

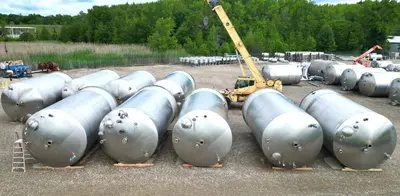

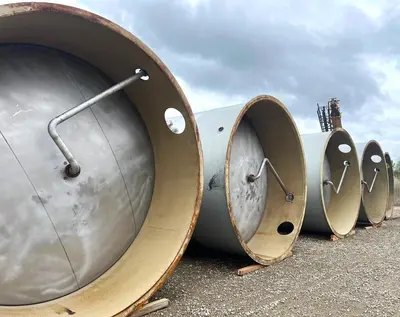

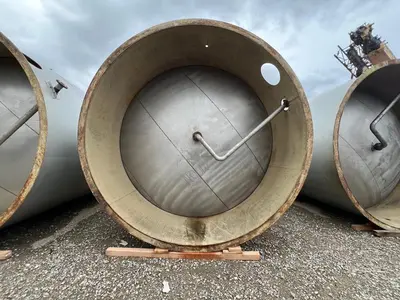

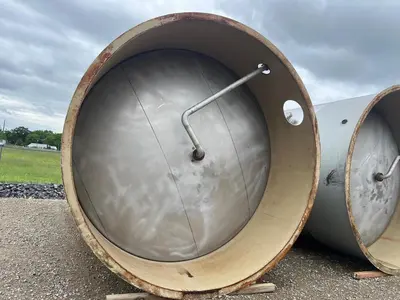

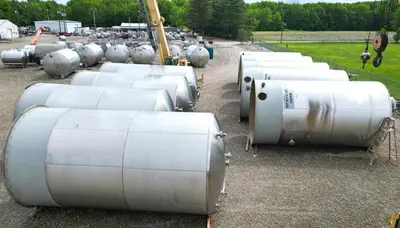

Stainless Steel approximately 15,000 gallon 304L stainless steel storage tanks designed and constructed in accordance with ASME Section VIII Division 1 and National Board registered. Tanks are vertical vessels currently stored on their side and fabricated with 5/16" minimum wall thickness (SA-240-304L) and Brighton Tru-Edge heads. Rated for 1 PSI @ 212 deg. F. Each unit includes (1) 24" (610 mm) 150# bolted manway, (12) 2" (50.8 mm) 150# RF nozzles, (1) 3" (76.2 mm) 150# RF nozzle, and (4) heavy-duty stainless steel lifting lugs. Vessel is rated for approximately 1 PSI at 212°F and is suitable for atmospheric or low-pressure storage applications.

Stock Number: 5991729
Manufacturer: Paul Mueller
Gallons: 15,000
Materials of Construction: 304L Stainless Steel
Vessel MAWP: 1 PSI @ 212°F
External MAWP: 0.36 PSI @ 212°F
Wall Thickness: 5/16" (7.9 mm)
Manway: 24" (610 mm) 150# bolted
Nozzles: (12) 2" (50.8 mm), (1) 3" (76.2 mm)
Construction: ASME Section VIII, Div. 1
Condition: Used
Basis: FOB
