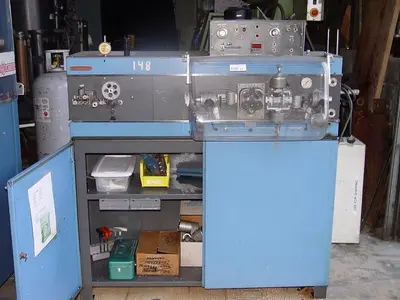

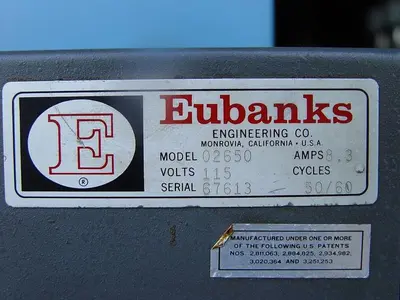

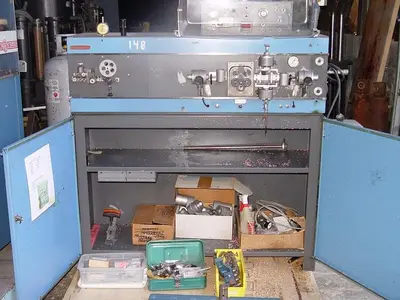

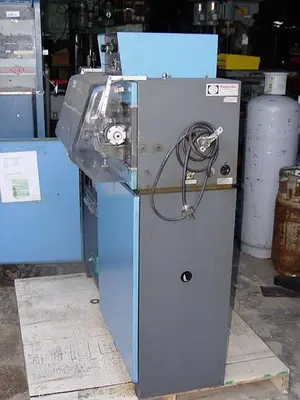

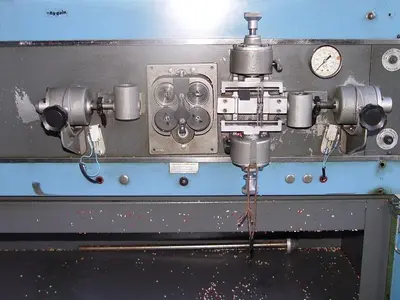

Eubanks 02650 Automated Wire Stripper | 26-12 AWG | S/N 67613The Eubanks 02650 is a precision, bench-top automated wire processor designed to measure, cut, and strip wire leads with exceptional speed and accuracy. Engineered for the high-demand environment of electronics and wire harness manufacturing, this unit handles wire sizes from 26 AWG to 12 AWG. The 02650 utilizes a high-speed pneumatic cutting and stripping head combined with an electronic feed system, ensuring clean strips without damage to the conductor.This specific unit (S/N 67613) is a "workhorse" grade machine featuring the digital keypad interface for rapid programming of wire lengths and batch quantities. Whether you are producing short jumpers or long power leads, the Eubanks 02650 delivers the repeatability and throughput necessary to streamline any wire processing operation.Technical SpecificationsManufacturer: Eubanks Engineering Co.Model: 02650Serial Number: 67613Wire Size Range: 26 AWG to 12 AWGWire Lengths: 0.1" to 99,999"Strip Lengths: Up to 1" (Standard)Drive System: Electric Feed Rollers / Pneumatic Cutting HeadPower: 115V / 60HzAir Requirements: 80-100 PSI (Clean, dry air)Controller: Digital Keypad with Batch CounterSizes also include:1/16 x 3/321/4 x 3/321/8 x 3/321/8 x 1/89/32 x 9/325/32 x 1/41/16 x 1/1626 AWG blades32 AWG bladesguidesKey FeaturesHigh-Speed Pneumatics: Provides clean, aggressive stripping action that is ideal for tough insulations like Teflon, PVC, and Kynar.Slug-On Capability: Can be programmed to leave the insulation slug on the end of the wire to prevent fraying during secondary assembly processes.Repeatable Accuracy: Electronic length control ensures that every lead in a 1,000-piece batch is identical, minimizing material waste.Proven Durability: The 60,000-series Eubanks units are known for their heavy-duty internal components and long-term serviceability.
* Wire Lengths: 0.1" to 99,999"
* Strip Lengths: Up to 1" (Standard)
* Power: 115V / 60Hz
