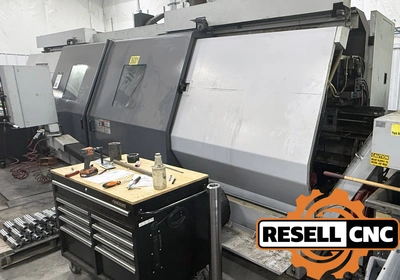

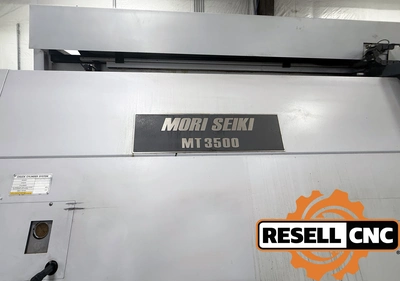

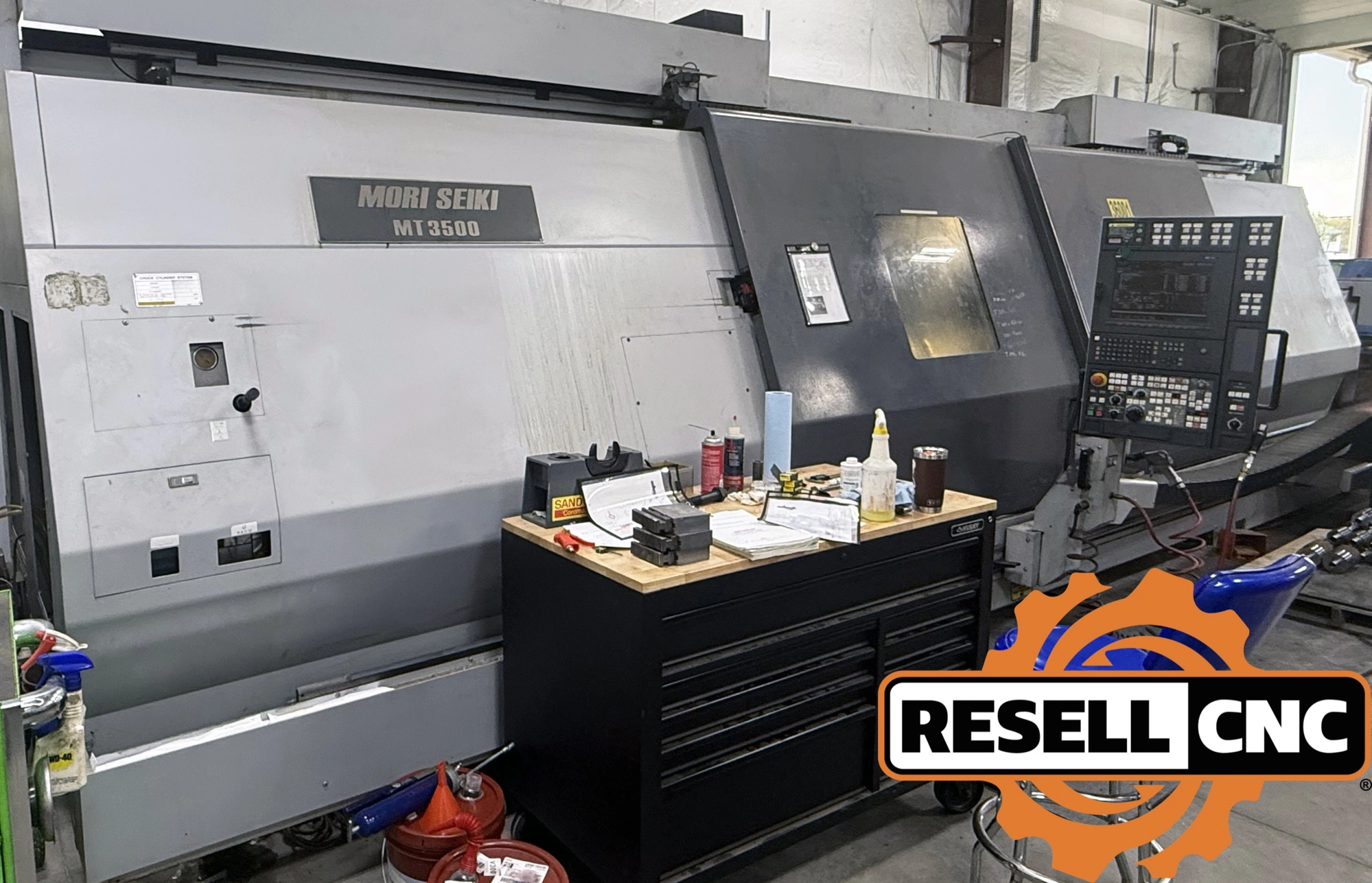

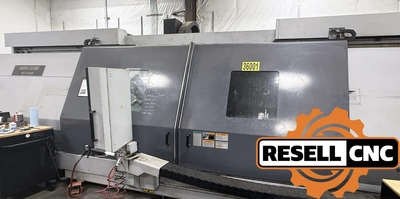

USED 2005 Mori Seiki MT3500S/3500

X2nd Chuck Description: 3-Jaw Chuck
X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: MAPPS Software

Additional Machine Specs: Y-Axis Travel: +/- 4.3"

Universal Head

(2) 12" Programmable Turn Through Steady Rest

C-Axis Synchronize Function

120° B-Axis Travel

Cool Jet High Pressure Coolant System (1000 PSI)

Hydraulic Unit

B-Axis Universal Head Swivel: 120°

Universal Head Rotary Tool Horsepower : 15 HP

Universal Head Rotary Tool Spindle Speeds: 8,000 RPM

C-Axis on Both Spindles: .001°

Boring Bar Stocker Option

Bar Capacity: 3.75
B Axis: true
B Axis Travel: +/- 4.3"
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: 3-Jaw Chuck
Chuck Size: 12.0
Chuck Type: Hydraulic
Control Make Model: Mori Seiki MSX-501 (Fanuc 18iTB)
Coolant Type S: Thru-Spindle Coolant, High Pressure Coolant
Distance Between Centers: 125.0
Electrical: 480/3/60
High Pressure Coolant Psi: 1000.0
Live Milling Max Rpm: 8000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Auto Door
Max Cutting Turning Diameter: 22.4
Max Swing Over Bed: 31.5
Max Turning Cutting Length: 125.0
Programmable Tailstock: false
Rapid Traverse: 944/1181
Second Chuck Size: 12.0
Second Spindle Bore: 4.1
Second Spindle Motor: 20
Second Spindle Nose: A2-8
Second Spindle Speed: 4000
Single Turret: true
Single Turret Live Tooling: true
Spindle Bore: 4.1
Spindle Motor: 40
Spindle Nose: A2-8
Spindle Speed: 3000.0
Steadyrest Type: Pneumatic
Sub Spindle: true
Tailstock: false
Tool Positions: 120.0
Total Spindles: 2
Turret Options: Capto C6
Twin Turret: false
X Travel: 25.0
Y Axis: true
Z Travel: 125.0
