HEINDENHAIN TNC i530M CNC ControlElectric HandwheelAutomatic bi-rotative head index 2.5°/1°Automatic tool changer 60 positions - A.T.C. type with double exchanging armHigh pressure coolant device through spindleN. 4 squares + Stolle planChain type chip conveyorMobile Operator CabinetCE marksTBA4 BIROTATIVE HEAD:It is composed by two separate parts made in cast iron: The main one is fixed to the platform and rotates jointed with it; The spindle holder rotates around an axis inclined at 45° compared to the platform axis and can reach automatically 120 positions (1 position each 3°).The positioning is obtained through frontal HIRTH toothing.The spindle rotation is obtained by two couples of taper spiral gears concreted, hardened and run in as well.Ther lubrication system is timed with a special grease.The head is kept at a constant temperature by the circulation of the fluid (a mix of water and glycol) through the conditioning group.This head is set for a double device for the distribution of the coolant both through and around the spindle.With this head, the machine can be equipped with automatic tool changer. Main features: Spindle speed: 15 - 4,000 rpm Spindle speed with constant torque: 15 - 370 rpm Spindle speed with constant power: 370 - 4,000 rpm Torque: 780 Nm Positioning precision: ± 0.02 / 300 mm Tool Shank: 50 ISO 7388/1 - (DIN 69871-A) Tool clamping system: automatic Tool clamping force: 20,000 N Axial tool clamping: 100,000 NPL15 – WORKING TABLE:Working table in cast iron realized as per customer’s requirement and installed in front of it.The table will be connected to the foundation plan trough anchoring devices, leveling pads, and lateral setting.The table is equipped with T-slots for reference and the bracketing of the parts. Main features: Table size 12,000 x 2,500 mm T-slot width 22 mm (H7) lT slot lenght 22 mm (H11) T-slot distance 250 mm Table Thickness 300 mm MACHINE COMPLETE WITH: Remoted electric handwheel Automatic bi-rotative head with index 1°/3° with HIRTH toothing OVERHAULED by EMCO MECOF with preparation for high pressure coolant through spindle 61 positions ATC Programmable adaptabel controller Software SUVT tool life Chain type chip conveyor Coolant device for tool refrigeration around the spindle; Movable platform for te operatorPedana operatore mobile STOLLE square 12000 x 2500 mm max. capacity 15000 Kg/m2 N°4 squares 2500 x 1000 x 1200 mm (weight per each one cad. 2,470 Kg)CNC Control Features:Up to eleven controlled axis + spindle axis;Linear interpolation on 5-AxisCircular interpolation in the coordinated plans;Helical interpolation;Metrical or Imperial programming;Programming resolution: 0,0001 mm or 0,00001 inches (0,0001 degrees for the rotative axis);Editor for the introduction and the modification of big dimensions.Hard disk 6 Gb;Graphic check of the program;Radius and length compensation for 254 tools;Remote controller HR410 with buttons for axis management and electric handwheel;Cycles for deep drilling, threading, milling and grooving;Cycles for emptying and contouring of regular pockets, circular and any profile;

Specifications

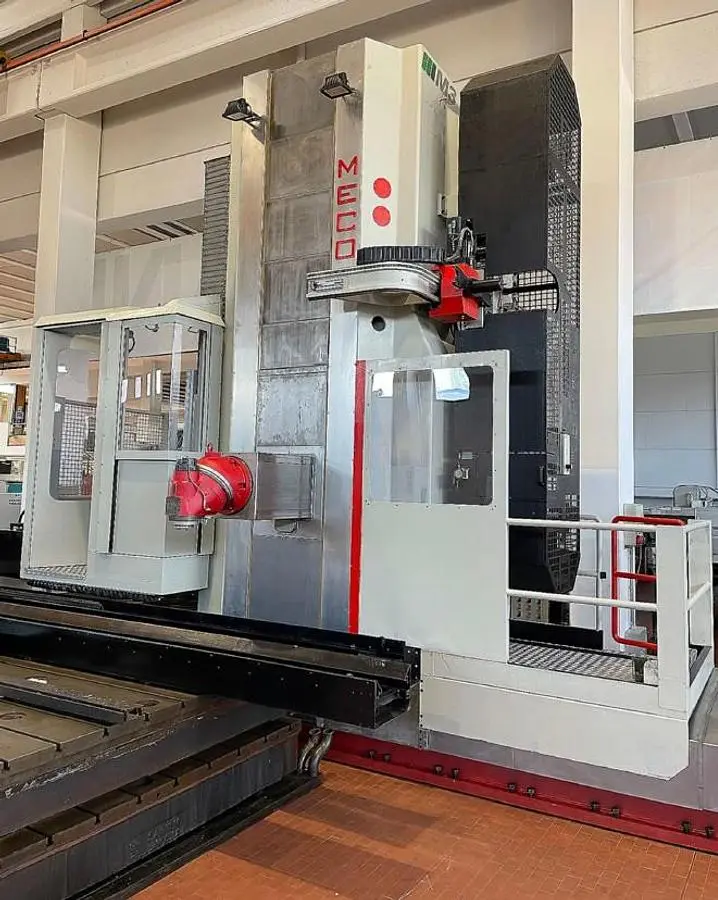

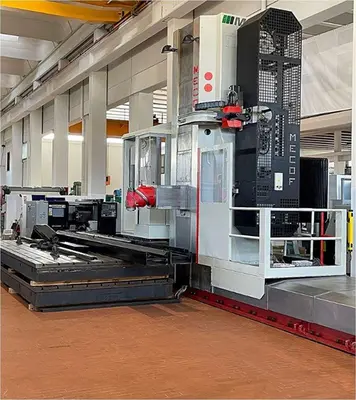

Manufacturer: Mecof
Model: AGILE M3
Year: 2002
Condition: Used
Stock Number: 5654333
Spindle speeds: 4,000 rpm
X axis (longitudinal) travel: 12,000 mm
Y axis (transversal) travel: 1,500 mm
Z axis (vertical) travel: 2,800 mm
Spindle motor power: 30 kW
Spindle taper: ISO 50
Power supply: 400 V (±5%), 50 Hz (±1%)
