USED 1991 VERSON PRESS S4-1000-144-90T
Overview
Description

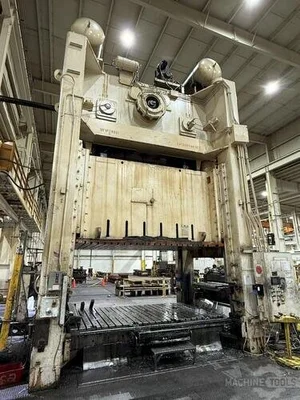

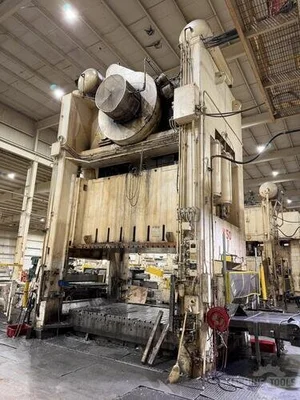

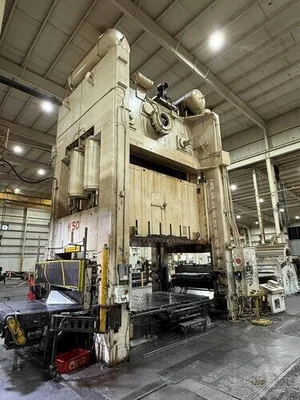

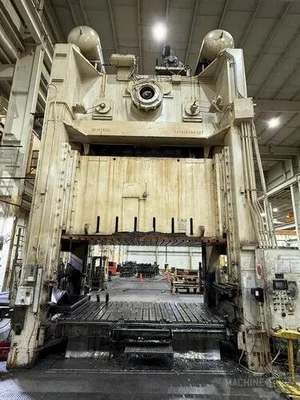

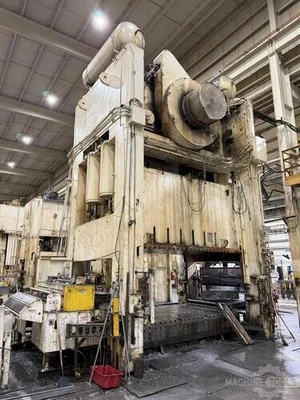

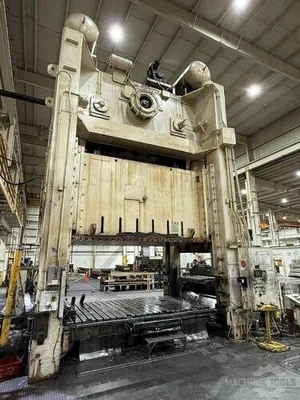

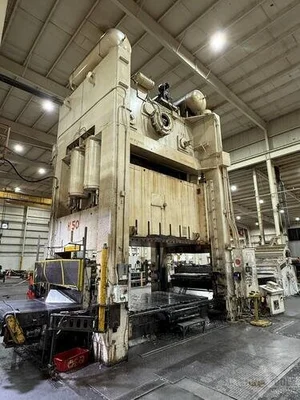

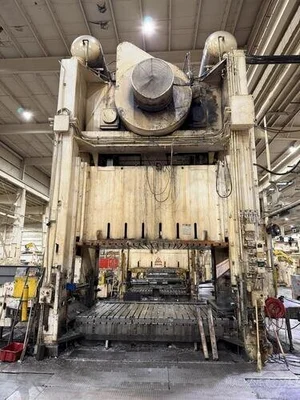

1000-ton Verson S4-1000-144-90T Straight Side Press - Used, Double Crank Stamping Press For Sale
Specifications
Tonnage: 1000
Stroke: 24 inches
Shut Height: 70 inches
Adjustment: 24 inches
Bed Size: 144" x 90"
Ram Area: 144" x 90"
SPM: 10-20
Elevate your heavy-duty production with this 1000-ton Verson S4-1000-144-90T, a high-performance straight side double crank mechanical press. Engineered for the most demanding metal stamping and deep draw applications, this four-point press features a massive 144" x 84" bed area, providing the stability and precision required for large-scale automotive stamping and industrial metalforming.
Technical Specifications
Model: Verson S4-1000-144-90T (Straight Side)
Capacity: 1000 Tons
Stroke: 24"
Shut Height: 70"
Motorized Adjustment: 24"
Bed Area: 144" LR x 90" FB
Slide Area: 144" LR x 90" FB
Speed: 13–26 (Variable Speed)
Premium Features & Equipment
Air Clutch and BrakeAir CounterbalancesRecirculating Lube System8 Point GibbingT-Slotted Ram and Bolster20" Thick Rolling BolsterHydraulic Tie Rod NutsHydraulic Overloads96" Wide WindowsWintriss Programmable OutputsWintriss Smart Pac 2 press ControlVariable Speed DriveMain Motor: 200 HP DC Variable Speed MotorMotors and Controls
Don't miss the opportunity to see this used Verson press in action. Click below to view the press running in a live plant environment.Maximize your heavy-gauge production with this 1000-ton Verson S4-1000-144-90T, a premier straight side double crank mechanical press. Engineered for large-scale automotive stamping and deep-draw metalforming, this four-point press features a massive 144" x 90" bed area and a versatile 24" stroke. High-performance specs include Wintriss Smart Pac 2 controls, 8-point gibbing, and a 20" thick rolling bolster for rapid tool changes. Driven by a 200 HP DC motor, this variable-speed powerhouse (13–26 SPM) includes hydraulic overloads and tie rod nuts for ultimate reliability. Click below to see this 1000-ton Verson press running under power!
Watch the Verson S4-1000-144-84T Video Here
