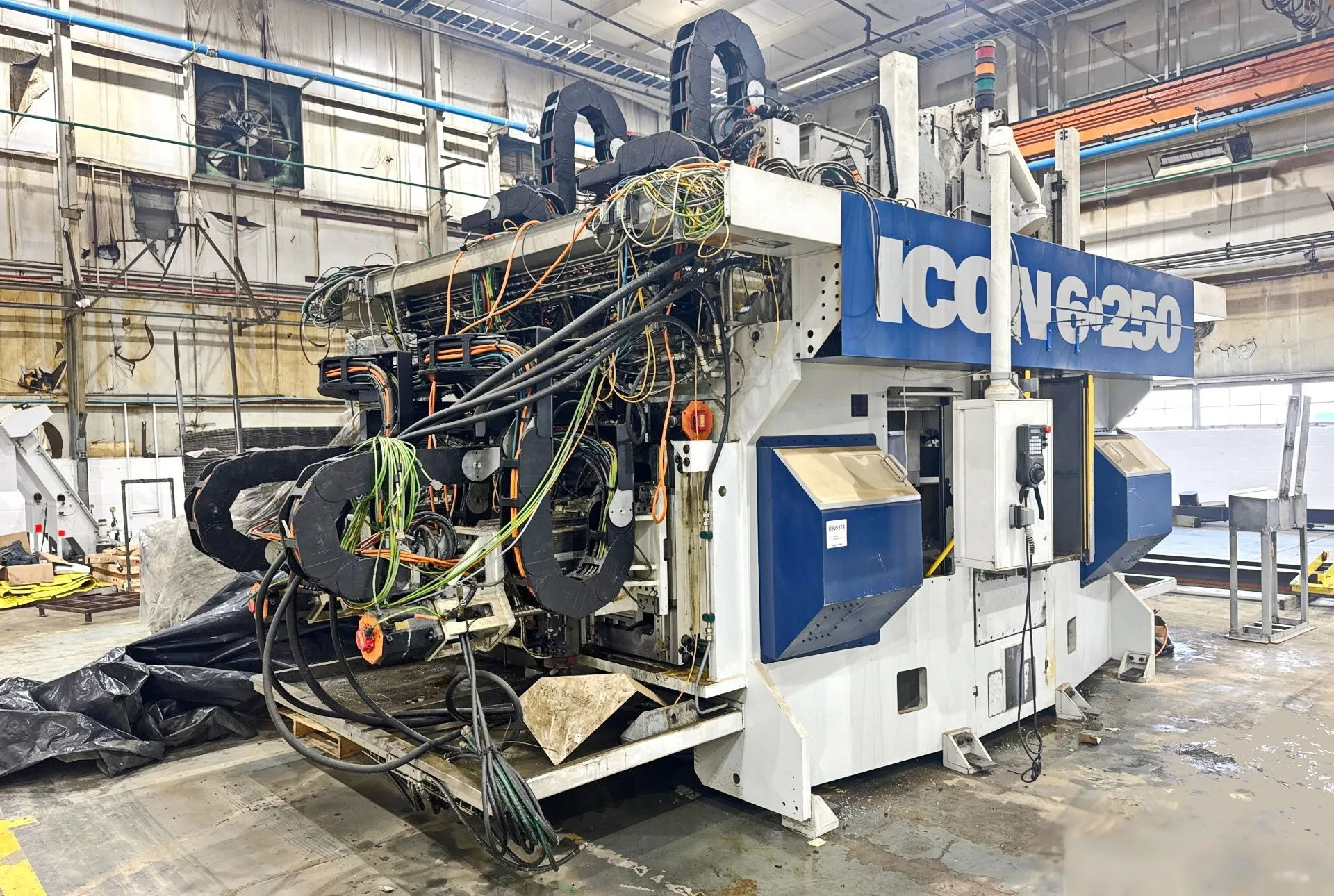

ICON 6-250 CNC Transfer Machine, Multi-Station, Horizontal And Vertical Machining, Dual Opposed Spindles, 6-Station Pallet Transfer System, Simultaneous Multi-Station Machining Capability, Integrated Indexing Drives, Coolant Filtration
| Machining Modules | Up To 8 | Up To 8 |
| Stations | 6 | 6 |
| X-Axis | 11.8" | 299.72 mm |
| Y-Axis | 11.8" | 299.72 mm |
| Z-Axis | 14.8" | 375.92 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| Power | 48 hp | 35.8 kW |
| Taper | HSK-63 | HSK-63 |
| Tool Capacity | 12 Per Module | 12 Per Module |
| Index Positions | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |

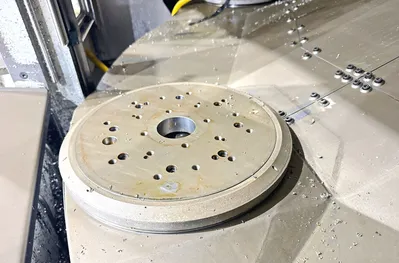

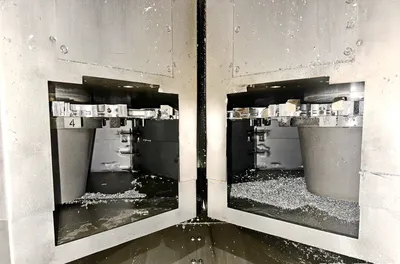

Multi-station pallet transfer system

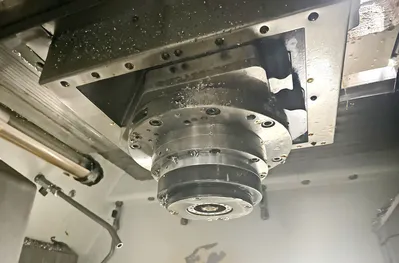

Horizontal & vertical machining modules

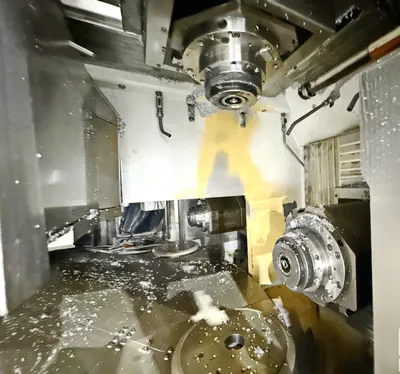

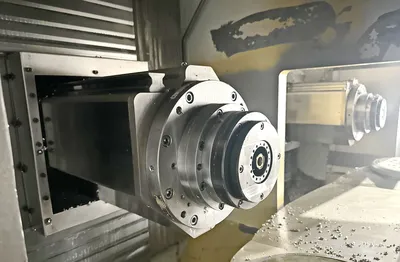

Dual opposed horizontal machining stations
Simultaneous multi-station machining capability
Integrated indexing drives
Direct connection automatic tool changers
HSK63 tooling interface
Servo-driven linear axes

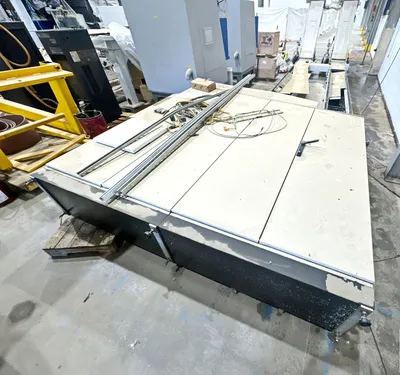

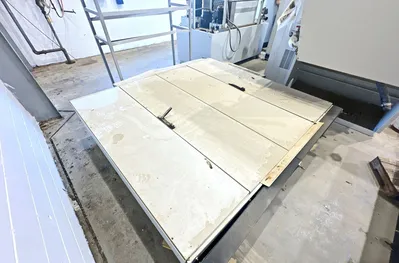

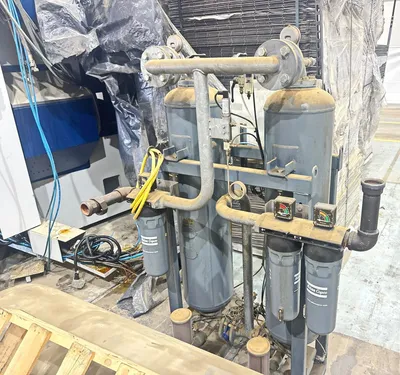

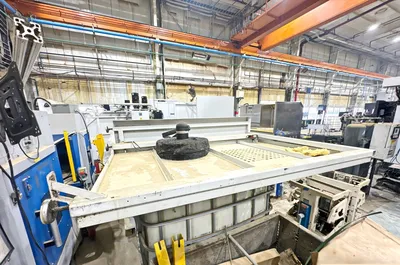

Coolant filtration & tank system

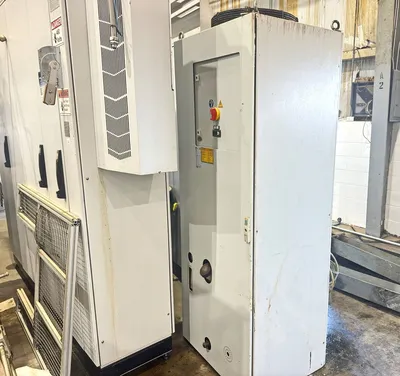

Electrical cabinet

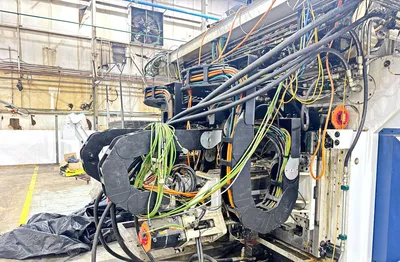

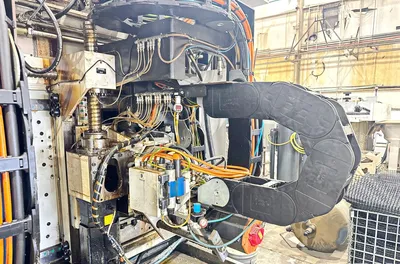

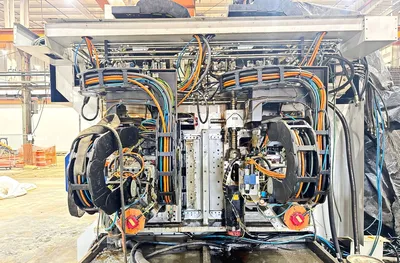

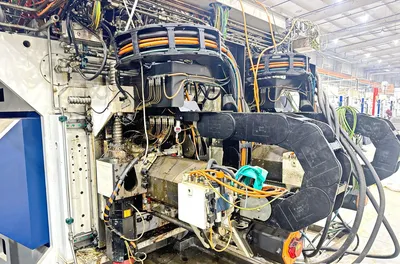

Cable carrier systems
