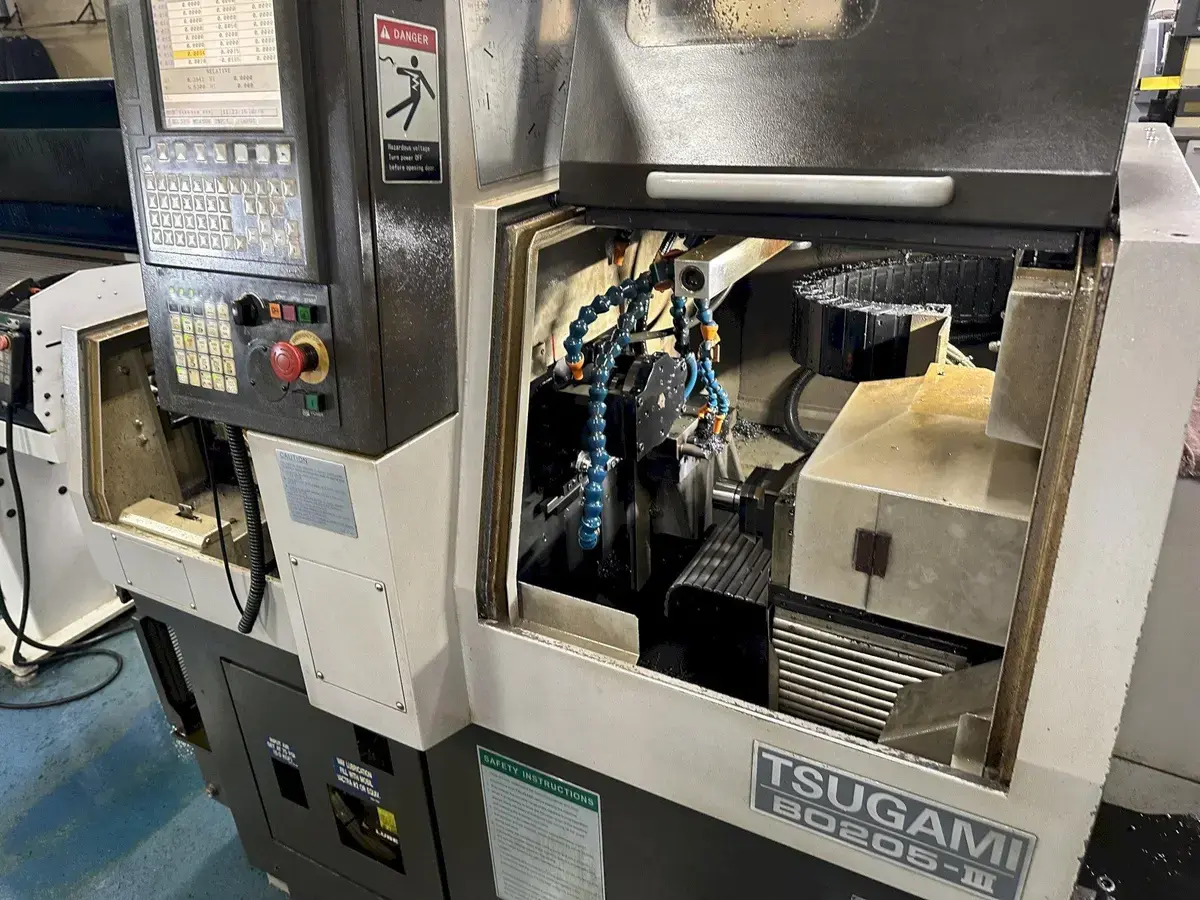

USED 2018 TSUGAMI BO205-III

TSUGAMI BO205-III CNC Swiss Lathe, New in 2018 - 4 Available.
Edge Technologies Minuteman 320 SE Barfeed.
Fanuc Oi-TF
LNS Chip Conveyor

Bar Capacity: 0.79"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Max Turning Length: 8.26"
Max. Main Spindle Drilling Diameter: 0.39"
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 0.79"
Max. Back Spindle Drilling Diameter: 0.31"
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: 0.275"/ER11 and 0.393"/ER16
Max. Cross Tapping Diameter M5 x 0.8"
Max. Tool Spindle Slotting Cutter Diameter: 1.18"
Max. Back Live Drilling Diameter: 0.236"
Max. Back Live Tapping Diameter: M5
Main Spindle Speed 200 to 10,000 min-1
Back Spindle Speed 200 to 12,000 min-1
Rotary Guide Bushing Speed 200 to 10,000 min-1: Direct-drive rotary guide bushing
Direct-drive rotary guide bushing
Live Tool Speed 200 to 8,000 min-1
Total Tool Storage Capacity 21
Tool Size .5 in. x .5 in. square, 20 mm round
Rapid Traverse Rate 32 m/min (105 ft/min)
[(X1/Y1: 24 m/min (78.74 ft/min)] Y2: 15m/min (49 ft/min)
Controlled Axes (linear axes) 5-Axis
Main Spindle 3/5 Hp (2.2/3.7 kW)
Back Spindle 2/3 Hp (1.5/2.2kW)
Axis 0.7 Hp (0.5 kW) - X1,X2,Y1,Z1,Z2
Cross Dill 1 Hp (0.75 kW)
Coolant Pump 0.4 Hp (0.25 kW)
Lubricating Oil Pump 3 W
Power Source Requirement 12 kVA
Compressed Air Requirement 0.4 Mpa or above
Air Discharge Rate 50 NL/min
Coolant Tank Capacity 180 L
Dimensions: 65.16" x 44.29" x 66.93"
Weight: 4,410 LBS

Live Tooling
Sub Spindle
5 Axis
Fanuc CNC Control
Edge minuteman 320 SE 12' barfeeder
Chip Conveyor
